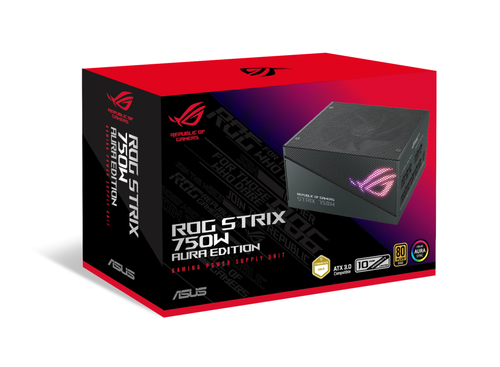

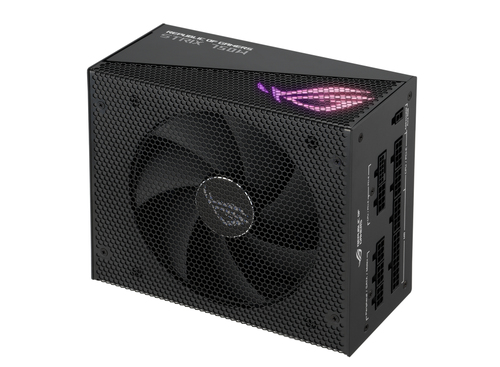

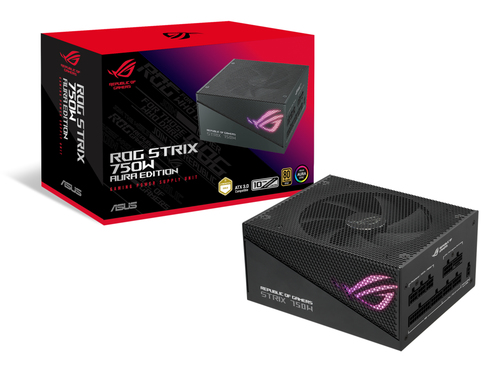

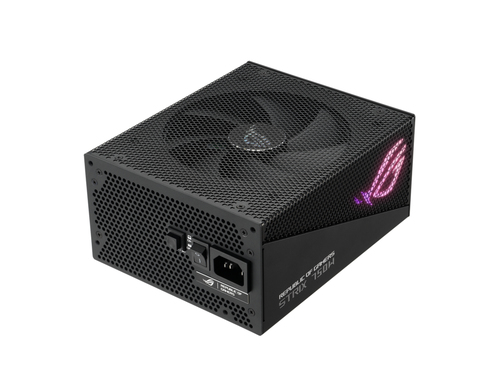

ROG STRIX 750W Gold Aura Edition power supply unit 20+4 pin ATX ATX Black
- 750 W 100 - 240 V
- Motherboard power connector: 20+4 pin ATX
- PC ATX 80 PLUS Gold
- Active
- Black
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
ROG Strix Gold Aura Edition
Exude Power
The ROG Strix 750W Gold Aura combines premium components, superior cooling and captivating RGB illumination to create a formidable force. With huge ROG heatsinks, a high-efficiency Axial-tech fan, and a striking aluminum finish, it’s a pumped-and-primed PSU powerhouse for your next gaming rig.
Aluminum Case
Built to run cool
The ROG Strix 750W Gold Aura Edition is encased in a strong, sleek aluminum chassis that also acts as a heatsink for the internal power transformer, further helping to reduce temperatures and minimize noise.
80 Plus Gold Certification
Heart of gold
Top-end Japanese capacitors ensure efficient operation and have helped the ROG Strix Aura Edition PSUs earn an 80 PLUS Gold certification. The increased efficiency also results in less heat, reducing noise and increasing reliability.
Aura Sync
Outshine the competition
Addressable RGB lighting is built right in to the ROG Strix 750W Gold Aura Edition, so it’s all set to integrate with the Aura Sync illumination ecosystem – adding aesthetic style to raw power.
*If the connector cable is not used, the default color effect is rainbow.
*To enjoy Aura Sync, you’ll need an Aura Sync-compatible ASUS or ROG motherboard. Similarly, the Smart Mode lighting effect, which reflects GPU temperature, requires use of a compatible ASUS or ROG graphics card.
Specifications
Power
- Total power
- 750 W
- AC input voltage
- 100 - 240 V
- Combined power (+3.3V)
- 120 W
- Combined power (+12V)
- 750 W
- Combined power (+5V)
- 120 W
- Combined power (-12V)
- 3.6 W
- Combined power (+5Vsb)
- 15 W
- Max output current (+3.3V)
- 22 A
- Max output current (+12V)
- 62.5 A
- Max output current (+5V)
- 22 A
- Max output current (-12V)
- 0.3 A
- Max output current (+5Vsb)
- 3 A
- Power protection features
- Over current, Over power, Over voltage, Short circuit, Under voltage
Ports & interfaces
- Motherboard power connector
- 20+4 pin ATX
- Motherboard power cable length
- 60 cm
- Number of SATA power connectors
- 5
- SATA power cable length
- 400,120 mm
- Peripheral (Molex) power connectors (4-pin)
- 4
- Peripheral (Molex) power cable length
- 400,150 mm
- PCI Express power connectors (8-pin)
- 3
- PCI Express power connectors (16-pin)
- 1
- PCI Express power cable length
- 70 cm
- CPU power connector (4+4 pin)
- Yes
- CPU power cable length
- 65 cm
- Cabling type
- Fully-Modular
Performance
- 80 PLUS certification
- 80 PLUS Gold
- Purpose
- PC
- Power supply unit (PSU) form factor
- ATX
- ATX version
- 3.0
- Silent mode
- Yes
Design
- Product colour
- Black
- Cooling type
- Active
- Number of fans
- 1 fan(s)
- Fan location
- Top
- Illumination
- Yes
Packaging content
- Cables included
- CPU, PCIe, SATA, Peripheral (Molex)
Certificates
- Compliance certificates
- RoHS
Weight & dimensions
- Width
- 180 mm
- Depth
- 150 mm
- Height
- 86 mm
- Weight
- 2.69 kg
