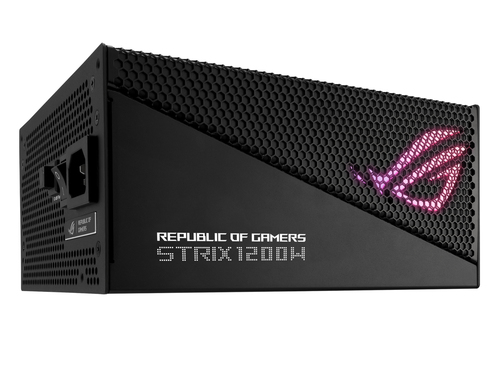

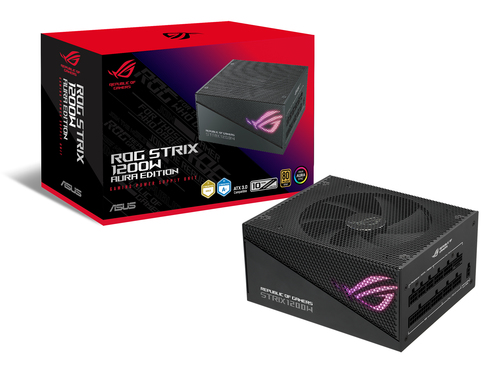

ROG -STRIX-1200G-AURA-GAMING power supply unit 1200 W 20+4 pin ATX ATX Black

Part # ROG-STRIX-1200G-AURA-GAMIUPC 1955539735648.3 lb

1200 W 100 - 240 V
Motherboard power connector: 20+4 pin ATX
PC ATX 80 PLUS Gold
Active
Black

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

COOLING

Aluminum Case

Built to run cool

The ROG Strix 1200W Gold Aura Edition is encased in a strong, sleek aluminum chassis that also acts as a heatsink for the internal power transformer, further helping to reduce temperatures and minimize noise.

ROG Heatsinks

Cool under pressure

ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.

Axial-tech Fan Design

Better, faster, stronger

Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For ROG Strix Aura Edition PSUs, we've scaled that design to 135mm so it keeps things cool at low RPMs while producing less noise.

Dual Ball Fan Bearings

2x longer lifespan

The fan impeller spins on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.

0dB Technology

Quiet intelligence

To reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 50% or below.

ENGINEERING

80 Plus Gold Certification

Heart of gold

Top-end Japanese capacitors ensure efficient operation and have helped the ROG Strix Aura Edition PSUs earn an 80 PLUS Gold certification. The increased efficiency also results in less heat, reducing noise and increasing reliability.

ATX 3.0 Compatible

Step into the future

The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ROG Strix Aura Edition steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, readying your build for the next-gen.

EXPERIENCE

Aura Sync

Outshine the competition

Addressable RGB lighting is built right in to the ROG Strix 1200W Gold Aura Edition, so it’s all set to integrate with the Aura Sync illumination ecosystem – adding aesthetic style to raw power.

10-year Warranty

A decade of power

We're so confident about the reliability of the ROG Strix 1200W Gold Aura Edition that we back it with a 10-year warranty.

Specifications

Power

Total power: 1200 W
AC input voltage: 100 - 240 V
Combined power (+3.3V): 120 W
Combined power (+12V): 1200 W
Combined power (+5V): 120 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 22 A
Max output current (+12V): 100 A
Max output current (+5V): 22 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Power protection features: Over current, Over power, Over voltage, Short circuit, Under voltage
