APCUninterruptible Power Supplies (UPSs)

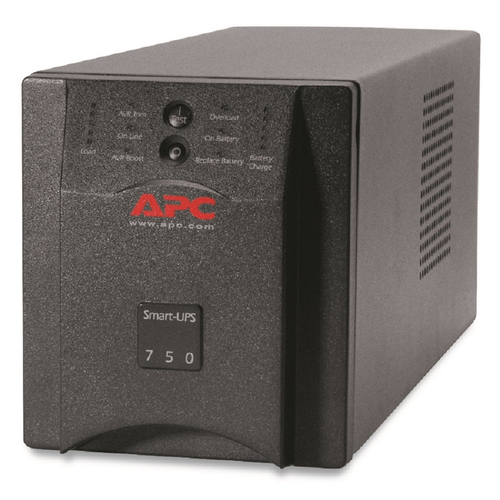

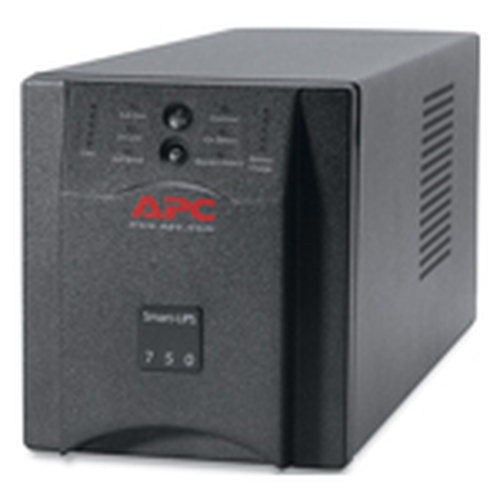

Smart UPS 750VA 230V USB with UL approval
- Line-Interactive
- 0.75 kVA 500 W
- Waveform: Sine
- Black
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
"Intelligent and efficient power protection enabling multi-regional deployment."
Specifications
Features
- UPS topology
- Line-Interactive
- Output power capacity
- 0.75 kVA
- Output power
- 500 W
- Waveform
- Sine
- Input frequency
- 50/60 Hz
- Surge energy rating
- 340 J
- Audible alarm(s)
- Yes
Ports & interfaces
- AC outlet types
- IEC 60320
Battery
- Battery replacement accessibility
- End-user
- Typical backup time at full load
- 4.8 min
- Typical backup time at half load
- 16.4 min
- Battery recharge time
- 3 h
- Hot-swap battery
- Yes
- Replacement battery cartridge
- RBC48
Design
- Product colour
- Black
- LED indicators
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
Technical details
- Sustainable packaging
- No
- Packaging recycled materials
- Recycled cardboard
- SCIP number
- b2b22a56-41f2-497e-9ea6-cf093b3b8bd3
- Proposition 65
- Yes
- Preferred mounting position
- no preference
- Take-back system
- No
- Packaging without single use plastic
- No
Certificates
- Waste Electrical and Electronic Equipment (WEEE) compliance
- Yes
- Compliance certificates
- RoHS, REACH, WEEE
- Certification
- CE
Weight & dimensions
- Width
- 137 mm
- Depth
- 358 mm
- Height
- 157 mm
- Weight
- 13.2 kg
Packaging data
- Package weight
- 14.6 kg
Logistics data
- Customs product code (TARIC)
- 8504409590
- Harmonized System (HS) code
- 85078000
- Total carbon footprint (kg of CO2e)
- 708.9040745776
- Country of origin
- Philippines
Other features

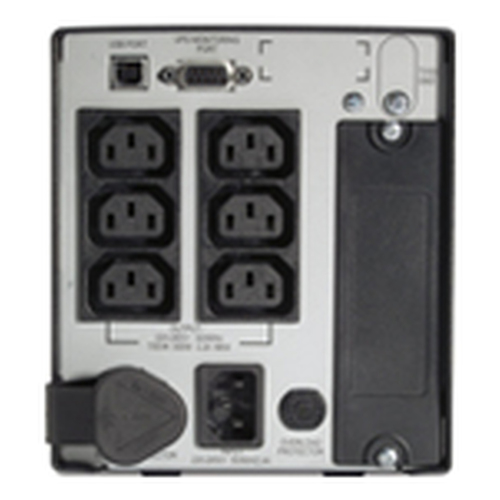

- Output connections
- 6 x IEC 320 C13 1 x IEC Jumpers
- Input connection type
- IEC 320 C14
- Dimensions (WxDxH)
- 137 x 358 x 157 mm
- Nominal output voltage
- 230 V
- Nominal input voltage
- 230 V
- Output connection type
- 6 IEC 320C13; 2 IEC Jumpers
- Output voltage
- 230 V
- Voltage
- 230 V
- Package dimensions (WxDxH)
- 270 x 500 x 290 mm
