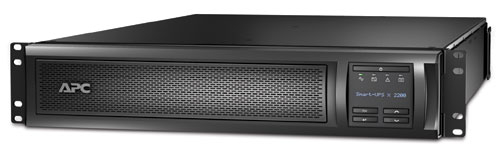

Smart-UPS X 2200VA Rack/Tower LCD 100-127V

High frequency design

Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.

Auto recognition of external batteries

UPS recognizes when external battery packs are attached and automatically adjusts runtime.

Predictive replace battery date

Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.

Green mode

Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

Energy meter

Provides actual kilowatt hours of usage for energy conscious users.

Outlet group control

Turn on/off, reboot or shut down select outlet groups to save dispatching technicians to remote locations (for UPSs with switched outlet groups).

Sequenced shutdown and restart

Configure select outlet groups to shut down and turn on in a pre-determined order (for UPSs with switched outlet groups).

Load shedding

Turn off select outlet groups in a pre-determined sequence to shed less critical equipment and conserve runtime (UPSs with switched outlet groups).

Pure sine wave output on battery

Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

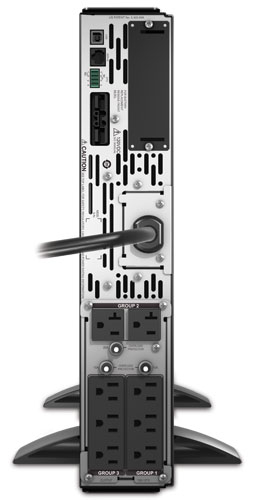

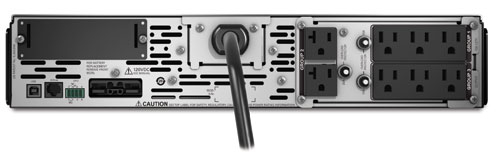

Multiple switched outlet groups

Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.

Wide input voltage range

Designed for harsh electrical environments to save battery life.

StruxureWare Central compatible

Enables centralized management via StruxureWare Central.

Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance

High online efficiency Reduces utlility costs, generates less heat.

LED Indicators
