APCUninterruptible Power Supplies (UPSs)

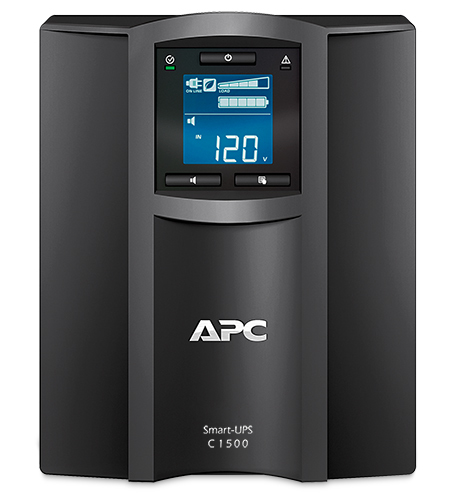

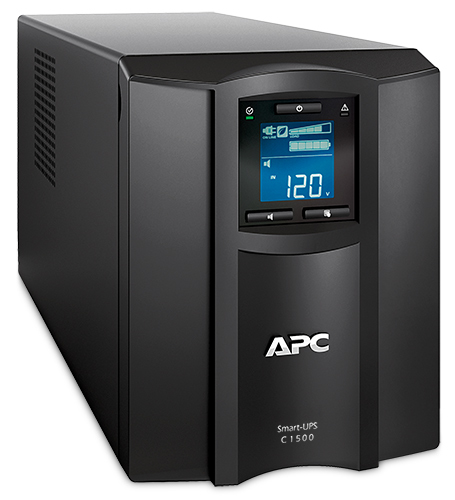

Smart-UPS C 1500VA LCD 120V with SmartConnect
- Cold-start capable
- Green mode
- High online efficiency
- LCD Status Display
- Pure sine wave output on battery
- Temperature-compensated battery charging
In stockPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Specifications
Features
- UPS topology
- Line-Interactive
- Output power capacity
- 1.44 kVA
- Output power
- 900 W
- Waveform
- Sine
- Input operation voltage (min)
- 85 V
- Input operation voltage (max)
- 136 V
- Input frequency
- 50/60 Hz
- Output operation voltage (min)
- 110 V
- Output operation voltage (max)
- 127 V
- Output frequency
- 50/60 Hz
- Surge energy rating
- 680 J
- Hold time (min)
- 6 ms
- Hold time (max)
- 10 ms
- Output voltage Total Harmonic Distortion (THD)
- 5%
- EMI/RFI noise filtering
- Yes
- Noise level
- 45 dB
- Surge protection
- Yes
- Audible alarm(s)
- Yes
- Audible alarm modes
- Low battery alarm
- Auto-restart
- Yes
Ports & interfaces
- AC outlet types
- NEMA 5-15R
- Power plug
- NEMA 5-15P
- AC outlets quantity
- 8 AC outlet(s)
- USB port
- Yes
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery life (max)
- 5 year(s)
- Battery recharge time
- 3 h
- Hot-swap battery
- Yes
- Cold start
- Yes
- Replacement battery cartridge
- RBC6
Design
- Form factor
- Tower
- Cable length
- 1.83 m
- Product colour
- Black
- Display type
- LCD
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
Certificates
- Compliance certificates
- RoHS
- Certification
- CSA, CSA C22.2 No. 107.1, ENERGY STAR V1.0 (USA), FCC 15 B, ICES-003, UL 1778
Sustainability
- Sustainability certificates
- ENERGY STAR
Weight & dimensions
- Width
- 171 mm
- Depth
- 439 mm
- Height
- 219 mm
- Weight
- 20.1 kg
Packaging data
- Package width
- 330 mm
- Package depth
- 590 mm
- Package height
- 330 mm
- Package weight
- 22.6 kg
Logistics data
- Products per pallet
- 12 pc(s)
Other features
- Output voltage
- 120 V
