APCUninterruptible Power Supplies (UPSs)

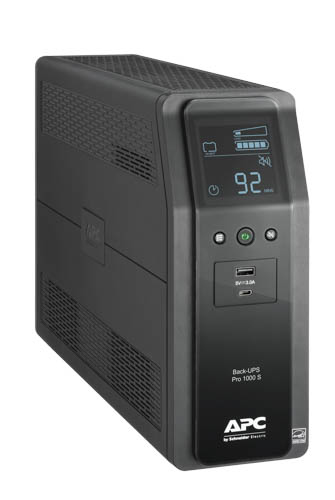

Back UPS PRO BR 1000VA, SineWave, 10 Outlets, 2 USB Charging Ports, AVR, LCD interface
- Alarm notification
- Audible alarms
- Automatic self-test
- Battery replacement without tools
- Boost and Trim Automatic Voltage Regulation (AVR)
- Building Wiring Fault Indicator
In stockPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Back UPS PRO BR 1000VA, SineWave, 10 Outlets, 2 USB Charging Ports, AVR, LCD interface
Specifications
Features
- UPS topology
- Line-Interactive
- Output power capacity
- 1 kVA
- Output power
- 600 W
- Waveform
- Sine
- Input operation voltage (min)
- 88 V
- Input operation voltage (max)
- 147 V
- Input frequency
- 60 Hz
- Output frequency
- 60 Hz
- Automatic Voltage Regulation (AVR)
- Yes
- Maximum current
- 12 A
- Surge energy rating
- 1080 J
- Hold time (min)
- 8 ms
- Hold time (max)
- 10 ms
- EMI/RFI noise filtering
- Yes
- Noise level
- 45 dB
- Surge protection
- Yes
- Surge protection features
- Coax, Network
- Audible alarm(s)
- Yes
- Audible alarm modes
- Low battery alarm, Overload alarm
Ports & interfaces
- AC outlet types
- NEMA 5-15R
- Power plug
- NEMA 5-15P
- AC outlets quantity
- 10 AC outlet(s)
- USB port
- Yes
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery life (max)
- 5 year(s)
- Battery recharge time
- 16 h
- Hot-swap battery
- Yes
- Automatic battery test
- Yes
- Cold start
- Yes
Design
- Form factor
- Tower
- Cable length
- 1.83 m
- Product colour
- Black
- Display type
- LCD
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 3000 m
Certificates
- Compliance certificates
- RoHS
- Certification
- FCC 15 B, NOM, TUV C-US
Packaging content
- Cables included
- USB cable
- Manual
- Yes
Sustainability
- Sustainability certificates
- ENERGY STAR
Weight & dimensions
- Width
- 100 mm
- Depth
- 368 mm
- Height
- 260 mm
- Weight
- 10.2 kg
Packaging data
- Package width
- 223 mm
- Package depth
- 482 mm
- Package height
- 358 mm
- Package weight
- 11.8 kg
Logistics data
- Products per pallet
- 16 pc(s)
- Harmonized System (HS) code
- 85078000
- Master (outer) case gross weight
- 11.8 kg
- Products per master (outer) case
- 1 pc(s)
Other features
- Output voltage
- 120 V
Downloads
