APCUninterruptible Power Supplies (UPSs)

Smart-UPS X 2200VA Short Depth Tower/Rack Convertible LCD 200-240V

Part # SMX2200HVUPC 731304292609Warranty: 3 years140 lb

Line-Interactive
2.2 kVA 1980 W
Waveform: Sine
10 AC outlet(s)
Sealed Lead Acid (VRLA)
Rackmount/Tower Black, Stainless steel

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Stay always online and prevent data loss

As soon as the power fails, an APC Smart-UPS immediately supplies emergency power to all connected equipment. Because an APC UPS does this automatically, you prevent unwanted failure of, for example, a PC, server or switch. With the free APC PowerChute software, you can even have critical IT hardware shut down automatically and in a controlled manner when the UPS battery is almost empty. This prevents data loss, downtime and physical damage to hardware.

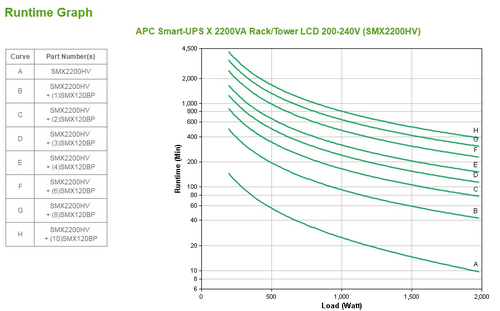

Extend the runtime

You can easily increase the number of minutes that the APC SMX UPS can independently supply emergency power by connecting external battery packs (SMX120BP).

A runtime of several hours is even possible.

Safety

In addition, a Smart-UPS protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for (small) business use.

Network Management Card

If you connect the UPS directly to your network via the optional APC Network Management Card (AP9640/AP9641), it can be easily managed remotely via SNMP or our remote management software Ecostruxure IT Expert (SFTWES1-DIGI). You can also automatically send a shutdown signal via the network to multiple physical and/or virtual servers. By means of the APC PowerChute Network Shutdown Software belonging to the network card, it is even possible to differentiate between the shutdown moment and the order in which this happens.

Easy to use

This APC Smart-UPS SMX is easy to operate thanks to the LCD screen.

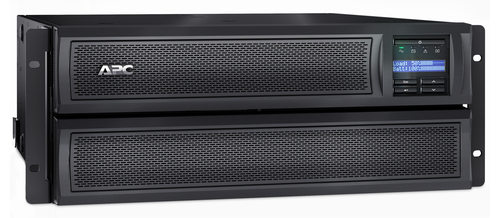

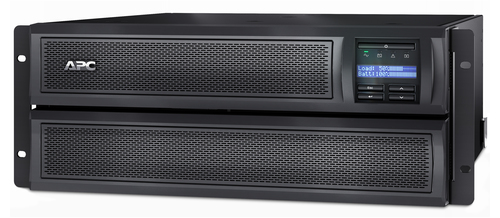

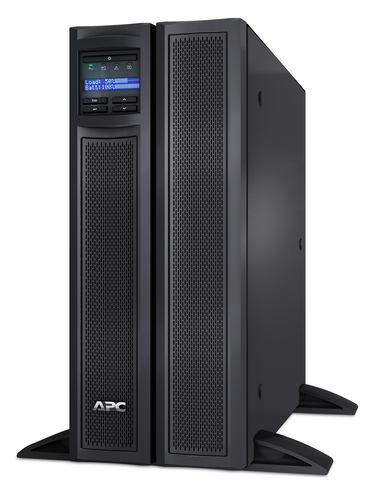

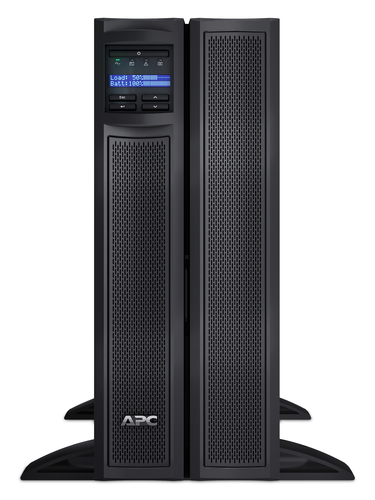

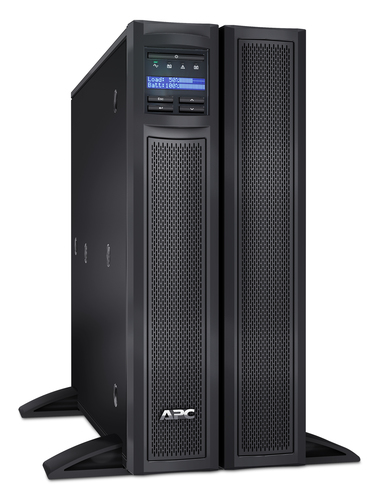

Rack/tower convertible

The APC Smart-UPS SMX is rack/tower convertible. Because both the feet and the front post rack brackets are included, you can mount it in a rack (4U) or place it upright. If you prefer to mount it on all four rack uprights, order the optional SU032A.

Extend the lifespan

The internal battery cartridge (APCRBC143) can be replaced easily, safely and independently by the user. This without having to switch off the APC SMX2200HV or connected equipment. This allows you to easily and cheaply extend the lifespan of the APC Smart-UPS and your equipment will always remain online.

Warranty extension

The factory warranty of the SMX2200HV is 3 years, with the exception of the battery cartridge, which has a factory warranty of 2 years. Both are extended by 3 years to 6 and 5 years respectively with the APC service pack (WBEXTWAR3YR-SP-04).

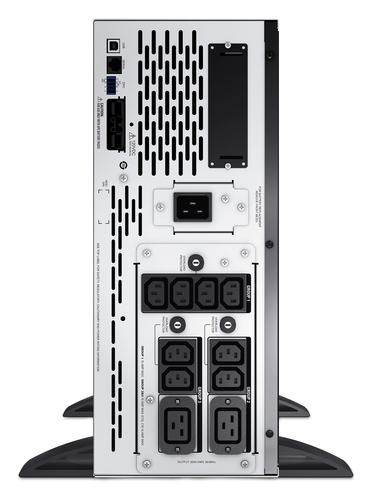

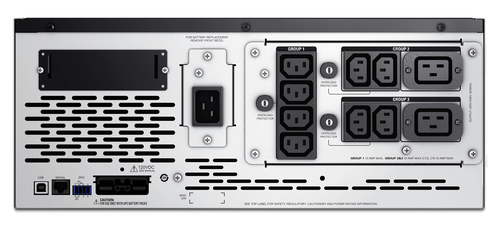

Switched Outlet Groups: Remote reboot and phased start-up

Thanks to the Switched Outlet Groups, it is possible to configure a phased/delayed power-on per UPS outlet group. This reduces the peak load on the UPS and brings it closer to the constant load, which can limit oversizing of the UPS.

It is also possible to reset a group of multiple UPS outlets and the equipment connected to them. If a network card (ap9640) is used in combination with Ecostruxure IT Expert (SFTWES1-DIGI), this can even be done remotely.

You can also switch off non-critical loads; this extends the runtime for critical equipment.

Included in the box

1x SMX2200HV

1x USB cable

2x C13 to C14 power cord 2 meters

1x Schuko to C19 input power cord 2 meters

1x C19 to C20 power cord 2.5 meters

1x Software CD with Powershute Business Edition

1x Documentation CD

1x British BS1363A to C19 input power cord

Specifications

Features

UPS topology: Line-Interactive
Output power capacity: 2.2 kVA
Output power: 1980 W
Waveform: Sine
Input operation voltage (min): 140 V
Input operation voltage (max): 280 V
Input frequency: 50/60 Hz
Output operation voltage (min): 208 V
Output operation voltage (max): 240 V
Output frequency regulation: 50/60 Hz
Automatic Voltage Regulation (AVR): Yes
Surge energy rating: 645 J
Hold time (min): 2 ms
Hold time (max): 10 ms
Efficiency: 98.1%
Emergency Power Off (EPO): Yes
Noise level: 55 dB
Surge protection: Yes
Audible alarm(s): Yes
Auto-restart: Yes

Ports & interfaces

AC outlet types: C13 coupler, C19 coupler
Power plug: C20 coupler
AC outlets quantity: 10 AC outlet(s)
Number of output IEC jumpers: 2
USB port: Yes
SmartSlot: Yes
SmartConnect port: No

Battery

Battery technology: Sealed Lead Acid (VRLA)
Battery capacity: 702 VAh
Typical backup time at full load: 9.8 min
Typical backup time at half load: 25.3 min
Battery life (max): 5 year(s)
Battery recharge time: 3 h
Hot-swap battery: Yes
Automatic battery test: Yes
Cold start: Yes

Design

Form factor: Rackmount/Tower
Rack capacity: 4U
Cable length: 2 m
Product colour: Black, Stainless steel
Display type: LCD
LED indicators: Status, Battery replacement

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -15 - 45 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 15000 m

Certificates

Compliance certificates: RoHS
Certification: CE, CSA, EAC, EN 50091-1, EN 50091-2, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 CL A, IEC 60950, IRAM, RCM, UL 1778, VDE, WEEE, REACH
