APCUninterruptible Power Supplies (UPSs)
Smart-UPS X 2000VA Rack/Tower LCD 100-127V
- 2 kVA 1800 W
- Waveform: Sine
- 10 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Rackmount/Tower Black
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Specifications
Features
- Output power capacity
- 2 kVA
- Output power
- 1800 W
- Waveform
- Sine
- Input operation voltage (min)
- 70 V
- Input operation voltage (max)
- 154 V
- Input frequency
- 50/60 Hz
- Surge energy rating
- 540 J
- Efficiency
- 97.6%
- Emergency Power Off (EPO)
- Yes
- Output voltage Total Harmonic Distortion (THD)
- 5%
- Noise level
- 55 dB
- Audible alarm(s)
- Yes

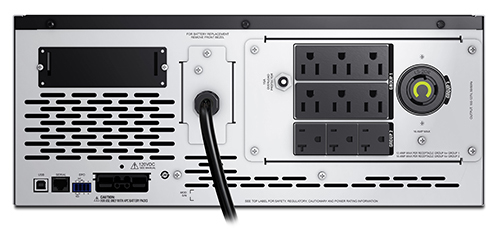

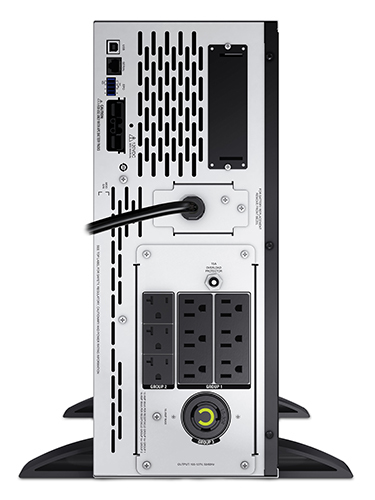

Ports & interfaces
- AC outlet types
- NEMA 5–15R, NEMA 5–20R, NEMA L5-20R
- Power plug
- NEMA 5-20P
- AC outlets quantity
- 10 AC outlet(s)
- USB 2.0 ports quantity
- 1
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Number of batteries supported
- 1
- Battery recharge time
- 3 h
Design
- Form factor
- Rackmount/Tower
- Rack capacity
- 2U
- Cable length
- 2.44 m
- Product colour
- Black
- Display type
- LED
- LED indicators
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
Certificates
- Compliance certificates
- RoHS
- Certification
- UL 1449
Weight & dimensions
- Width
- 178 mm
- Depth
- 483 mm
- Height
- 432 mm
- Weight
- 38.6 kg
Packaging data
- Package weight
- 47.7 kg
Other features
- Nominal output voltage
- 120 V
- Nominal input voltage
- 120 V
- Output connection type
- 6 x NEMA 5-15R & 3 x NEMA 5-20R & 1 x NEMA L5-20R
- Package dimensions (WxDxH)
- 586 x 633 x 330 mm
