Large Lithium* APC Smart-UPS, Lithium-Ion, 3000VA, 120V with SmartConnect Port, Network Card and
- 2880VA/2700W line interactive pure sine wave 2U rackmount UPS
- Ideal for small edge environment, back office, network infrastructure and IDF/MDF closets
- Lithium-ion battery minimizes the need to replace battery during the life time of UPS
- Cloud-based remote power monitoring via SmartConnect Ethernet Port
- 1-Year Secure Network Management Card subscription included
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 2880VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA L5-30 input, 6 NEMA 5-20R and 1 NEMA L5-30R outlets. It has a preinstalled Network Management Card for UPS network-based monitoring and management. It has a preinstalled Network Management Card for UPS network-based monitoring and management. It comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
Specifications
Features
- UPS topology
- Line-Interactive
- Output power capacity
- 3 kVA
- Output power
- 2700 W
- Waveform
- Sine
- Input operation voltage (min)
- 110 V
- Input operation voltage (max)
- 125 V
- Input frequency
- 50/60 Hz
- Output operation voltage (min)
- 110 V
- Output operation voltage (max)
- 125 V
- Output frequency
- 50/60 Hz
- Automatic Voltage Regulation (AVR)
- Yes
- Surge energy rating
- 459 J
- Response time
- 6 ms
- Heat dissipation
- 348 BTU/h
- Number of input phases
- 1
- Number of output phases
- 1
- Crest factor
- 3:1
- Emergency Power Off (EPO)
- Yes
- Output voltage Total Harmonic Distortion (THD)
- 5%
- Noise level
- 55 dB
- Audible alarm(s)
- Yes
- Audible alarm modes
- Alarm when on battery, Low battery alarm
Ports & interfaces
- AC outlet types
- NEMA 5-20R, NEMA L5-30R
- Power plug
- NEMA L5-30P
- AC outlets quantity
- 7 AC outlet(s)
- USB port
- Yes
- Serial interface
- Yes
- SmartSlot
- Yes
- SmartConnect port
- Yes
Battery
- Battery technology
- Lithium-Ion (Li-Ion)
- Number of batteries included
- 1 pc(s)
- Battery life (max)
- 10 year(s)
- Battery recharge time
- 2 h
- Hot-swap battery
- Yes
- Replacement battery cartridge
- APCRBC174-LI
Design
- Form factor
- Rackmount
- Rack capacity
- 2U
- Cable length
- 2.4384 m
- Product colour
- Black
- Display type
- LCD
- International Protection (IP) code
- IP20
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3048 m
- Non-operating altitude
- 0 - 7620 m
Certificates
- Compliance certificates
- RoHS
- Certification
- CSA C22.2 NO. 107.3, FCC Part 15 Class A, NOM, UL 1778, UL 1973
Packaging content
- Batteries included
- Yes
- Rack mount kit
- Yes
- Cables included
- USB cable
Weight & dimensions
- Width
- 432 mm
- Depth
- 683 mm
- Height
- 86 mm
- Weight
- 34.2 kg
Packaging data
- Package width
- 980 mm
- Package depth
- 620 mm
- Package height
- 254 mm
- Package weight
- 42.7 kg
Downloads
More in 1100-1500 VA
APC6.46" (164 mm) Width x 8.50" (216 mm) Depth x 5.59" (142 mm) Height - SMTL2USF
EatonEaton 5P 1500 Tower5P1500

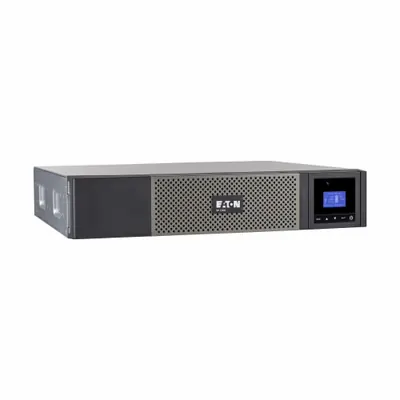

Eaton5P 1500VA Short RACK2U5P1500RC

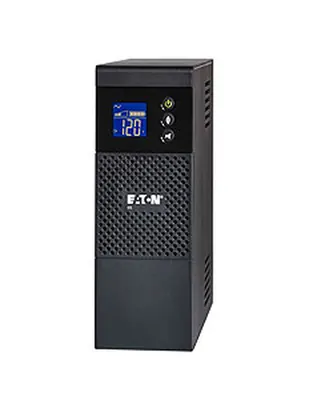

EatonEaton 5S UPS 1000VA 600 Watt 15S1000LCD

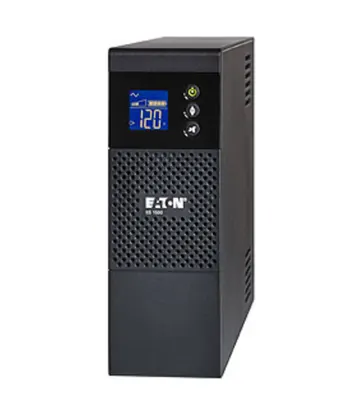

EatonEaton 5S UPS 1500VA 900 Watt 15S1500LCD
EatonNEMA 5-20P - 10 x NEMA 5-20R - 120 V AC - 1920 W - Network (RJ-45) - 1EATS120

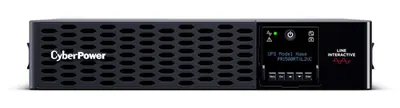

CyberPower2U 8xNEMA 5-15R 10' Cord CloudPR1500RTXL2UC

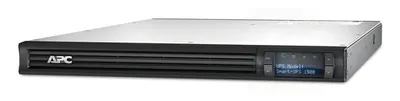

APCAPC award-winning Smart-UPS is the most popular UPS in the world for sSMT1500RM1UC
