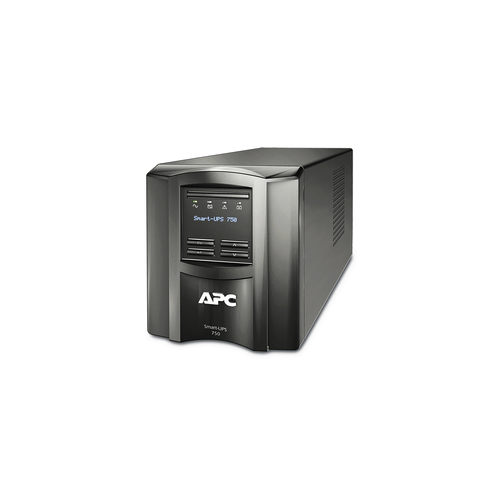

Smart-UPS, Line Interactive, 750VA, Tower, 230V, 6x IEC C13 outlets, SmartSlot, AVR, LCD
- 750VA/500W line interactive pure sine wave tower UPS
- Ideal for servers, storage, network closets, business VoIP & desktops, retail POS
- Automatic Voltage Regulation helps correct utility voltage
- Graceful shutdown using serial or USB cables via PowerChute Business Edition
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 750VA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input, 6x IEC 320 C13 outlets, and 2x IEC jumper cables. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
Specifications
Features
- UPS topology
- Line-Interactive
- Output power capacity
- 0.75 kVA
- Output power
- 500 W
- Waveform
- Sine
- Input operation voltage (min)
- 151 V
- Input operation voltage (max)
- 302 V
- Input frequency
- 50/60 Hz
- Output operation voltage (min)
- 220 V
- Output operation voltage (max)
- 240 V
- Output frequency regulation
- 47 - 53, 57 - 63 Hz
- Surge energy rating
- 540 J
- Output voltage Total Harmonic Distortion (THD)
- 5%
- Noise level
- 40 dB
- Audible alarm(s)
- Yes
- Audible alarm modes
- Low battery alarm

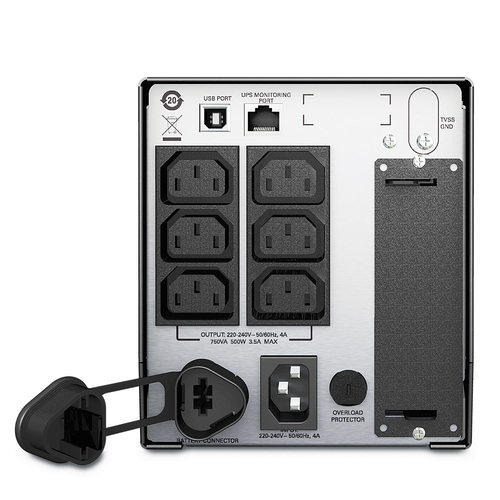

Ports & interfaces
- AC outlet types
- C13 coupler, IEC Jumpers
- Power plug
- C14 coupler
- AC outlets quantity
- 8 AC outlet(s)
- Number of output IEC jumpers
- 2
- USB port
- Yes
- SmartSlot
- Yes
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Number of batteries supported
- 1
- Battery recharge time
- 3 h
- Replacement battery cartridge
- RBC48
Design
- Form factor
- Mini Tower
- Cable length
- 1.83 m
- Product colour
- Black
- Display type
- LCD
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
Certificates
- Compliance certificates
- RoHS
- Certification
- CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH
Packaging content
- Cables included
- RS-232, USB cable
Sustainability
- Sustainability certificates
- Green Premium
Weight & dimensions
- Width
- 138 mm
- Depth
- 359 mm
- Height
- 158 mm
- Weight
- 13.2 kg
Packaging data
- Resource CD
- Yes
- Software CD
- Yes
- Package width
- 278 mm
- Package depth
- 499 mm
- Package height
- 301 mm
- Package weight
- 14.2 kg
Logistics data
- Harmonized System (HS) code
- 85078000
- Total carbon footprint (kg of CO2e)
- 659.22
