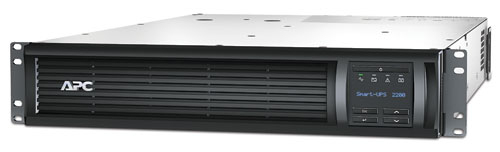

Smart-UPS 2200VA uninterruptible power supply (UPS) 2.2 kVA 1980 W 8 AC outlet(s)
- 2.2 kVA 1980 W
- 8 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Rackmount Black
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Sequenced shutdown and restart
Configure select outlet groups to shut down and turn on in a pre-determined order (for UPSs with switched outlet groups).
InfraStruXure Central compatible
Enables centralized management via APC InfraStruXure® Central.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
High online efficiency
Reduces utlility costs, generates less heat.
SmartSlot
Customize UPS capabilities with management cards.
Cold-start capable
Provides temporary battery power when the utility power is out.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Specifications
Features
- Output power capacity
- 2.2 kVA
- Output power
- 1980 W
- Input frequency
- 50/60 Hz
- Surge energy rating
- 530 J
- Efficiency
- 98%
- Noise level
- 55 dB
- Audible alarm(s)
- Yes
Ports & interfaces
- AC outlet types
- NEMA 5–15R, NEMA 5–20R
- AC outlets quantity
- 8 AC outlet(s)
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery recharge time
- 3 h
Design
- Form factor
- Rackmount
- Rack capacity
- 2U
- Cable length
- 2.44 m
- Product colour
- Black
- LED indicators
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
Certificates
- Compliance certificates
- RoHS
- Certification
- CSA,FCC 15 A,UL 1778
Weight & dimensions
- Width
- 480 mm
- Depth
- 683 mm
- Height
- 86 mm
- Weight
- 42.3 kg
Packaging data
- Package weight
- 49.7 kg
Other features
- Battery type
- RBC43
- Interface
- USB
- Nominal output voltage
- 120 V
- Nominal input voltage
- 120 V
- Package dimensions (WxDxH)
- 600 x 980 x 254 mm
