Home/Catalogue/APC/SMT1500RMJ2U
Drag to turn · 3 views
Smartups 1500VA LCD RM 2U 100V
- 1.5 kVA 1200 W
- 6 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Rackmount Black
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

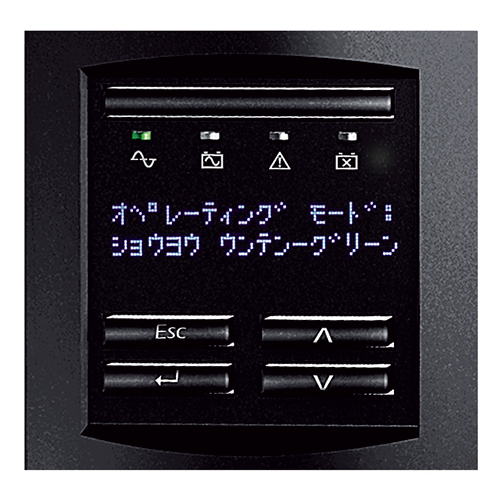

- Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Provides actual kilowatt hours of usage for energy conscious users.
- Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Reduces utlility costs, generates less heat.
- Customize UPS capabilities with management cards.
- Prolongs battery life by regulating the charge voltage according to battery temperature.
Specifications
Features
- Output power capacity
- 1.5 kVA
- Output power
- 1200 W
- Input operation voltage (min)
- 100 V
- Input operation voltage (max)
- 100 V
- Input frequency
- 50/60 Hz
- Output operation voltage (min)
- 100 V
- Output operation voltage (max)
- 100 V
- Maximum current
- 12 A
- Surge energy rating
- 540 J
- Efficiency
- 97.6%
- Output voltage Total Harmonic Distortion (THD)
- 7%
- EMI/RFI noise filtering
- Yes
- Noise level
- 46 dB
- Surge protection
- Yes
- Audible alarm(s)
- Yes
Ports & interfaces
- AC outlet types
- NEMA 5–15R
- Power plug
- NEMA 5-15P
- AC outlets quantity
- 6 AC outlet(s)
- USB 2.0 ports quantity
- 1
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery recharge time
- 4 h
Design
- Form factor
- Rackmount
- Rack capacity
- 2U
- Cable length
- 2.44 m
- Cooling type
- Active
- Built-in fan
- Yes
- Product colour
- Black
- Display type
- LCD
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
Certificates
- Compliance certificates
- RoHS
- Certification
- REACH, RoHS, UL 1778, VCCI A
Weight & dimensions
- Width
- 432 mm
- Depth
- 468 mm
- Height
- 86 mm
- Weight
- 27.8 kg
Packaging data
- Package weight
- 33 kg
Other features
- Battery type
- APCRBC133
- Package dimensions (WxDxH)
- 594 x 603 x 251 mm
