Smart-UPS 1500VA uninterruptible power supply (UPS) Line-Interactive 1.44 kVA 1000 W 6 AC outlet(s)
- Line-Interactive
- 1.44 kVA 1000 W
- Waveform: Sine
- 6 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Rackmount Black
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

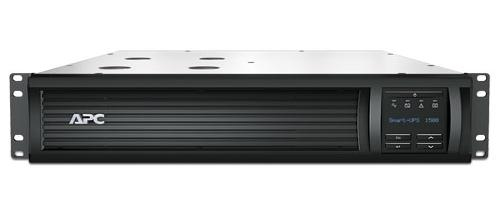

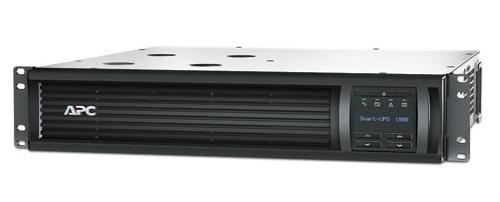

APC Smart-UPS 1500VA LCD RM 2U 120V with L5-15P
Reliable network power protection designed for deployment in retail and open access environments.
Includes : CD with software , Documentation CD , Installation guide , Rack Mounting support rails , Smart UPS signalling RS-232 cable , USB cable
- Cold-start capable
Provides temporary battery power when the utility power is out.
- Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
- Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- High online efficiency
Reduces utlility costs, generates less heat.
- Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- SmartSlot
Customize UPS capabilities with management cards.
- Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Serviceability
- Easy to install
Innovative design allows for fast, easy installation by almost anybody.
- User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Specifications
Features
- UPS topology
- Line-Interactive
- Output power capacity
- 1.44 kVA
- Output power
- 1000 W
- Waveform
- Sine
- Input operation voltage (min)
- 75 V
- Input operation voltage (max)
- 154 V
- Input frequency
- 50/60 Hz
- Output operation voltage (min)
- 120 V
- Output operation voltage (max)
- 120 V
- Output frequency
- 50/60 Hz
- Surge energy rating
- 459 J
- Emergency Power Off (EPO)
- Yes
- Output voltage Total Harmonic Distortion (THD)
- 5%
- Surge protection
- Yes
- Audible alarm(s)
- Yes
- Audible alarm modes
- Alarm when on battery, Low battery alarm
- Auto-restart
- Yes

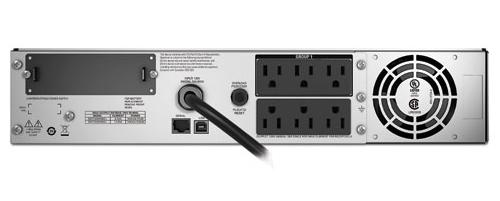

Ports & interfaces
- AC outlet types
- NEMA 5–15R
- Power plug
- NEMA L5-15P
- AC outlets quantity
- 6 AC outlet(s)
- USB port
- Yes
- SmartSlot
- Yes
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery capacity
- 432 VAh
- Battery life (max)
- 6 year(s)
- Battery recharge time
- 3 h
- Hot-swap battery
- Yes
- Automatic battery test
- Yes
- Cold start
- Yes
Design
- Form factor
- Rackmount
- Rack capacity
- 2U
- Cable length
- 2.44 m
- Product colour
- Black
- Display type
- LCD
- LED indicators
- Status, Battery replacement
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
Certificates
- Compliance certificates
- RoHS
- Certification
- CSA, FCC Part 15 Class A, UL 1778, REACH, PEP, EOLI
Packaging content
- Rack mount kit
- Yes
- Cables included
- RS-232, USB cable
- Quick installation guide
- Yes
Sustainability
- Sustainability certificates
- ENERGY STAR
Weight & dimensions
- Width
- 432 mm
- Depth
- 457 mm
- Height
- 89 mm
- Weight
- 28.6 kg
Packaging data
- Resource CD
- Yes
- Software CD
- Yes
- Package width
- 594 mm
- Package depth
- 603 mm
- Package height
- 251 mm
- Package weight
- 31.9 kg
Logistics data
- Products per pallet
- 16 pc(s)
