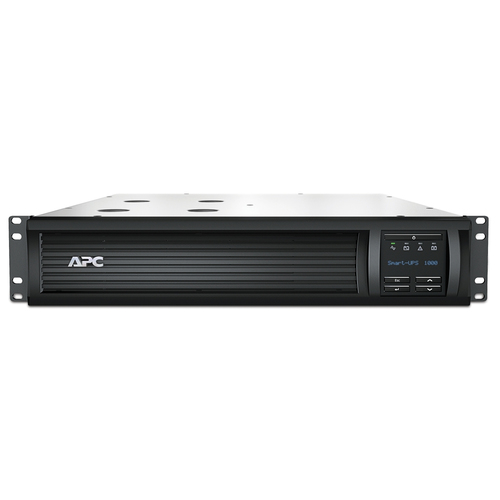

Smart-UPS uninterruptible power supply (UPS) Line-Interactive 4 AC outlet(s)
- Line-Interactive
- Waveform: Sine
- 4 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Rackmount Black
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Audible alarms
Provide notification of changing flywheel conditions
InfraStruXure Central compatible
Enables centralized management via APC InfraStruXure® Central.
SmartSlot
Customize UPS capabilities with management cards.
Cold-start capable
Provides temporary battery power when the utility power is out.
Serial Connectivity
Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC's Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks.
Resettable circuit breakers
Enables a quick recovery from overload events.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Audible alarms
Provides notification of changing utility power and UPS conditions.
Specifications
Features
- UPS topology
- Line-Interactive
- Waveform
- Sine
- Input operation voltage (min)
- 151 V
- Input operation voltage (max)
- 302 V
- Input frequency
- 50/60 Hz
- Output operation voltage (min)
- 220 V
- Output operation voltage (max)
- 240 V
- Automatic Voltage Regulation (AVR)
- Yes
- Surge energy rating
- 459 J
- Hold time (max)
- 2 ms
- Efficiency
- 98.2%
- Emergency Power Off (EPO)
- O
- Noise level
- 45 dB
- Audible alarm(s)
- Yes
- Auto-restart
- Yes
Ports & interfaces
- AC outlet types
- C13 coupler
- Power plug
- C14 coupler
- AC outlets quantity
- 4 AC outlet(s)
- Number of output IEC jumpers
- 2
- USB port
- Yes
- Serial interface
- Yes
- Serial interface type
- RJ-45
- SmartSlot
- Yes
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery capacity
- 336 VAh

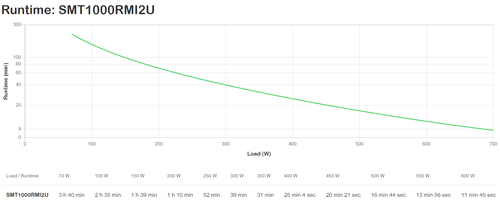

- Typical backup time at full load
- 8.7 min
- Typical backup time at half load
- 31.3 min
- Battery life (max)
- 6 year(s)
- Battery recharge time
- 3 h
- Hot-swap battery
- Yes
- Automatic battery test
- Yes
- Cold start
- Yes
Design
- Form factor
- Rackmount
- Rack capacity
- 2U
- Product colour
- Black
- LED indicators
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
Certificates
- Compliance certificates
- RoHS
- Certification
- CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH, PEP, EOLI
Packaging content
- Rack mount kit
- Yes
- Cables included
- RS-232, USB cable
- Quick installation guide
- Yes
Sustainability
- Sustainability certificates
- Green Premium
Weight & dimensions
- Width
- 480 mm
- Depth
- 475 mm
- Height
- 85 mm
- Weight
- 28.2 kg
Packaging data
- Software CD
- Yes
- Package width
- 594 mm
- Package depth
- 603 mm
- Package height
- 251 mm
- Package weight
- 31.4 kg
Logistics data
- Products per pallet
- 8 pc(s)
- Total carbon footprint (kg of CO2e)
- 1250.22
Other features
- Nominal output voltage
- 230 V
- Nominal input voltage
- 230 V
