APCUninterruptible Power Supplies (UPSs)

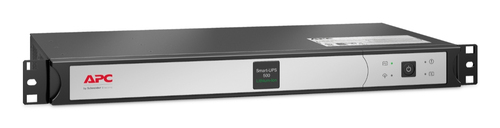

Large Lithium* APC Smart-UPS Li-Ion, Short Depth 500VA, 120V with SmartConnect
- Line-Interactive
- 0.5 kVA 400 W
- Waveform: Sine
- 4 AC outlet(s)
- Lithium-Ion (Li-Ion)
- Rackmount Black, Silver
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Specifications
Features
- UPS topology
- Line-Interactive
- Output power capacity
- 0.5 kVA
- Output power
- 400 W
- Waveform
- Sine
- Input operation voltage (min)
- 92 V
- Input operation voltage (max)
- 139 V
- Input frequency
- 47/63 Hz
- Output operation voltage (min)
- 120 V
- Output operation voltage (max)
- 120 V
- Output frequency
- 50/60 Hz
- Output voltage regulation
- 5%
- Automatic Voltage Regulation (AVR)
- Yes
- Surge energy rating
- 680 J
- Response time
- 6 ms
- Noise level
- 45 dB
- Audible alarm(s)
- Yes
- Audible alarm modes
- Alarm when on battery

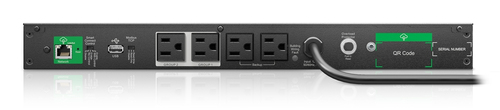

Ports & interfaces
- AC outlet types
- NEMA 5–15R
- Power plug
- NEMA 5-15P
- AC outlets quantity
- 4 AC outlet(s)
- USB port
- Yes
- USB 2.0 ports quantity
- 1
- USB port type
- USB Type-A
- Ethernet LAN (RJ-45) ports
- 1
Battery
- Battery technology
- Lithium-Ion (Li-Ion)
- Battery life (max)
- 10 year(s)
- Battery recharge time
- 3 h
Design
- Form factor
- Rackmount
- Rack capacity
- 1U
- Product colour
- Black, Silver
- LED indicators
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 10 - 90%
- Storage relative humidity (H-H)
- 10 - 90%
- Operating altitude
- 0 - 1968 m
- Non-operating altitude
- 0 - 14763 m
Certificates
- Compliance certificates
- RoHS
- Certification
- CSA C22.2 NO. 107.3, cULus, FCC 15 Class A, NOM, UL 1778, UL 1973
Packaging content
- Rack mount kit
- Yes
- Cables included
- USB cable
- Quick installation guide
- Yes
Weight & dimensions
- Width
- 432 mm
- Depth
- 232 mm
- Height
- 44 mm
- Weight
- 4.18 kg
Packaging data
- Package width
- 590 mm
- Package depth
- 337 mm
- Package height
- 168 mm
- Package weight
- 6 kg
Downloads
