APCPower Distribution Units (PDUs)

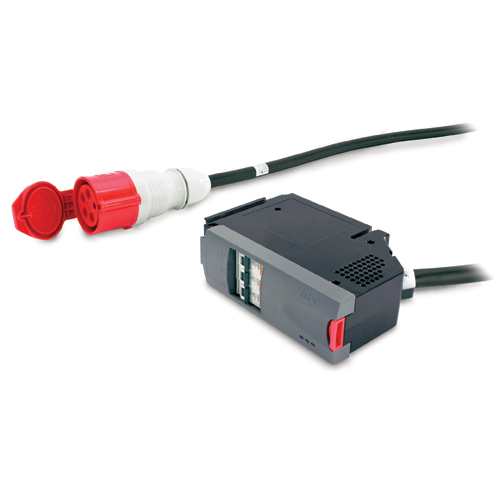

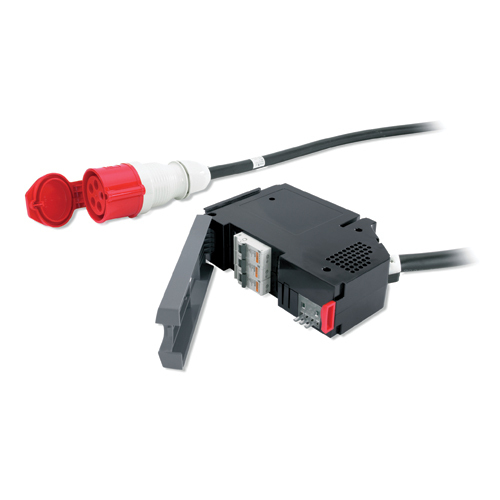

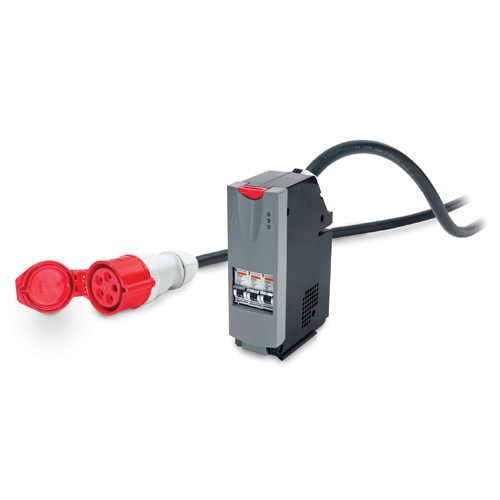

IT Power Distribution Module 3 Pole 5 Wire 20A 240V IEC309 800cm
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
A touch-safe Power Distribution Module (including circuit breaker, power cord, power connection, and circuit monitoring) that eliminates the need for hot work or shutdowns during expansion of the power distribution system.
Includes: Installation guide
Specifications
Design
- Product colour
- Black
Ports & interfaces
- Input connection type
- IEC 309
- Output connections
- (1) IEC 309
Features
- Cable length
- 8 m
Power
- Nominal input voltage
- 230 V
- AC input frequency
- 60 Hz
- Nominal output voltage
- 230 V
- Maximum total current draw per phase
- 20 A
Certificates
- Certification
- UL, RoHS
Weight & dimensions
- Width
- 445 mm
- Depth
- 406 mm
- Height
- 127 mm
- Weight
- 5.55 kg
Packaging data
- Package weight
- 6.09 kg
- Package width
- 445 mm
- Package depth
- 406 mm
- Package height
- 127 mm
Downloads
