APCKVM Switches
KVM 2G, Analog, 1 Local User, 16 ports
- Supports up to 16 servers, maximizing control capabilities
- Provides BIOS-level access for troubleshooting and diagnostics
- Can cascade multiple KVM switches for larger setups
- Allows for server additions or removals without downtime
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

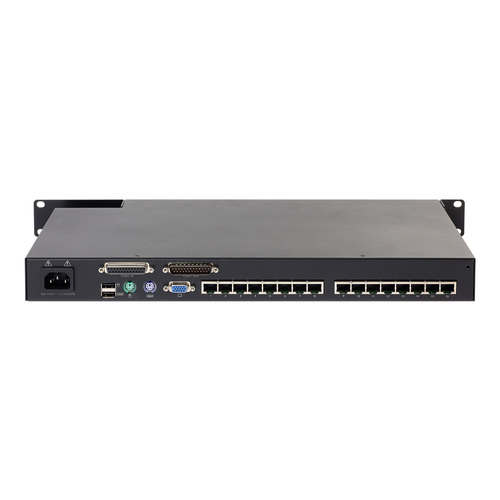

The APC KVM 2G Analog Switch supports one local user and sixteen ports. It is a 1U rack-mountable device. It includes a CD with software, installation guide, and rack mounting brackets. The switch supports multiple platforms and hot-pluggable operation.
Specifications
Ports & interfaces
- Number of computers controlled
- 16
- Keyboard port type
- PS/2
- Mouse port type
- PS/2
- Video port type
- VGA
- VGA (D-Sub) ports quantity
- 1
- USB 2.0 ports quantity
- 2
- PS/2 ports quantity
- 2
- Console port
- RS-232
Performance
- Maximum resolution
- 1600 x 1200 pixels
- Number of users
- 1 user(s)
Design
- Rack mounting
- Yes
- Rack capacity
- 1U
- Product colour
- Black
- LED indicators
- Yes
- Certification
- cUL listed; C-Tick; CE; EAC; TAA compliance; UL-AR; VCCI class A; VDE
Display
- Built-in display
- No
Certificates
- Waste Electrical and Electronic Equipment (WEEE) compliance
- Yes
Sustainability
- Compliance certificates
- RoHS, REACH, WEEE
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
- Storage relative humidity (H-H)
- 0 - 80%
Weight & dimensions
- Width
- 424 mm
- Depth
- 188 mm
- Height
- 43 mm
- Weight
- 2.4 kg
Packaging data
- Package width
- 619 mm
- Package depth
- 330 mm
- Package height
- 146 mm
- Package weight
- 3.9 kg
Packaging content
- Manual
- Yes
Other features
- Connectivity technology
- Wired
- Ports quantity
- 16
Technical details
- Sustainable packaging
- No
- Mounting
- front
- Preferred mounting position
- no preference
- Take-back system
- No
- Packaging without single use plastic
- No
Logistics data
- Harmonized System (HS) code
- 85176200
- Customs product code (TARIC)
- 8471800000
- Country of origin
- Taiwan
