APCUninterruptible Power Supplies (UPSs)
This product is part of the Back-UPS Pro range
- Line-Interactive
- 0.7 kVA 420 W
- Waveform: Sine
- 6 AC outlet(s)
- Sealed Lead Acid (VRLA) 12 V 9 Ah
- Tower Black
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
This product is part of the Back-UPS Pro range. This 700VA UPS has 6 total outlets, 3 outlets provide UPS power backup and surge protection, 3 outlets offer surge protection only. It features a built-in AVR and a LCD interface with audible alarms. Its dimensions are 7.48 x 3.58 x 12.2 inches and 15.76 lbs. The Back-UPS Pro family offers guaranteed power protection for high-performance computer systems, routers, external storage devices, game consoles, and other home and business electronics.
Specifications
Features
- UPS topology
- Line-Interactive
- Output power capacity
- 0.7 kVA
- Output power
- 420 W
- Waveform
- Sine
- Input operation voltage (min)
- 88 V
- Input operation voltage (max)
- 143 V
- Input frequency
- 50/60 Hz
- Output operation voltage (max)
- 120 V
- Surge energy rating
- 354 J
- Response time
- 12 ms
- Heat dissipation
- 48.5 BTU/h
- Noise level
- 45 dB
- Audible alarm(s)
- Yes
Ports & interfaces
- AC outlet types
- NEMA 5-15P, NEMA 5-15R
- Power plug
- NEMA 5-15P
- AC outlets quantity
- 6 AC outlet(s)
- Ethernet LAN (RJ-45) ports
- 2
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery capacity
- 9 Ah
- Battery voltage
- 12 V
- Battery life (max)
- 5 year(s)
- Battery recharge time
- 12 h
Design
- Form factor
- Tower
- Cable length
- 1.8 m
- Product colour
- Black
- LED indicators
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 3000 m
Certificates
- Certification
- FCC Part 15 Class B, FCC Part 68, NOM, UL 1778
Weight & dimensions
- Width
- 91 mm
- Depth
- 310 mm
- Height
- 190 mm
- Weight
- 7.15 kg
Packaging data
- Package width
- 442 mm
- Package depth
- 138 mm
- Package height
- 252 mm
- Package weight
- 8 kg
More in UPS 500 to 900 VA
APCAPC's Back-UPS ES series is now "greener" than ever. The ES 550 utilizBE550G
APCUninterruptible Power Supply (UPS) Back-UPS APC Back-UPS ES 600VA, 120BE600M1
APCAPC Back-UPS 650, 8 OutletBE650G1-CN
APCAPC Back-UPS 850VA, 2 USB charging portsES 550 is the best value for hBE850G2
APCBack-UPS CS 500. Description: Back-UPS CS, 500VA/300W, Input 120V/OutpBK500

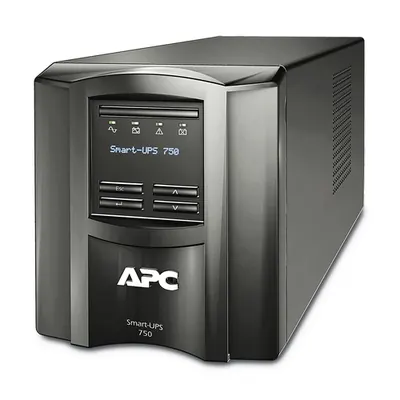

APCAPC Smart-UPS 750VA LCD 120V with SmartConnectSMT750C

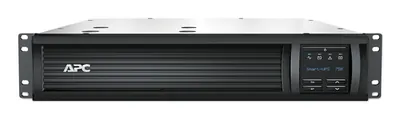

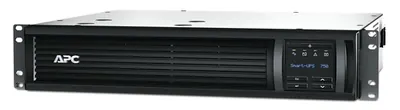

APCAPC Smart-UPS 750VA RM 2U 120V with SmartConnectSMT750RM2UC
