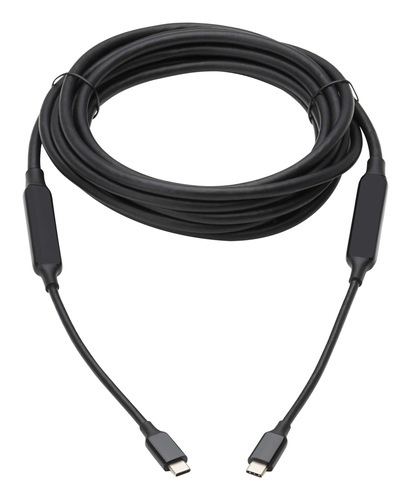

series USBC FullFunction Active Cable M/M w Repeater 10Gbps 8K60Hz 60W PD Charging, 5M

Part # U420-05M-G2UPC 037332290748Warranty: 3-year0.7 lb

Supports USB 3.2 Gen 2 speeds up to 10 Gbps to ensure lightning-fast data transfers
Provides 60W power output for charging, syncing and powering the host device
Supports 8K @ 60 Hz or 4K @ 144 Hz for high-resolution gaming or video editing
Compatible with all USB-C, Thunderbolt 3 and Thunderbolt 4 computer ports
Plug-and-play operation: no software required means easy, immediate installation

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

USB-C cable supports 8K video, 10 Gbps data transfer speeds and 60W PD charging as an alternative to fiber optic cabling.

Long-Distance USB-C Cable Supports High-Res Video, PD Charging and USB 3.2 Gen 2 Speeds

This full-function USB-C cable (M/M) is a flexible alternative to more expensive fiber optic cabling. Fiber cables are typically limited to either data or video, but not both. The U420-05M-G2 supports not only data and 8K/4K video, but also Power Delivery (PD) charging for the host device.

Transfers Data and Charges Devices at Lightning-Fast Speeds

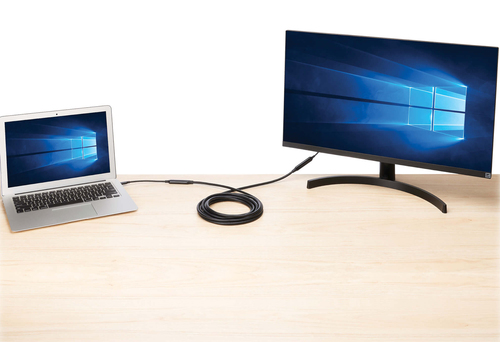

The full-function U420-05M-G2 connects your smartphone, tablet, MacBook Pro, Windows laptop or other USB-C device to the USB-C port on a computer, docking station or wall charger. It supports USB 3.2 Gen 2 data transfer rates up to 10 Gbps, which is twice as fast as USB 3.2 Gen 1. It also provides power output up to 20V 3A (60W), which is sufficient for charging and powering most host devices. The plug-and-play cable is compatible with Thunderbolt 3 and Thunderbolt 4 devices, as well as USB-C.

Transmits 4K and 8K Video with HDR and 4:4:4 Color

The U420-05M-G2 supports Ultra HD 8K resolutions up to 7680 x 4320 at 60 Hz and 4K resolutions up to 3840 x 2160 at 144 Hz. It supports HDR (High Dynamic Range), providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 8K display. HDCP 2.2 encryption allows you to stream 8K content with no loss in resolution. This cable also supports uncompressed 4:4:4 chroma subsampling for top-level PC gaming or for using your HDTV as a PC monitor.

Specifications

Features

USB version: USB 3.2 Gen 2 (3.1 Gen 2)
Connector 1: USB C
Connector 2: USB C
Connector 1 gender: Male
Connector 2 gender: Male
Connector 1 form factor: Straight
Connector 2 form factor: Straight
Connector contacts plating: Nickel
Cable jacket material: Polyvinyl chloride (PVC)
Maximum data transfer rate: 10 Gbit/s
Cable type: Round cable
Plug and Play: Yes
Fast charging: Yes
USB Power Delivery (USB PD): Yes
USB Power Delivery up to: 60 W
Product colour: Black
USB Type-C DisplayPort Alternate Mode: Yes
Maximum resolution: 7680 x 4320 pixels
Maximum refresh rate: 60 Hz
Display Stream Compression (DSC): Yes
High Dynamic Range (HDR) supported: Yes
3D: Yes
EDID emulation (TX): Yes

Power

Output voltage: 20 V
Output current (max): 3 A

Weight & dimensions

Cable length: 5 m
Cable diameter: 6.2 mm

Packaging data

Package type: Polybag
Package width: 177.8 mm
Package depth: 12.7 mm
Package height: 228.6 mm
Package weight: 300 g

Packaging content

Quantity per pack: 1 pc(s)

Sustainability

Doesn't contain: Cadmium, Lead, Mercury

Operational conditions

Operating temperature (T-T): -10 - 45 °C
Storage temperature (T-T): -10 - 70 °C

Certificates

Waste Electrical and Electronic Equipment (WEEE) compliance: Yes
Compliance certificates: CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
