Tripp LiteVideo Splitters

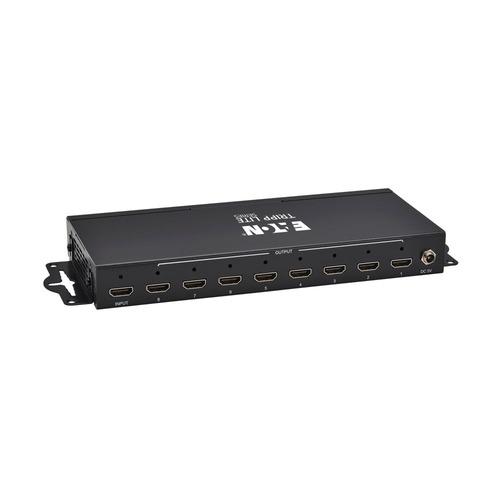

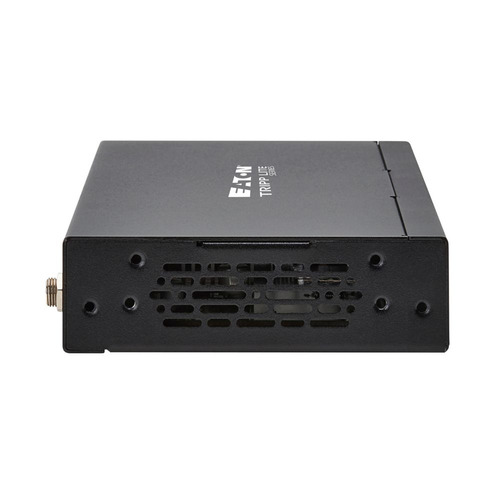

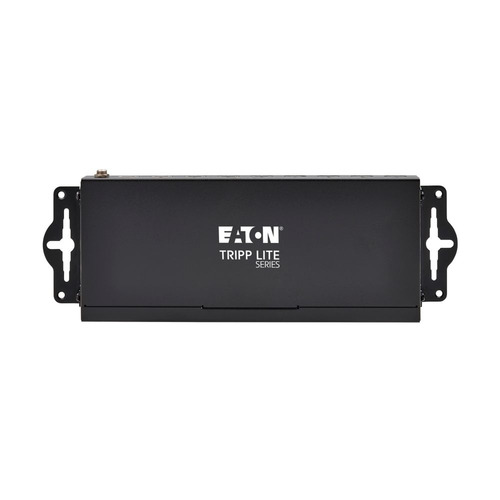

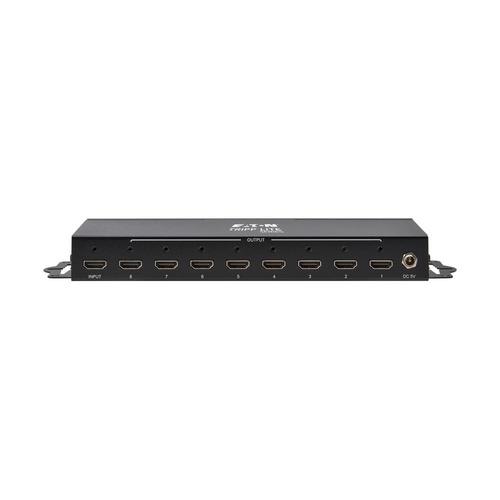

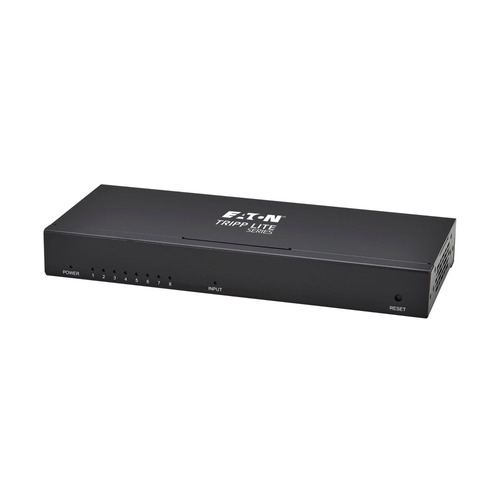

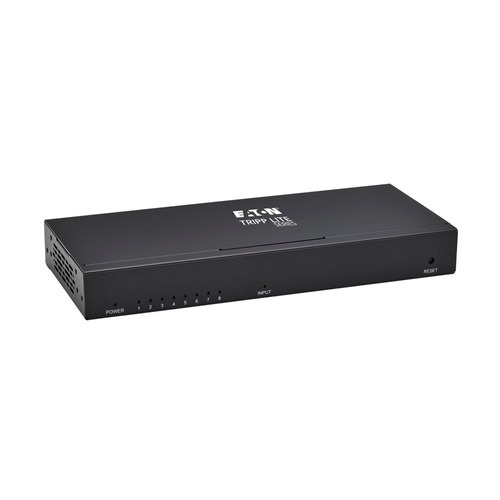

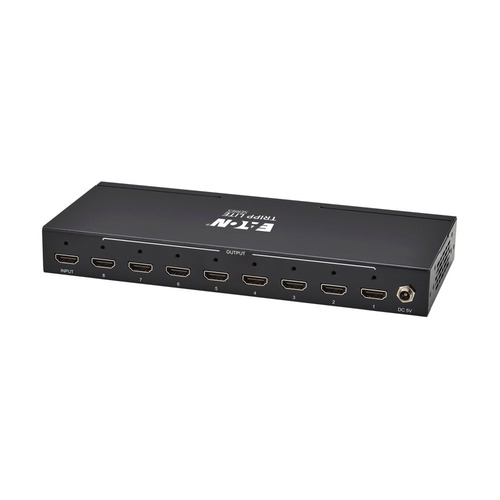

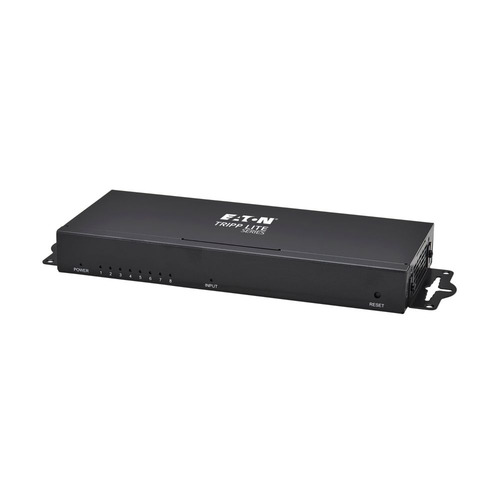

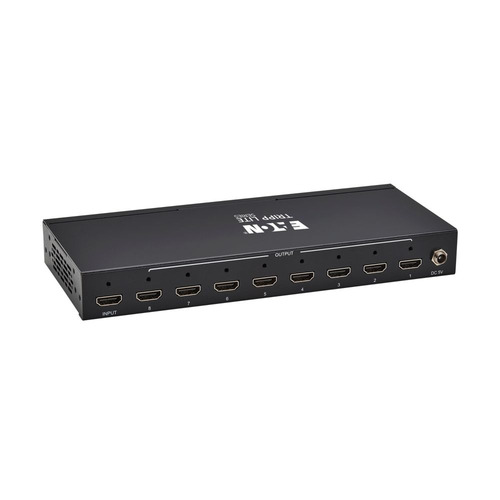

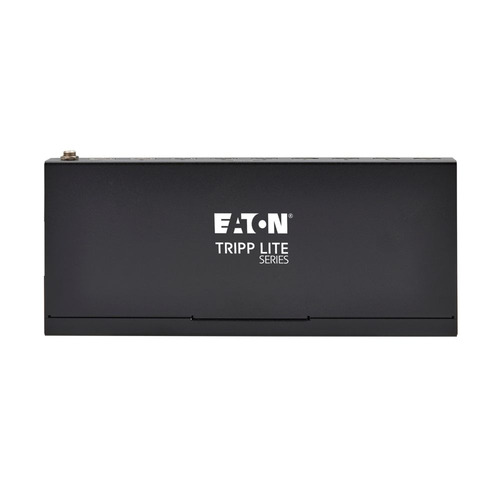

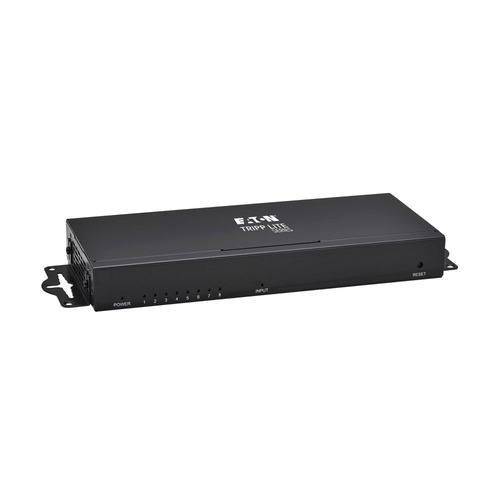

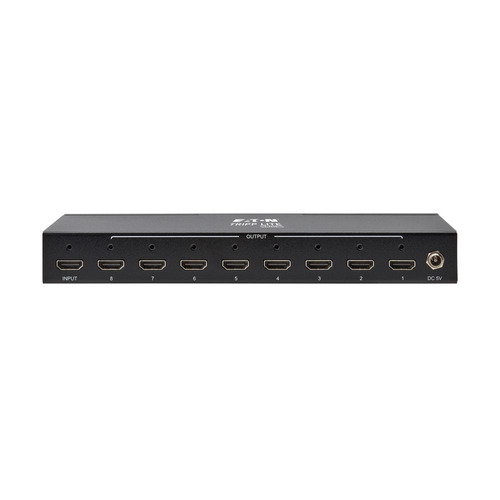

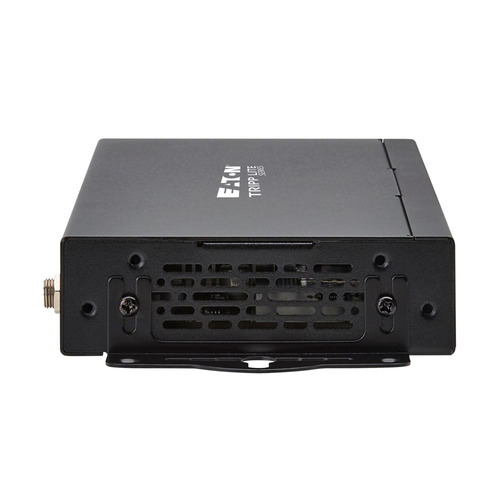

series HDMI Splitter 8Port 4K60Hz HDR10, MultiResolution Support, TAA

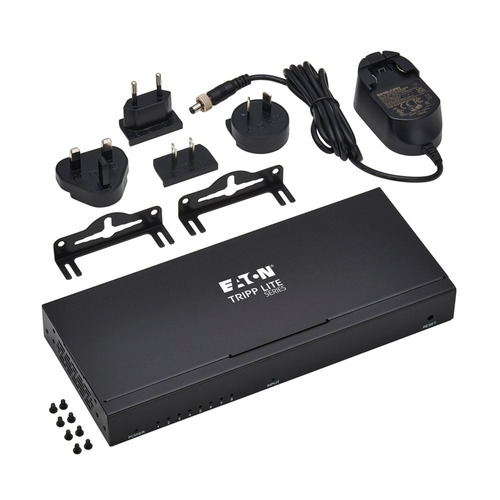

- Includes 4 international plug adapters to allow use of the splitter around the world
- Plug-and-play operation: no software required means easy, immediate installation
- 1-year limited warranty (Worldwide)
- Supports UHD resolutions up to 4K @ 60 Hz (4:4:4) with High Dynamic Range (HDR10)
- Multi-resolution function allows combination of different display resolutions at once
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Tripp Lite series HDMI Splitter 8Port 4K60Hz HDR10, MultiResolution Support, TAA
Specifications
Ports & interfaces
- Video port type
- HDMI
- Video out
- HDMI
- Video ports quantity
- 8
Features
- Product colour
- Black
- Maximum resolution
- 3840 x 2160 pixels
- Maximum operating distance
- 9.14 m
- Colour depth
- 12 bit
- HDCP version
- 1.4
- High Dynamic Range (HDR) supported
- Yes
- High Dynamic Range (HDR) technology
- High Dynamic Range 10 (HDR10)
- Cable length
- 1.37 m
- HDCP
- Yes
- Connector contacts plating
- Nickel
- LED indicators
- Signal, Power
Power
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50/60 Hz
- Power consumption (typical)
- 10 W
Weight & dimensions
- Width
- 234.9 mm
- Depth
- 100.1 mm
- Height
- 29.7 mm
- Weight
- 898 g
Packaging content
- AC adapter included
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 0 - 85%
Technical details
- Compliance certificates
- Federal Communications Commission (FCC), TAA, RoHS, UKCA, CE, WEEE
Downloads
More in Branded Server Accessories
Lenovo32GB 2RX8 PC54800 ECC Udimm4X77A88512
Lenovo16GB 1RX8 PC55600 ECC Udimm4X77A99751
Lenovo32GB 2RX8 PC5-5600 ECC Udimm4X77A99752
Tripp LiteTripp Lite series 2Port HDMI Splitter 8K60Hz HDR10+ MultiResolution SuB118-002-8K
Tripp LiteTripp Lite series 4Port HDMI Splitter 8K60Hz HDR10+ MultiResolution SuB118-004-8K
Tripp LiteEaton Tripp Lite series 2x1 BiDirectional HDMI Switch 4K 60 Hz, HDR, HB119-002-BDS
Tripp LiteTripp Lite series 2x1 BiDirectional DisplayPort Switch 4K120Hz or 8K30B119-002-BDS-DP

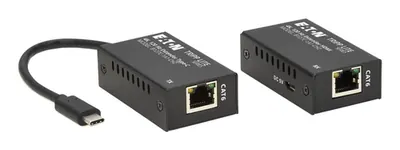

Tripp LiteEaton Tripp Lite series USB C to HDMI over Cat6 Extender Kit TransmittB127C-1A1-CH2
