series HDMI Extension Cable w Active Signal Booster/Repeater M/F 8K60Hz HDR 4:4:4 HDCP 2.3 15ft
- 4.57 m
- HDMI + USB Type-A Straight Male
- HDMI Straight Female
- 7680 x 4320 pixels 60 Hz
- High Dynamic Range (HDR) supported
- Black, Blue
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

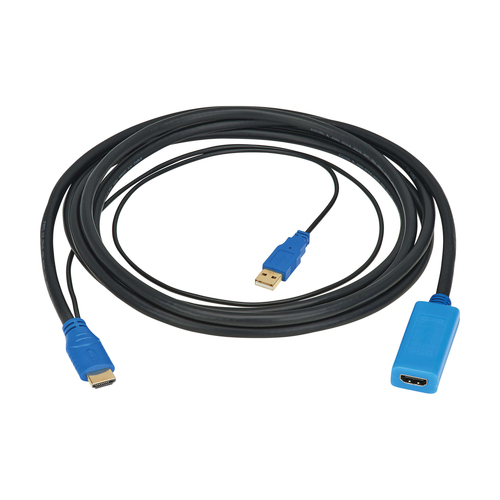

Extends Your Existing HDMI Cable Run by 15 ft.
The dependable P569-A15-MF-8K6 (M/F) connects to your existing HDMI cable to extend the run by 15 feet (4.6 meters). This allows you more flexibility in placing, for instance, a cable box or media server connected to an HDMI-enabled television, monitor or projector.
Transmits Crystal-Clear 4K Video with HDR and 4:4:4 Color
This extension cable supports Ultra HD 8K resolutions up to 7680 x 4320 at 60 Hz, as well as Dolby Digital audio, DTS and TrueHD. HDR (High Dynamic Range) provides a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your display. HDCP 2.3 encryption allows you to stream 8K content with no loss in resolution. This cable also supports uncompressed 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.
Ready to Use Right from the Package, So You Can Plug and Play Immediately

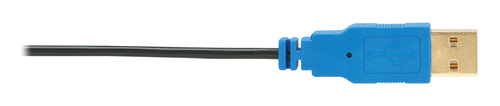

The extension cable requires no software or external power. A built-in USB-A pigtail cable can be used if additional power is necessary. The active repeater allows you to connect two devices farther apart without the cost of an external signal booster. An audio return channel simplifies setups between displays and receivers.
Specifications
Features
- Connector 1 form factor
- Straight
- Connector 2 form factor
- Straight
- Connector contacts plating
- Gold
- Cable length
- 4.57 m
- Connector 1
- HDMI + USB Type-A
- Connector 2
- HDMI
- Connector 1 gender
- Male
- Connector 2 gender
- Female
- HDCP
- Yes
- HDCP version
- 1.4/2.2/2.3
- High Dynamic Range (HDR) supported
- Yes
- Maximum resolution
- 7680 x 4320 pixels
- Maximum refresh rate
- 60 Hz
- Bend radius (min)
- 9 cm
- Product colour
- Black, Blue
- Jacket material
- Polyvinyl chloride (PVC)
- Connector housing material
- Polyvinyl chloride (PVC)
- AWG wire size
- 26/28
- Colour depth
- 36 bit
- Audio Return Channel (ARC)
- Yes
- Dolby technologies
- Dolby Digital, DTS, Dolby TrueHD
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 50 °C
- Operating relative humidity (H-H)
- 0 - 85%
- Storage relative humidity (H-H)
- 0 - 85%
Certificates
- Compliance certificates
- RoHS, CE, Federal Communications Commission (FCC), UKCA, WEEE
Weight & dimensions
- Weight
- 280 g
Packaging data
- Package width
- 254 mm
- Package depth
- 12.7 mm
- Package height
- 304.8 mm
- Package weight
- 276.6 g
- Package type
- Polybag
Downloads
