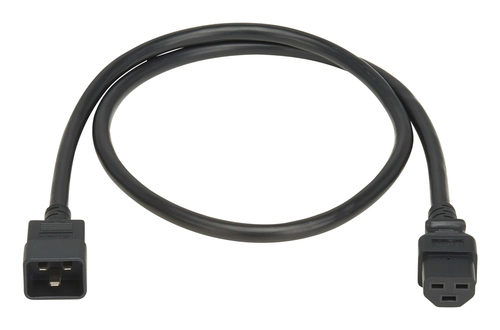

series Power Cord C20 to C21 HeavyDuty 20A 250V 12 AWG 4 ft. 1.2 m Black
- Recommended for powering switches, servers and other high-powered network devices
- 20A C21/C20 connectors support temperatures up to 221°F (105°C) frequent in rack enclosures
- Thick 12 AWG wire manages high power levels required for larger equipment
- 4 ft. length allows flexibility in placing devices within the rack while avoiding cable clutter
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
C20 to C21 20A heavy-duty cable connects high-output devices with C19/C22 power connectors commonly found on high-powered IT equipment.
20A C20-to-C21 Power Cable for Network Devices That Require a Heavy-Gauge Connection
This heavy-duty cord features 12 AWG wire suitable for high power connections, making it a reliable solution for large server applications that require a higher-rated, heavier-gauge cable, including AI/machine-learning data centers. The four-foot (1.2-meter) length helps reduce cable clutter by providing a tailor-made fit between the device and the PDU or UPS in a crowded rack enclosure.
Recommended for High-Temperature Environments
The P035-004 can be used to connect a blade server, large router or network switch with a C22 inlet, usually found on high-powered, high-temperature (overall operating temperature maximum 105°C/221°F) equipment, to a PDU or UPS system. It’s an ideal upgrade to a power cord with improved temperature threshold for data center applications in which temperature control and fire safety are high priorities.
Specifications
Features
- Product colour
- Black
- Connector 1 gender
- Male
- Connector 2 gender
- Female
- Cable length
- 1.2 m
- Connector 1
- IEC C20
- Connector 2
- C21 coupler
- Connector 1 form factor
- Straight
- Connector 2 form factor
- Straight
- Connector 1 lockable
- No
- Connector 2 lockable
- No
- Suitable for use in country/location
- North America
- Jacket material
- Polyvinyl chloride (PVC)
- AWG wire size
- 12
- Cable type
- SJT
- Number of conductors
- 3
- Plug and Play
- Yes
Power
- Input voltage
- 250 V
- Input current
- 20 A
Operational conditions
- Operating temperature (T-T)
- -20 - 105 °C
- Storage temperature (T-T)
- -20 - 105 °C
- Operating relative humidity (H-H)
- 10 - 65%
- Storage relative humidity (H-H)
- 10 - 65%
Certificates
- Waste Electrical and Electronic Equipment (WEEE) compliance
- Yes
- Compliance certificates
- UL, cUL
Weight & dimensions
- Diameter
- 1.1 cm
Packaging data
- Quantity per pack
- 1 pc(s)
- Package width
- 225 mm
- Package depth
- 13 mm
- Package height
- 325 mm
- Package weight
- 281 g
