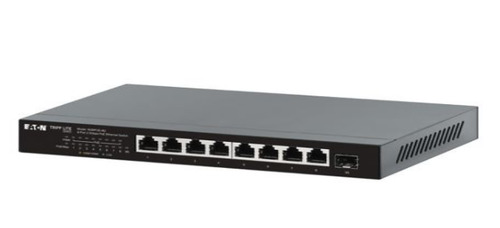

Eaton Tripp Lite Series 8-Port 2.5 Gbps Desktop Gigabit Ethernet Unmanaged Switch with PoE+
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity: 8
- MAC address table: 4000 entries Switching capacity: 60 Gbit/s
- Desktop/Wall-Mounting
- AC Power over Ethernet (PoE)
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Eaton Tripp Lite Series 8-Port 2.5 Gbps Desktop Gigabit Ethernet Unmanaged Switch with PoE+ Pass-Through, 100W, Metal Enclosure, TAA
Specifications
Management features
- Switch type
- Unmanaged
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Installed SFP+ modules quantity
- 1
Data transmission
- Switching capacity
- 60 Gbit/s
- MAC address table
- 4000 entries
- Jumbo frames support
- Yes
Design
- Form factor
- Desktop/Wall-Mounting
- Product colour
- Black
- Housing material
- Metal
Performance
- Fanless
- Yes
Power
- Power source
- AC
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50/60 Hz
- Power consumption (max)
- 120 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- Yes
- Total Power over Ethernet (PoE) budget
- 100 W
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -40 - 70 °C
- Operating relative humidity (H-H)
- 5 - 90%
- Storage relative humidity (H-H)
- 5 - 90%
Weight & dimensions
- Width
- 240 mm
- Depth
- 105 mm
- Height
- 27 mm
- Weight
- 690 g
Certificates
- Certification
- UKCA IEEE Certified RoHS FCC Class B TAA Compliant CE Marked
Downloads
