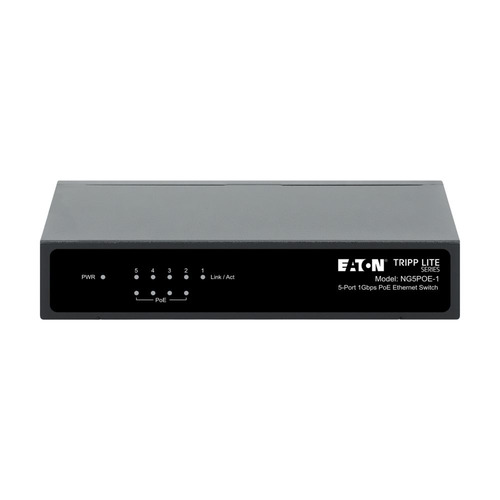

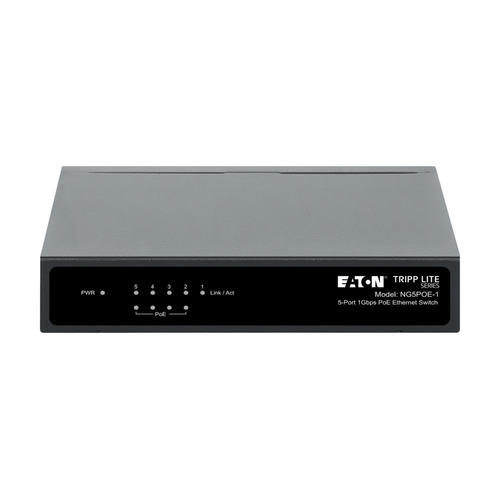

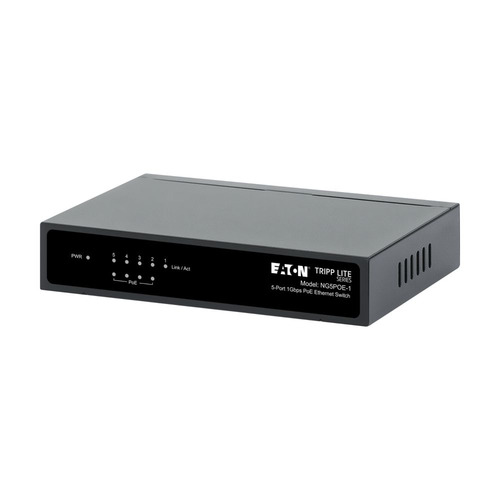

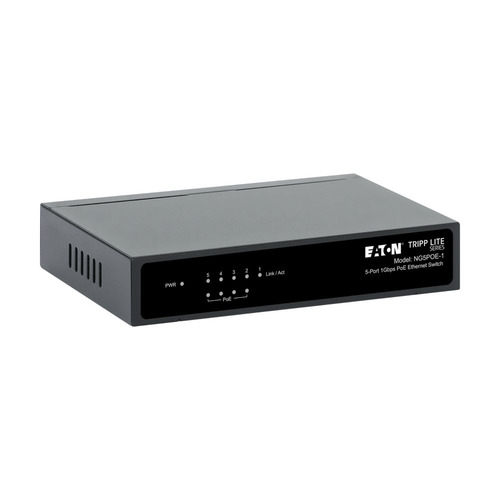

Eaton Tripp Lite Series 5-Port 10/100/1000 Mbps PoE-Powered Desktop Gigabit Ethernet Unmanaged

Part # NG5POE-1UPC 037332287175Warranty: 3 Year1.96 lb

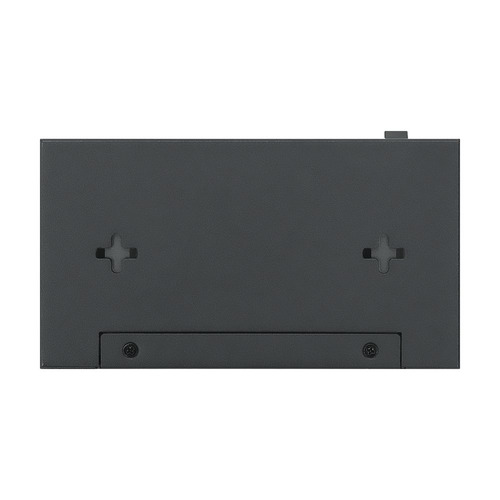

Designed for either desktop installation or wall mounting with keyhole tabs
Supports PoE to save you expense and effort of powering PoE devices individually

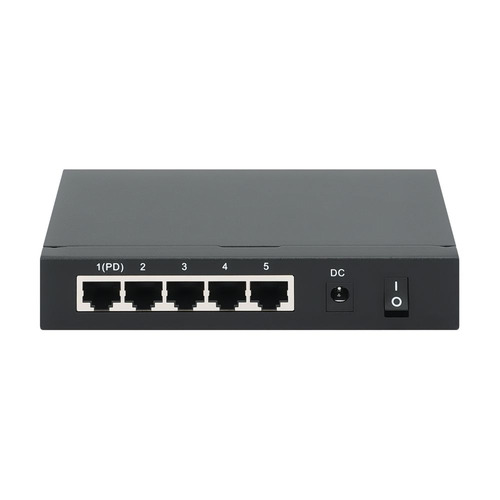

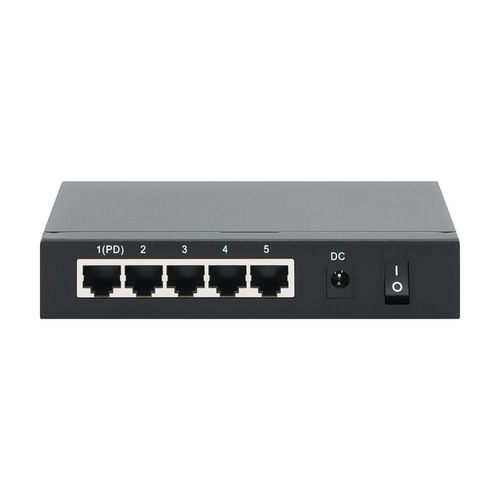

5 twisted-pair auto-negotiable RJ45 ports support auto MDI/MDIX functionality
IEEE friendly: supports 802.3az Energy Efficient Ethernet standards
Unused ports shift into low-power state without interrupting network connection

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Unmanaged Gigabit Ethernet Switch for Small Offices and Workgroups

The energy-efficient unmanaged network switch connects up to {NumberOfPortsOther} devices, such as computers, routers, printers and servers, to a Gigabit Ethernet network and allows them to communicate with each other. It’s recommended for your small office or data center, workgroup or creative production environment. It helps you share large bandwidth-intensive files, such as CAD drawings and videos, at {NetworkCompatibility} speeds, improving efficiency and cutting costly downtime.

Maximum Network Functionality

This unmanaged switch features {NumberOfPortsOther} twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable {NetworkCompatibility} and auto MDI/MDIX functionality, so crossover cables and uplink ports are not needed for connections to PCs, routers and other switches. No configuration is required, so you can have your Gigabit network up and running immediately. IEEE 802.3x flow control (full duplex) and back pressure (half duplex) allow smooth transmission of large files.

Complies with IEEE Energy Efficient Ethernet Standards

The switch supports IEEE 802.3az Energy Efficient Ethernet standards by automatically shifting unused ports into a low-power state without interrupting network connections. It consumes very little input power. It also meets IEEE 802.3ab, 802.3i and 802.3u standards.

Plug-and-Play Functionality for Easy Use

No configuration is required in setting up the unmanaged switch, so you can have your {NetworkCompatibility} network up and running immediately. Cat5/5e/6/6a UTP/STP cables (sold separately) provide optimal performance. Easy-to-read LEDs indicate connection and activity status for each port. The switch supports MAC address auto-learning and auto-aging for efficient routing.

Specifications

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Networking standards: IEEE 802.3x, IEEE 802.3az, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3bt
Cable types supported: Cat5, Cat5e, Cat6, Cat6a
Ethernet LAN data rates: 10,1000,100 Mbit/s
Auto-negotiation: Yes
MAC address auto-learning supported: Yes
MAC address auto-aging supported: Yes

Data transmission

Switching capacity: 10 Gbit/s
Jumbo frames support: Yes
Jumbo frames: 9216

Design

Form factor: Desktop/Wall-Mounting
Product colour: Black
Housing material: Metal
LED indicators: Power
Wall mountable: Yes

Performance

Plug and Play: Yes
Fanless: Yes

Power

Power source: AC
Power supply included: Yes
Number of power supply units: 1
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 1.5 A

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) type supported: PoE+

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): 0 - 70 °C
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 140 mm
Depth: 78 mm
Height: 279 mm
Weight: 760 g

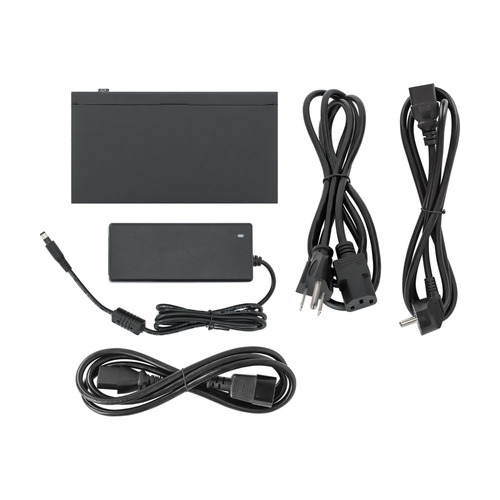

Packaging content

Cables included: Power
Manual: Yes

Certificates

Compliance certificates: RoHS, Federal Communications Commission (FCC), UKCA, CE
Certification: CSA Std. C22.2 NOM UL 60950-1 EN 55032 EN 55035
