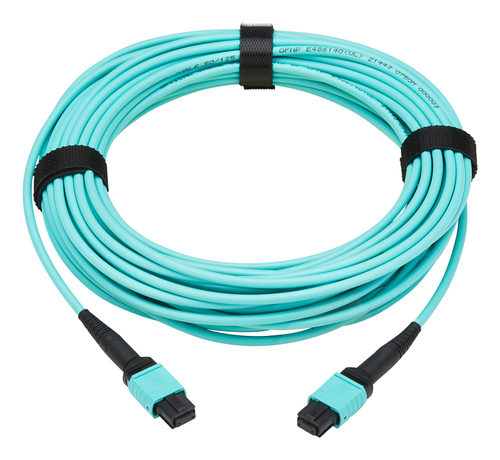

series 40/100/400G MMF 50/125 OM3 Fiber Optic Cable 8F MPO/MPOPC F/F TypeA Polarity OFNP Aqua 20M

Part # N844A-20M-8-PUPC 037332294517Warranty: Limited lifetime0.37 lb

OM3-rated cable recommended for 400 Gb speeds up to 100 meters (@ 1300 nm)
Backward compatible with 10/25/40/100 Gb networks to facilitate future-proofing
Aqua OFNP jacket provides fast, easy identification in a high-density application

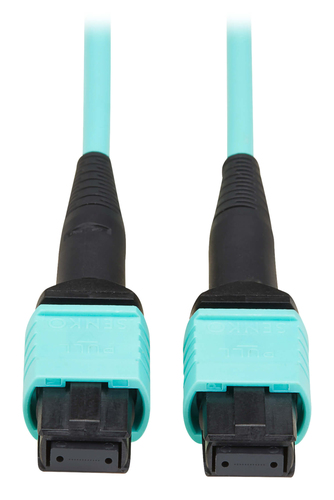

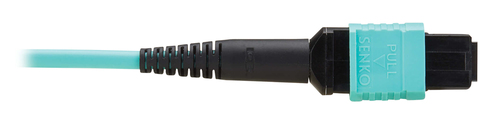

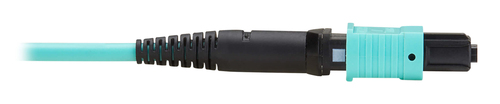

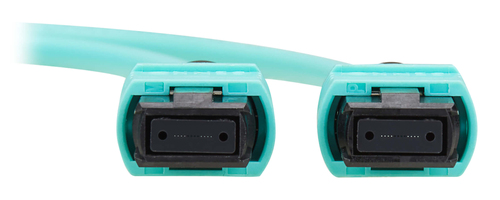

Push/pull tab connectors allow convenient one-handed installation and removal

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

40/100/400 GbE Ethernet cable extends high-density connections between network components in enterprise applications in wiring closets, telecom rooms and data centers.

40/100/400 GbE Cable Supports Higher Bandwidths for High-Density Data Networking

The N844A-20M-8-P is a premium multimode fiber optic cable that supports 400 Gb Ethernet speeds for transmitting data and voice signals over short distances. It is designed to support higher bandwidths for high-density patching between data center MDFs and IDFs in enterprise installations. This multimode 50/125 OM3 cable is an ideal choice for 100 Gb Ethernet applications up to 100 meters (328 feet) at 1300 nm. It is also backward compatible with 10 Gb and 25 Gb networks, so you can future-proof your current application for an eventual upgrade to 100 Gb or 400 Gb.

Aqua-Colored Jacket Helps Avoid Misidentification That Can Cause Costly Downtime

The OM3-rated cable has an aqua jacket to identify it as multimode in a high-density application and prevent it from becoming accidentally disconnected. The OFNP plenum-rated jacket complies with code requirements during commercial installations, making the N844A-20M-8-P ideal for network installers, facility integrators and government contractors. The MPO push-pull connectors allow easy one-handed installation and removal.

Easy to Pair with Eaton Tripp Lite Series Fiber Extenders

The N844A-20M-8-P is compatible with P580-Series termination kits for MPO fiber cabling, including P568-000-FBR (HDMI) and P580F-000 (DisplayPort), sold separately.

Specifications

Features

Cable length: 20 m
Fibre optic type: OM3
Cable shape: Round
Connector 1: MPO
Connector 2: MPO
Connector 1 gender: Female
Connector 2 gender: Female
Connector polish type: PC
Cable type: OFNP
Product colour: Aqua colour, Black
Full duplex: No
Core diameter: 50 µm
Cladding diameter: 125 µm
Fiber mode structure: Multi-mode
Wavelengths supported: 850,1300 nm
Ethernet interface type: 40 Gigabit Ethernet, 100 Gigabit Ethernet, 400 Gigabit Ethernet
Data transfer rate: 400 Gbit/s
Insertion loss: 0.5 dB
Return loss: 20 dB
Jacket material: Polyvinyl chloride (PVC)
Polarity: A
Plug and Play: Yes
