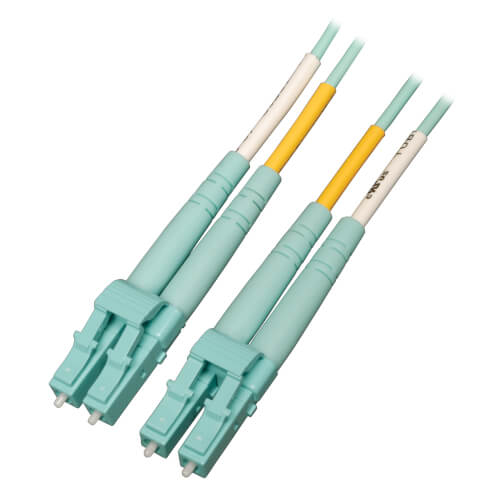

Eaton Tripp Lite Series 10Gb/40Gb/100Gb Duplex Multimode 50/125 OM4 LSZH Fiber Patch Cable (LC/LC)

Part # N820-04M-OM4UPC 037332206633Warranty: Lifetime Limited0.09 lb

Rated OM4 to offer a high-speed 50/125 multimode fiber solution
High-bandwidth fiber cable reaches 40/100 Gb speeds up to 300 m at 850 nm
Ideal for upgrading 10 Gb applications to 40 Gb and 100 Gb for future use
Laser-optimized for use with cost-effective VCSEL and LED laser light sources
Aqua jacket allows immediate identification as OM4 cable in crowded applications

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Rated OM4, this 50/125 multimode fiber Ethernet cable with duplex LC connectors carries signals in 40/100 Gb networks.

Support Higher Bandwidths in Data Networks with OM4 Multimode 50/125 Fiber Patch Cable

As the amount of traffic in data networks grows, so does the need for next-generation devices and fiber cables to support higher bandwidths. This LC-to-LC multimode fiber optic Ethernet cable is well-suited for future-proofing 40/100 Gb Ethernet applications up to 300 meters (984 feet) at 850 nm.

Experience Reliable Performance with Premium Construction

Premium materials ensure this multimode fiber cable reliably carries data and voice signals. The N820-04M-OM4 has duplex male LC connectors on each end and features a low-smoke zero-halogen (LSZH) jacket that limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas. The aqua color of the jacket identifies the cable as OM4 rated. It meets current IEEE 802.3ae and TIA LOMMF standards, and is compatible with existing OM3- and OM4-rated 50/125 fiber solutions.

Use with VCSEL Light Sources for a Cost-Effective, High-Bandwidth Solution

The N820-04M-OM4 is a laser-optimized multimode fiber (LOMMF) cable designed for use with vertical-cavity surface-emitting lasers (VCSELs) and LED lasers to offer a cost-effective, high-bandwidth solution over extended distances in the 850 nm wavelength range. It is commonly used in LANs, SANs and high-speed parallel interconnects for head-ends, central offices and data centers.

Specifications

Features

Cable length: 4 m
Fibre optic type: OM4
Cable shape: Round
Connector 1: 2x LC
Connector 2: 2x LC
Connector 1 gender: Male
Connector 2 gender: Male
Connector polish type: PC
Cable type: MMF
Product colour: Aqua colour
Full duplex: Yes
Core diameter: 50 µm
Cladding diameter: 125 µm
Fiber mode structure: Multi-mode
Wavelengths supported: 850 nm
Ethernet interface type: 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet
Data transfer rate: 100 Gbit/s
Insertion loss: 0.2 dB
Jacket material: Low smoke zero halogen (LSZH), Optical fiber non-conductive riser (OFNR)
Plug and Play: Yes
