Home/Catalogue/TP-Link/PSM550-AC
TP-LinkPower Adapters & Inverters
PSM500-AC power adapter/inverter Indoor 550 W Metallic
- Up to 550 watts output power
- 12 V DC output voltage
- Fully hot-swappable, ensuring no system interruption during installation or replacement
- Output over-voltage/over-current/short circuit/over-temperature protection
- Suitable for SX6632YF, S7500-26XF6Y
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

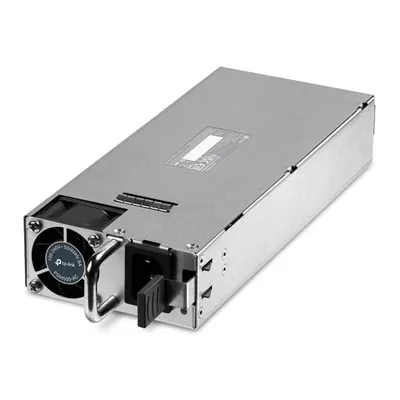

The TP-Link Power Supply Module PSM550-AC is an AC-input and DC-output power supply module. It can convert the input voltage to 12 Volts with a maximum output power of 550 Watts. The power supply module is fully hot-swappable, helping to ensure no system interruption during installation or replacement. The TP-Link Power Supply Module is applicable to multiple Omada and Omada Pro switch models, such as SX6632YF, S7500-26XF6Y.
Specifications
Features
- Purpose
- Network switch
- Power supply type
- Indoor
- Power current type
- AC-to-DC
- Input voltage
- 100 - 240 V
- Input frequency
- 50/60 Hz
- Input current
- 7 A
- Output power
- 550 W
- Output voltage
- 12 V
- Output current
- 45 A
- Power protection features
- Over current, Over voltage, Overheating, Short circuit
- Compatibility
- TP-Link SX6632YF, S7500-26XF6Y
Design
- Product colour
- Metallic
- Housing material
- Metal
- Suitable for indoor use
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 45 °C
- Storage temperature (T-T)
- -40 - 70 °C
- Operating relative humidity (H-H)
- 5 - 90%
- Storage relative humidity (H-H)
- 5 - 95%
Weight & dimensions
- Width
- 185 mm
- Depth
- 73.5 mm
- Height
- 40 mm
Packaging content
- Quantity per pack
- 1 pc(s)
Downloads
More in Accessories
TP-Link900W AC Power Supply ModuleSPEC: Up to 900 watts output power, Steel CPSM900-AC
TP-LinkOmada 1 Meter 25G SFP28 Direct Attach CableSPEC: Up to 1 m Distance, SSM6220-1M
TP-LinkPole/Wall Mount Kit for Outdoor Access PointDimensions: 330.5 172.5 49APM-200
StarTech.com130W AC redundant power module ensures continuous operation for the MCMCM-CHASSIS-PSU

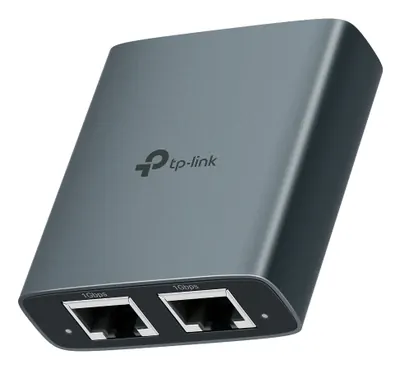

TP-Link1 to 2 Gigabit Ethernet SplitterSPEED: 1GbpsSPEC: 3 RJ45 1Gbps Ports, EH210
