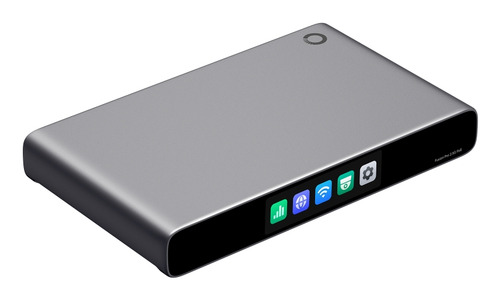

Omada Fusion Pro 2.5G PoE Gateway with SSD Tray

Part # Fusion Pro 2.5G PoEUPC 8404606175741 lb

One Platform for Networking & Surveillance: Centrally manage Omada APs, switches, cameras, and an NVR.
Simplified Setup: App-guided onboarding via Bluetooth and one-tap bulk device adoption.
License‑Free Cloud Management: Advanced networking & AI-powered surveillance with DPI, QoS, and Smart Search*.
Enterprise‑Grade Performance: 9× 2.5G ports (8× PoE+, 180W total budget), Quad-core CPU, 2.3 Gbps IPS/IDS throughput†.
Flexible Storage Options: 1× NVMe SSD tray for 2TB video storage or an external NVR expansion for up to 24× cameras.
Quick Troubleshooting via Touchscreen: Speed test, fault alerts, traffic insight, and more.

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Unified Control for Networking & Surveillance in One Platform

Combining a gateway, controller, and video management system in a single device, Omada Fusion Pro 2.5G PoE delivers a unified networking and surveillance solution. Centrally manage APs, switches, cameras, and an NVR through one intuitive interface. Instantly detect, diagnose, and resolve issues without switching between systems.

Simplified Setup for Faster Deployment, Boosting Efficiency

Easily set up the Fusion Pro 2.5G PoE via Bluetooth using the Omada app. Automatically discover and batch adopt all other Omada and VIGI devices at once, saving time and simplifying IT deployment.

License‑Free Cloud Management, Lower Ongoing Costs

Enjoy premium networking and AI-powered security features, including DPI, IDS/IPS, Smart Search*, and more, all included with no additional subscription fees.

Enterprise‑Grade Performance, Built for Demanding Environments

Quick Troubleshooting via Touchscreen,

Reducing On-Site Visits

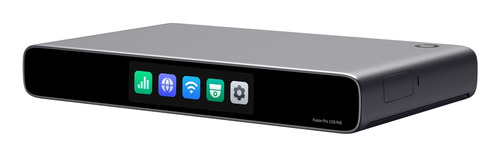

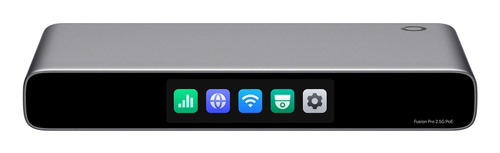

With an innovative 3.69-inch touchscreen, enjoy quick troubleshooting—all at your fingertips. Reduce on‑site visits and save time with direct, on‑device monitoring.

Secure Remote Network Access, One Click Away

With Omada LightLink VPN, securely access your network from anywhere with one click. Powered by Smart Split Tunneling, only essential traffic goes through the VPN, reducing unnecessary VPN load and preserving a smooth user experience.

Advanced Networking Capabilities for Secure and Intelligent Management

Simple Multi-Site Connectivity with Full-Mesh SD-WAN

Connect up to 20 sites with direct inter‑site links—simpler to deploy, smoother for multi‑site networking.

App‑Based Access Control

Easily manage access by app and category. Control access intuitively with simple, clearly defined policies.

One-Click Auto QoS

Ensure critical traffic always gets priority, with one-click presets or full customization.

Content Filtering & Ad Blocking

Blocks unwanted sites and intrusive ads for a safer, cleaner experience.

Professional Features for High-Efficiency Video Monitoring

Uninterrupted Surveillance with Easier Maintenance

Flexible Mounting for Diverse Business Environments

Desktop

No Additional Installation Needed

Wall‑Mountable

Magnetic-Mount Plate Needed

Rack‑Mountable

Rack-Mount Kit Needed

Specifications

Design

Product colour: Black
Enclosure material: Polycarbonate (PC)
Mounting type: Rack/Desktop/Wall
LED indicators: Link, PoE
Number of fans: 1 fan(s)

Performance

Control display unit: Yes
Display type: LCM
Internal memory: 4000 MB
Internal memory type: DDR4
Number of SSDs supported: 1

Protocols

DHCP server: Yes

Network

Ethernet LAN data rates: 2500 Mbit/s
Bluetooth: Yes
Mobile network generation: Not supported
Dynamic DNS (DDNS): Yes
IPSec VPN throughput: 1.332 Gbit/s
SSL VPN throughput: 0.371 Gbit/s
NAT functionality: Port Forwarding / Virtual Server / DMZ / ALG / UPnP / One-to-One NAT / Disable NAT

Security

Access Control List (ACL): Yes
Security algorithms: SNMP, SNMPv2, SNMPv3, SSID, PPSK
ARP attack prevention: Yes
Firewall security: Yes

Ports & interfaces

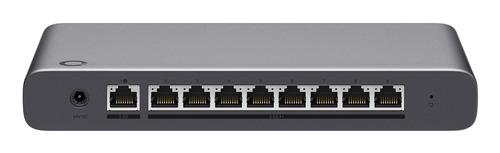

Ethernet LAN (RJ-45) ports: 9
WAN connection: Ethernet (RJ-45)
DC-in jack: Yes

Management features

Performance management: Cloud Access • On-Premises Management • Omada App • Omada Guard App
Quality of Service (QoS) support: Yes
Reset button: Yes
