Omada Gigabit VPN Router

Part # ER7206UPC 8404606046423.35 lb

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring
Centralized Management: Cloud access and Omada app for ultra convenience and easy management
Gigabit Ports: 1 gigabit SFP and 5 gigabit RJ45 ports provide high-speed wired connectivity
Up to 5 WAN Ports: Gigabit SFP WAN port and gigabit RJ45 WAN port optimize bandwidth usage
Highly Secure VPN: Supports multiple VPN protocols including SSL / Wireguard / OpenVPN/ IPSec / GRE VPN§/ PPTP/ L2TP/ L2TP over IPSec, helping users to establish VPN connections more flexibly
Abundant Security Features: Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and more security functions protect your network and data

In stockPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

A Professional, Secure, and Reliable Gateway with Centralized Management Capability

Omada Gigabit VPN Router

- Centralized Management

- Gigabit Ports

- Up to 5 WAN Ports

- Load Balance

- SSL/Wireguard/IPSec/OpenVPN

- Multi-Net DHCP

- Powerful Firewall

- Omada App

Omada SDN—The Smarter Cloud Solution for Business Networking

As the gateway that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, ER7206 allows for remote and centralized management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience.

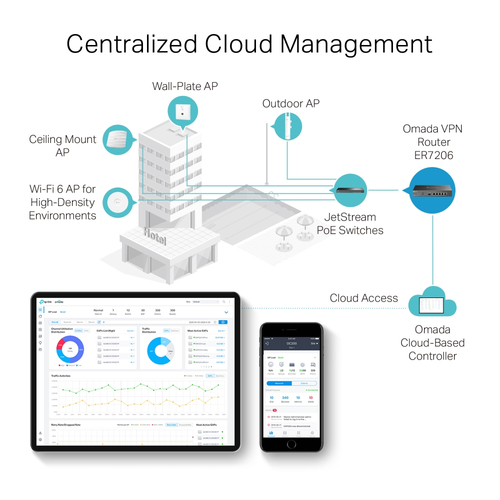

Hassle-Free Centralized Cloud Management:

100% centralized cloud management of whole network from different sites—all controlled from a single interface anywhere, anytime.

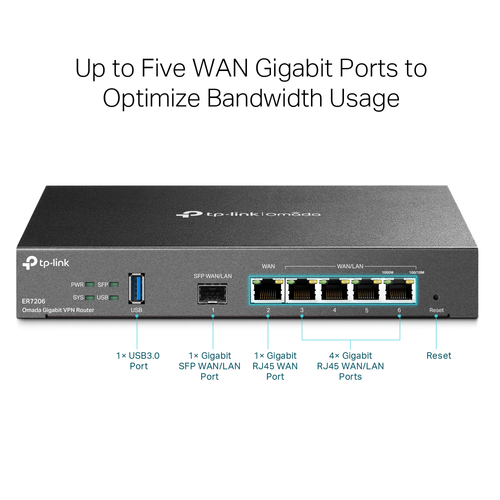

Up to Five WAN Gigabit Ports to Optimize Bandwidth Usage

One gigabit SFP WAN/LAN port, one gigabit RJ45 WAN port, and four freely interchangeable WAN/LAN ports allow the router to support up to five WAN ports to satisfy various internet access requirements through one device. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband.

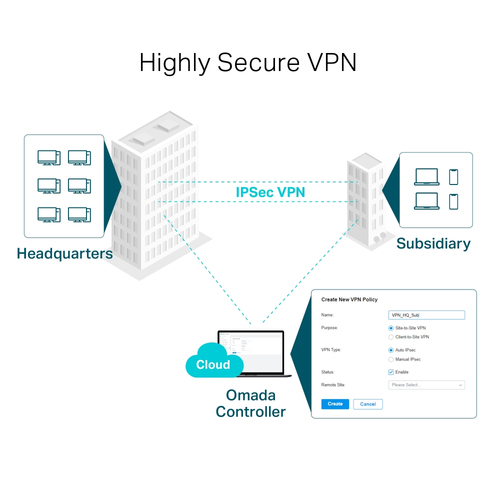

Highly Secure VPN

ER7206 supports multiple VPN protocols including SSL / Wireguard/ IPSec/ OpenVPN/ GRE VPN§/PPTP/ L2TP/ L2TP over IPSec, helping users to establish VPN connections more flexibly. One-click auto IPSec VPN* greatly simplifies VPN configuration and facilitates network management and deployment while also securing and encrypting private site-to-site data communications traveling over the internet.

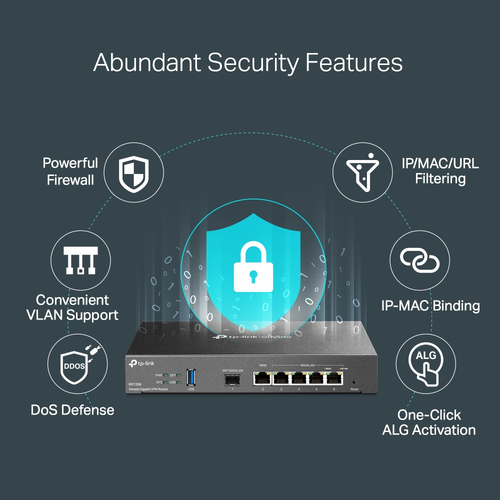

Abundant Security Features

Powerful Firewall

Advanced firewall policies protect your network and data.

Convenient VLAN Support

Create virtual network segments for enhanced security and simplified network management.

DoS Defense

Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats.

IP/MAC/URL Filtering

Forcefully prevent viruses and attacks from intruders.

IP-MAC Binding

Reserves static IP assignment for clients to defend against ARP attacks and spoofing.

One-Click ALG Activation

Specifications

WAN connection

Ethernet WAN: Yes
DSL WAN: No
SIM card slot: No
3G/4G USB modem compatibility: No
SFP WAN: Yes

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3q, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet interface type: Gigabit Ethernet
Cabling technology: 10/100/1000Base-T(X)
Ethernet LAN data rates: 10,100,1000 Mbit/s
Static route: Yes
VLAN support: Yes
Port forwarding: Yes
