AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter
- Unrivalled Wi-Fi 6 Speed—Breaks the gigabit barrier with speed up to 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
- Wider Signal Coverage— Connect to your Wi-Fi in more parts of your home with two external high-gain antennas ensuring greater coverage and enhanced stability
- Bluetooth 5.2—The latest Bluetooth technology achieves 2× Faster Speed and 4× Broader Coverage than BT 4.2
- Improved Security—The latest security enhancements WPA3 provides enhanced protection in personal password safety
- Backward Compatibility – Full support for 802.11ac/a/b/g/n standards
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Easily Get Start with Wi-Fi 6
AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter
- Fully Featured Wi-Fi 6
- Warp Speed up to 1800 Mbps
- Superior Coverage
- Bluetooth 5.2
- Cutting-Edge Security
Cutting-Edge Wi-Fi 6
The latest Wi-Fi technology makes annoying lag, endless loading, and dead spots a thing of the past. Enjoy the future of faster network loads and more connections.
More Devices, Less Congestion
OFDMA creates separate channel segments for devices to communicate while MU-MIMO allows multiple clients to simultaneously receive data. Combining these technologies guarantees your PC gets strong, efficient, and lag-free wireless connectivity at the same time all of your other devices are communicating.
High-Gain Antennas for Broader Coverage
Two powerful signal-boosting high-gain antennas greatly extend existing Wi-Fi coverage, offering a fast, smooth online experience from farther away.
Bluetooth 5.2 Compatible
The latest Bluetooth 5.2 Technology, achieves speeds 2× faster and coverage 4× broader than Bluetooth 4.2, to perfectly coordinate with your game controllers, headphones, keyboards, and other Bluetooth devices.
Cutting-Edge Security
WPA3, the latest network security standard, provides more secure and individualized encryption in personal password safety, protects your network from wireless hacking and ensure your wireless connection is completely secure while surfing the web and shopping online.
Specifications
Ports & interfaces
- Connectivity technology
- Wireless
- Host interface
- PCI Express
- Interface
- WLAN / Bluetooth
Network
- Maximum data transfer rate
- 1800 Mbit/s
- Networking standards
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- Wi-Fi
- Yes
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Top Wi-Fi standard
- Wi-Fi 6 (802.11ax)
- Wi-Fi standards
- 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
- WLAN data transfer rates supported
- 11,54,300,574,867,1200 Mbit/s
- Modulation
- 16-QAM, 64-QAM, 256-QAM, 1024-QAM, CCK, DBPSK, DQPSK, OFDM
- Security algorithms
- 64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3
- Bluetooth
- Yes
- Bluetooth version
- 5.2
Design
- Component for
- PC/Server
- Product colour
- Black
- Internal
- Yes
- Antenna
- Yes
- Antenna design
- External
- Transmitting power (CE)
- 23 dBm
- Transmitting power (FCC)
- 27 dBm
- Plug and Play
- Yes
- Operating modes
- Infrastructure mode
System requirements
- Windows operating systems supported
- Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64, Windows 11 Enterprise x64, Windows 11 x64
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -40 - 70 °C
- Operating relative humidity (H-H)
- 10 - 90%
- Storage relative humidity (H-H)
- 5 - 90%
Sustainability
- Sustainability compliance
- Yes
Weight & dimensions
- Width
- 120.8 mm
- Depth
- 78.5 mm
- Height
- 20.9 mm
Packaging data
- Package width
- 201.5 mm
- Package depth
- 152.5 mm
- Package height
- 41.5 mm
- Package weight
- 220 g
Packaging content
- Mounting brackets included
- Yes
- Resource CD
- Yes
- Bluetooth header cable
- Yes
- Quick installation guide
- Yes
Technical details
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS
Downloads
More in USB Controllers PCI
StarTech.com1Port 2.5GbE M.2 Network Card with Intel I225Vchip; Multigigabit speedMR12GI-NETWORK-CARD
StarTech.comUPGRADED CAPABILITIES: Add an RS232 DB9 connection to the PCIe slot ofPEX1S953LP
StarTech.com4 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card Adapter witPEXUSB3S4V

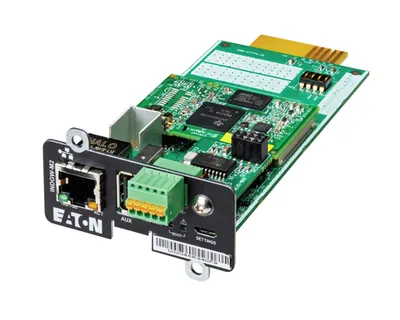

EatonIndustrial Gateway CardINDGW-M2
