1-Port 2.5GbE M.2 2280 Network Card, Multi-Gigabit Speeds (2.5G/1G/100M/10M), NBASE-T (802.3bz)

Part # MR12GI-NETWORK-CARDUPC 065030901611Warranty: 2 Years0.3 lb

1-Port 2.5GbE M.2 Network Card with Intel I225-V-chip
Multi-gigabit speeds (2.5G/1G/100M/10M)
NBASE-T (802.3bz)
PCIe M.2 2280 B or M key compatible
Intel vPro® for remote management
PXE boot

In stockPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

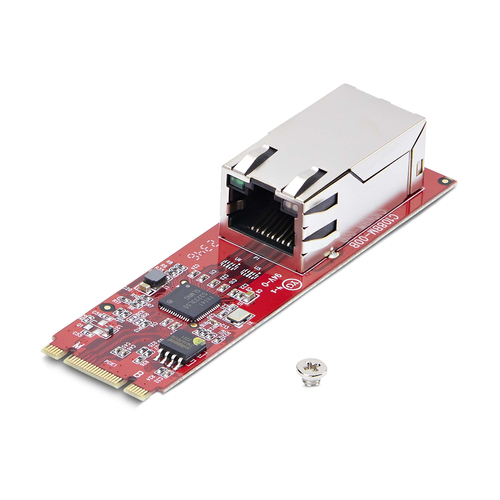

M.2 PCIe network card featuring the Intel® I225-V-chip, offering multi-gigabit speeds with support for NBASE-T

This 2.5 GbE M.2 Network Interface Card (NIC) features an Intel I225-V chipset with Intel vPro® technology, for enhanced performance and data integrity. Variable multispeed options (2.5/1Gbps and 100/10Mbps) enable support of new and legacy network hardware. Leverage existing Cat5e or CAT6 cabling infrastructure while adding 2.5GBASE-T (802.3bz) compatibility for seamless integration.

Increased Network Speed

The PCIe network card takes advantage of Intel vPro® technology for remote management and troubleshooting capabilities. Improve bandwidth for data-intensive applications, network sharing, FTPs, online or local storage/backup, and online content streaming or uploading while reducing network slowdowns. Access up to 2.5GBASE-T speeds using Cat5e (or better) cabling, to maximize existing networks and equipment.

Enhance Existing Hardware

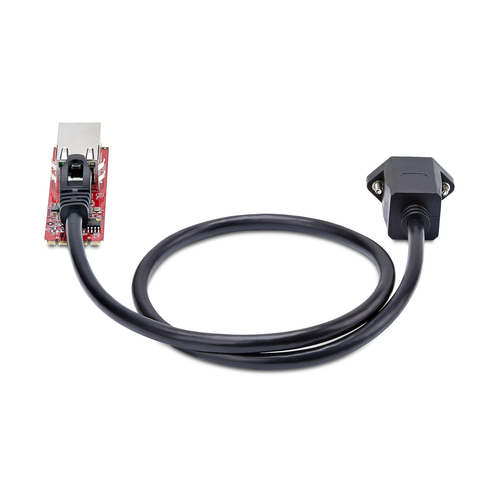

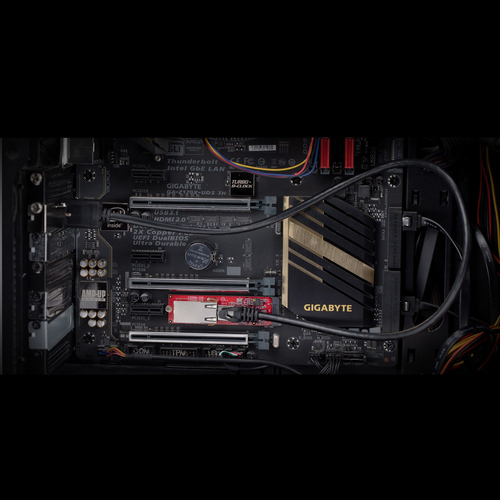

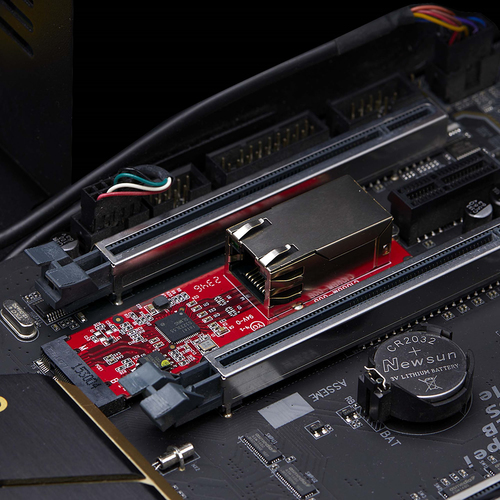

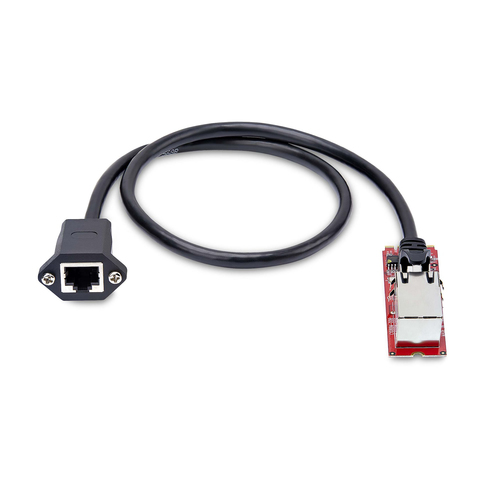

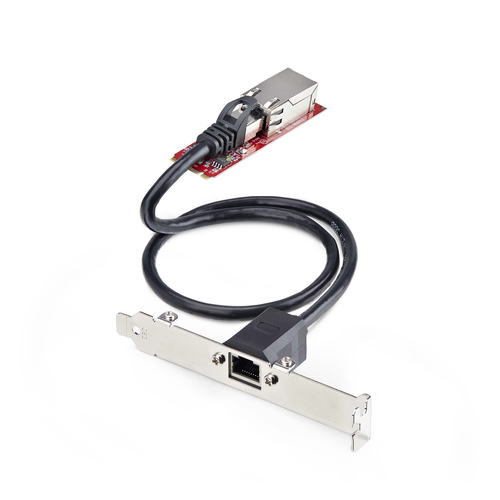

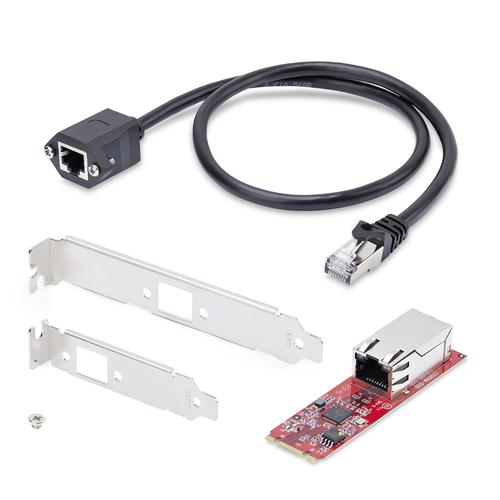

The network adapter card connects to an available M.2 2280 PCIe slot (B or M key compatible). Standard and low-profile brackets and a 2ft (60cm) Cat6 adapter cable are included for versatile installation. Compatible with Windows, and Linux.

Advanced Features

This Ethernet card supports the following advanced features: PXE Boot, Wake-on-Lan (WoL), VLAN tagging, 9K jumbo frame, half-duplex, auto-negotiation, and Error Correcting Memory (ECC) for optimal network functionality.

Specifications

Ports & interfaces

Connectivity technology: Wired
Host interface: M.2
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 1
PCI version: 2.0

Network

Maximum data transfer rate: 2500 Mbit/s
Networking standards: IEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Cabling technology: NBase-T
Wake-on-LAN ready: Yes
Jumbo frames support: Yes
Jumbo frames: 9000

Design

Component for: PC/Server
Product colour: Red
Internal: Yes
Chipset: Intel I225-V
LED indicators: Yes

System requirements

Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
