StarTech.comRack Accessories

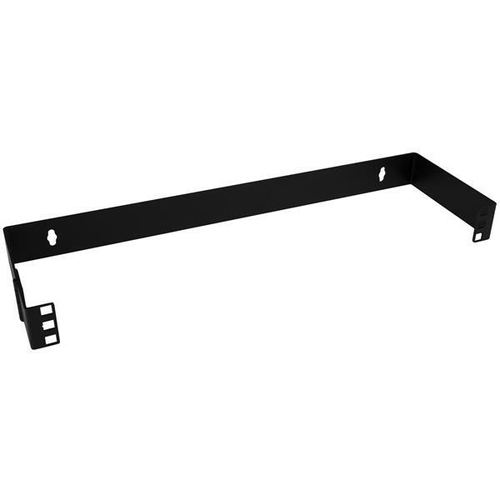

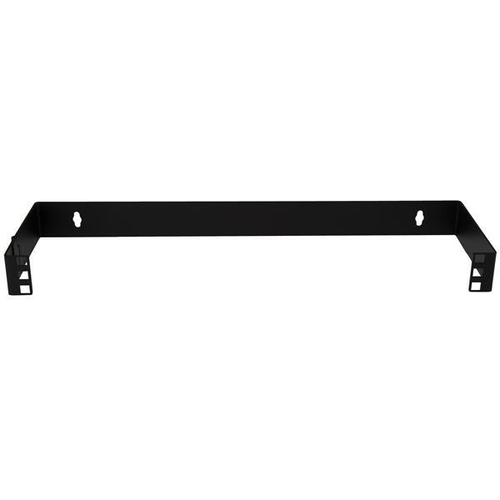

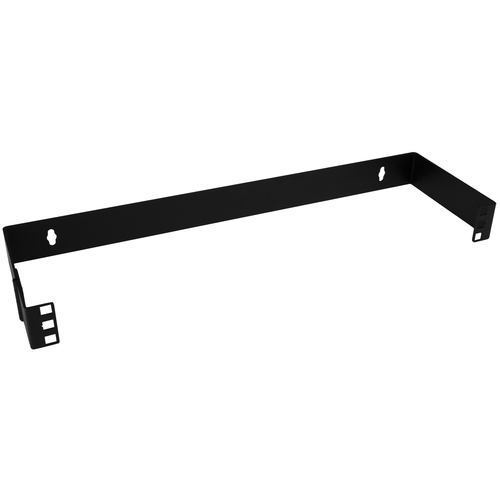

1U Hinged Wall Mount Patch Panel Bracket - 6 inch Deep - 19" Patch Panel Swing Rack for Shallow
- Wall-mount a patch panel or network switch while providing hinged access to the back of the device
- 8 kg (17 lbs) weight capacity
- 1U hinged network panel/Shallow 1U wall-mount rack/Patch panel rack/mount patch panels to the wall/Wall mount rack with hinge/1U patch panel rack

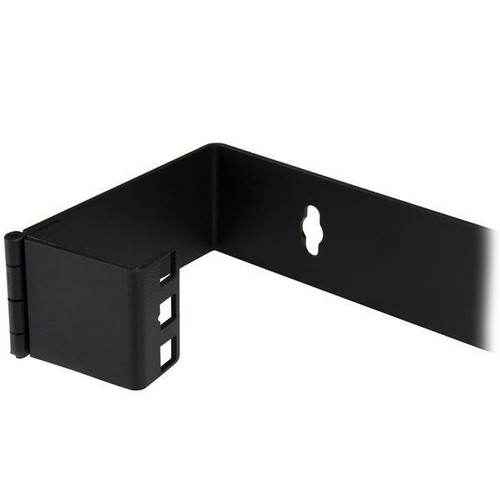

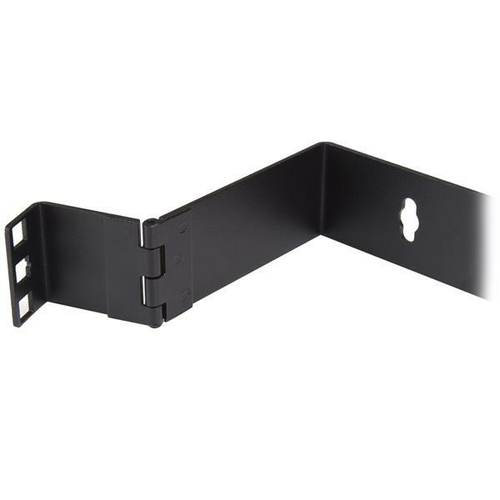

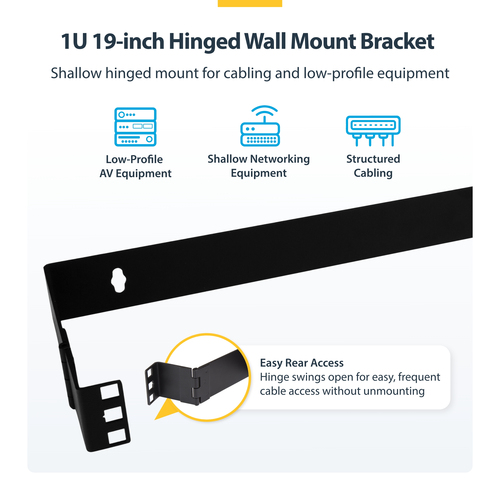

- Hinged side panel allows for easy access to the rear of the mounted equipment for easy adjustment
- Sturdy cold rolled steel construction

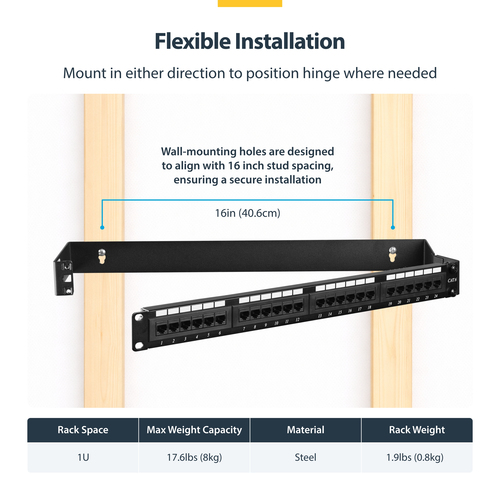

- Wall mounting holes spaced 16 in. apart matching standard dry-wall
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Wall mount a patch panel or network switch while providing hinged access to the back of the device

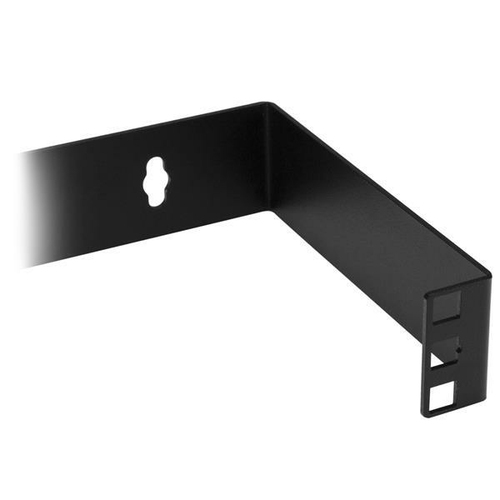

The WALLMOUNTH1 1U 19in Hinged Wall Mounting Bracket for Patch Panels is 6in deep and sturdily designed to provide a dependable solution for mounting a patch panel, or other slim 19in networking equipment to a wall.
The patch panel wall mount features a hinged design for easy access to configuration buttons, ports and cables. The wall mounting holes are spaced 16 in. apart, making it suitable for mounting on almost any wall, based on common wall-frame stud spacing.
Specifications
Features
- Type
- Wall mounted rack
- Product colour
- Black
- Number of fans
- 0 fan(s)
- Maximum weight capacity
- 8 kg
- Rack capacity
- 1U
- Mounting hole shape
- Square
- Frame type
- Open
- Castor wheels
- No
- Compliance industry standards
- EIA-310-D
- Certification
- RoHS

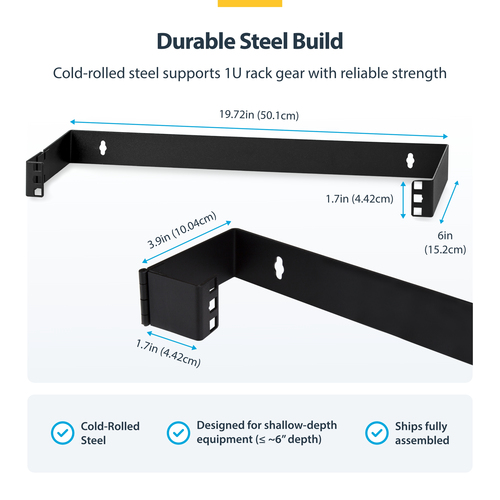

Weight & dimensions
- Size (imperial)
- 48.3 cm (19")
- Width
- 501 mm
- Depth
- 152 mm
- Height
- 44 mm
- Mounting depth (min)
- 15.2 cm
- Weight
- 579.5 g
Packaging data
- Package width
- 530 mm
- Package depth
- 207 mm
- Package height
- 79 mm
- Package weight
- 843 g

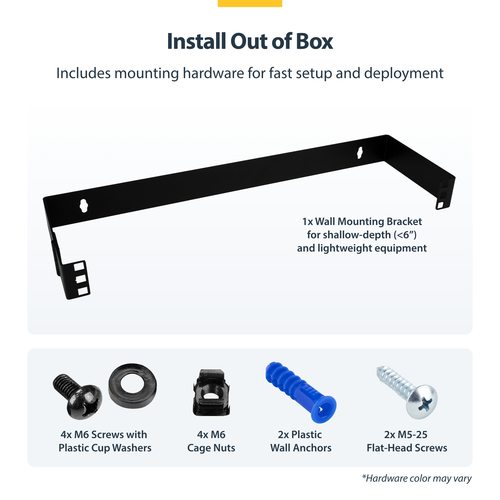

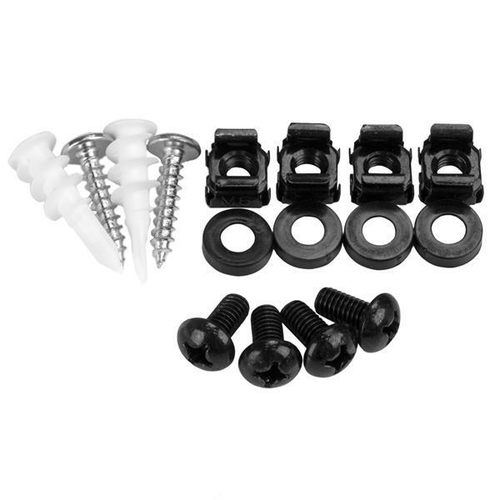

Packaging content
- Screws included
- Yes
- Number of screws
- 6
- Nuts included
- Yes
- Number of nuts
- 4
Logistics data
- Master (outer) case width
- 1200 mm
- Master (outer) case length
- 520 mm
- Master (outer) case height
- 76 mm
- Products per master (outer) case
- 1 pc(s)
- Harmonized System (HS) code
- 85389099
