EatonUninterruptible Power Supplies (UPSs)

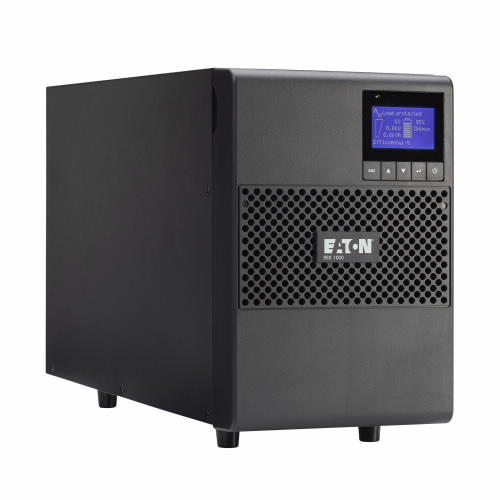

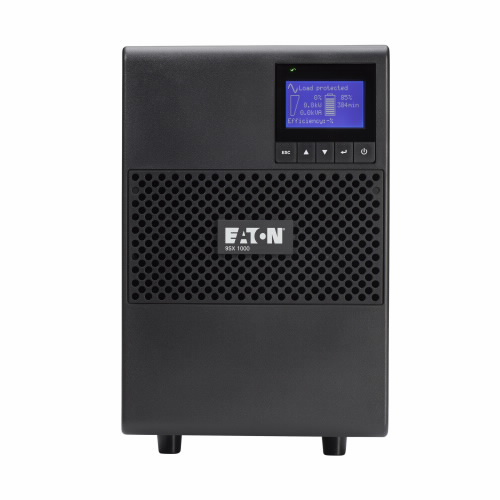

9SX UPS uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 900 W
- Eaton 9SX UPS
- UPS topology: Double-conversion (Online)
- Output power capacity: 1000 VA
- Output power: 900 W
- Serial interface type: RS-232
- Form factor: Tower
In stockPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Specifications
Features
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 1 kVA
- Output power
- 900 W
- Waveform
- Sine
- Input operation voltage (min)
- 190 V
- Input operation voltage (max)
- 276 V
- Input frequency
- 40/70 Hz
- Output frequency
- 50/60 Hz
- Maximum current
- 10 A
- Efficiency (On-line mode)
- 88%
- Noise level
- 41 dB
Ports & interfaces

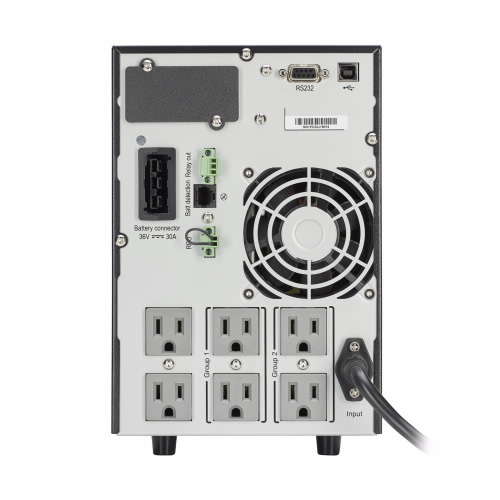

- AC outlet types
- NEMA 5–15R
- USB port
- Yes
- Serial interface
- Yes
- Serial interface type
- RS-232
Design
- Form factor
- Tower
- Product colour
- Black
- Display type
- LCD
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
Certificates
- Certification
- cULus Listed
Weight & dimensions
- Width
- 160 mm
- Depth
- 387 mm
- Height
- 252 mm
- Weight
- 14.8 kg
Other features
- Output voltage
- 120 V
Downloads
