Home/Catalogue/StarTech.com/USB32HDPRO

StarTech.com USB32HDPRO Drag to turn · 11 views
StarTech.comUSB Graphics Adapters

USB 3.0 to HDMI Adapter - DisplayLink Certified - 1080p (1920x1200) - USB Type-A to HDMI Display

Part # USB32HDPROUPC 065030857505Warranty: 2 Years0.3 lb

  • USB 3.0 to HDMI adapter/converter connects your USB Type-A computer to an HDMI monitor/display or projector | 1920x1200 (1080p) video | 5ch HDMI audio | 6.3" (16cm) cable
  • Extend your desktop by adding an additional HDMI monitor to your workstation
Special orderPrice on request
View quote list
  • Reply within 1 business day
  • Volume & business pricing
  • Shipping across Canada & US

Overview

USB 3.0 External Video & Graphics Card | Multi-Monitor | USB-Powered | Supports Mac & Windows®

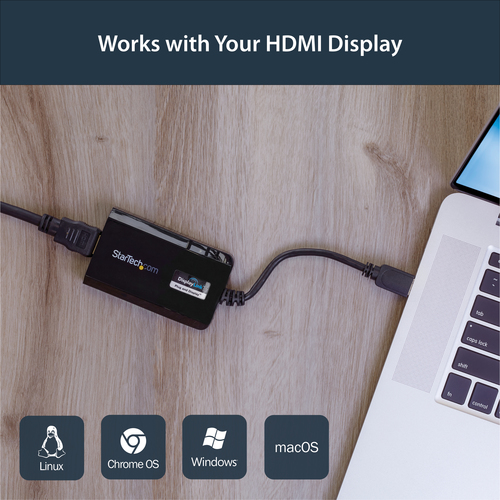

The USB32HDPRO USB 3.0 to HDMI Adapter lets you add an HDMI display to your computer through a USB 3.0 port, providing a cost-effective and convenient way to expand the video capabilities of your Mac® or PC computer system.

01

USB 3.0 Bandwidth, High Definition Performance

With USB 3.0 support, this external video adapter delivers the bandwidth needed for accelerated High-Definition video performance, capable of outputting video resolutions up to 1920x1200 / 1080p. Even if your current computer doesn't have a USB 3.0 port available, the USB32HDPRO is backward compatible with USB 2.0, so you'll be able to connect your HDMI monitor to your computer and be ready for when you upgrade to a USB 3.0-equipped system.

02

Easier Multitasking, More Productivity

Add the screen space you need to simplify multitasking and maximize productivity, without even opening your computer case. Some computer systems, including MacBook® and Ultrabook™ laptops and small form-factor desktops, are too compact to install an internal video card. A USB display adapter offers an easy workaround, performing as an external video card that only requires an available USB port to mirror or extend your desktop onto another display.

03

DisplayLink Plug-and-Display Certified

Installation has never been easier. When you connect this DisplayLink Plug and Display certified adapter to a web-enabled Windows® 10, Windows® 8 or Windows® 7 computer, it automatically downloads and installs the most up-to-date drivers for you, so you won't have to manually download or install any software.

The USB32HDPRO is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Recommended System Requirements:

CPU: Quad Core 2.4GHz or Higher (i5 recommended)

RAM: 4GB or higher

Specifications

Performance

USB connector type
USB Type-A
USB connector gender
Male
USB connector form factor
Straight
USB version
3.2 Gen 1 (3.1 Gen 1)
DVI output
No
HDMI output
Yes
DisplayPort output
No
Number of displays supported
1
Internal memory
512 MB
Internal memory type
DDR2
Maximum resolution
1920 x 1200 pixels
Supported graphics resolutions
1280 x 960, 1600 x 900, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 800 x 600 (SVGA)
Supported video modes
1080p, 720p
Output colour depth
16/32 bit
Audio output channels
5.1 channels
Chipset
DisplayLink - DL-3500
USB pass-through
No
Certification
CE, FCC, DisplayLink

Design

Product colour
Black
Housing material
Plastic
Integrated USB cable
Yes

System requirements

Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac compatibility
Yes
Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura
Linux operating systems supported
Ubuntu 14.04, Ubuntu 16.04, Ubuntu 18.04 LTS
Other operating systems supported
ChromeOS
Minimum processor family
Core i5
Minimum processor speed
2.4 GHz
Minimum RAM
4 GB

Weight & dimensions

Width
55 mm
Depth
90 mm
Height
20 mm
Weight
62 g
USB cable length
0.9 m

Operational conditions

Operating temperature (T-T)
0 - 35 °C
Storage temperature (T-T)
20 - 80 °C
Operating relative humidity (H-H)
-5 - 40%

Packaging data

Package width
145 mm
Package depth
210 mm
Package height
41 mm
Package weight
196 g

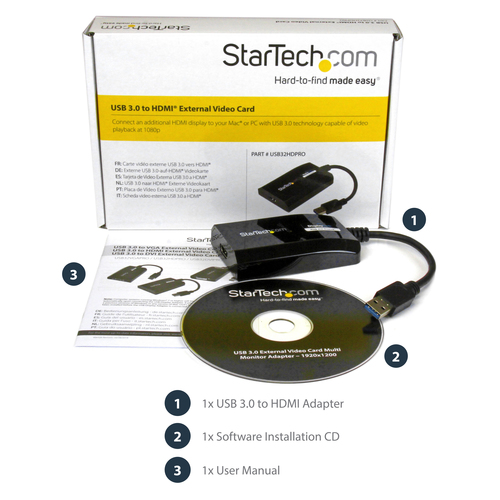

Packaging content

Manual
Yes
Software CD
Yes

Technical details

Compliance certificates
RoHS

Logistics data

Products per master (outer) case
40 pc(s)
Master (outer) case width
426 mm
Master (outer) case length
440 mm
Master (outer) case height
326 mm
Harmonized System (HS) code
84733020
