140W USB-C Wall Charger, 3x USB-C/1x USB-A, PD 3.1 GaN Power Adapter for MacBook, Dell XPS/Inspiron/Precision
- 140W GaN USB-C wall charger with PD 3.1 for charging multiple PD voltage profiles (5V/9V/15V/20V at up to 5A)
- 3x USB Type-C ports (140W max/PD 3.1 support) 1x-USB-A
- Runs cool at full-load use
- Portable travel charger fully supports MacBook M series Pro/Max ensuring high-speed 140W charging
- Charges devices with earlier PD revisions like MacBook/Dell XPS/Precision/Inspiron/iPad Pro
- TUV Safety Listed (IEC 62368-1) and FCC/ICES EMC certified
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Power and Charge USB Devices with this 140W USB Power Delivery 3.1 Wall Charger

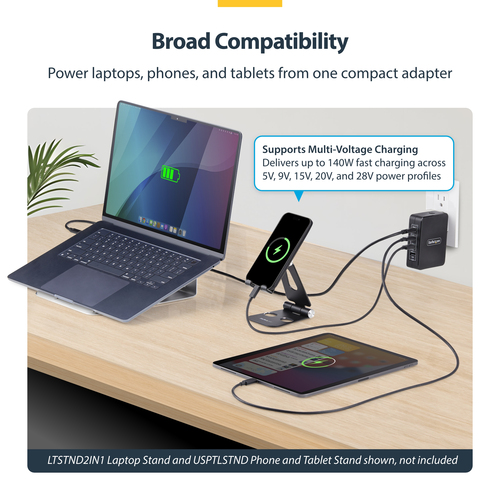

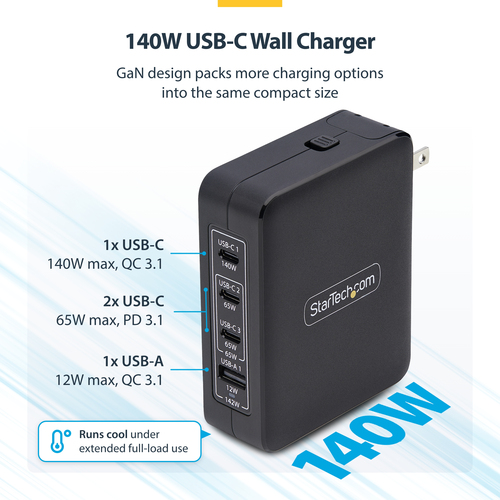

This 140W USB-C GaN Charger delivers a versatile, high-power charging solution for USB-C and USB-A devices, supporting up to 140W with PD 3.1. The power adapter features 3x USB-C (140W max, PD 3.1) and 1x USB-A (12W max) charging ports to carry dedicated chargers for your laptop tablet and smartphone, this one charger can charge all your devices.
Cool Running & Compact

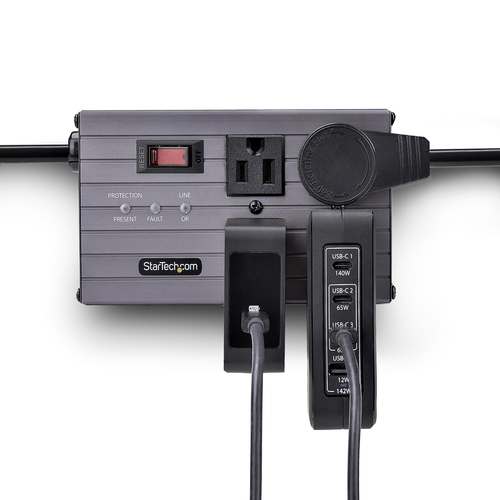

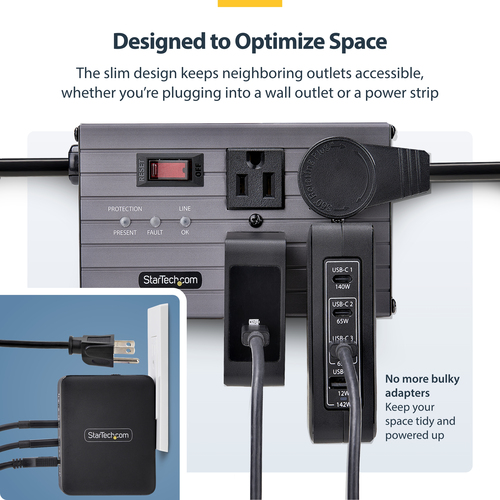

This USB Wall Charger is engineered for optimal cooling, providing a safer, more reliable charging experience. Balancing compact size with powerful functionality, the power adapter features a small foot print (3.7 in/9.6cm x 1.2in/3.08cm x 3in/7.6cm) and weighs just 12.6 oz (358 g). This travel-friendly adapter combines robust capabilities with easy portability, making it an ideal companion on the go.
Designed for Safe Charging
Safety and efficiency are paramount with the 140W USB GaN Charger. It is TUV Safety Listed (IEC 62368-1) and FCC/ICES EMC certified, providing protection against over-voltage, current, and temperature. The Active Power Factor Correction (PF >0.99) enhances efficiency and ensures cool operation. Additionally, it meets DOE Level VI standards, guaranteeing energy efficiency and reliable performance.
Specifications
Performance
- Charger compatibility
- Universal
- Power source type
- AC
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 1
- USB Type-C ports quantity
- 3
- Fast charging
- Yes
- Fast charging technology
- Power Delivery 3.1
- Charger type
- Indoor
- Number of simultaneously connected devices (max)
- 4
- Programmable power supply (PPS)
- Yes
- USB Power Delivery (USB PD)
- Yes
- USB Power Delivery revision
- 3.1
- Power protection features
- Over current, Over voltage, Overheating
Design
- Product colour
- Black
- Housing material
- Plastic
- Gallium nitride (GaN) transistors
- Yes
Power
- Input voltage
- 100 - 240 V
- Input frequency
- 50 - 60 Hz
- Input current
- 2.2 A
- Maximum power
- 142 W
- Maximum output voltage
- 28 V
- Minimum output voltage
- 5 V
- Port 1 output power
- 140 W
- Port 2 output power
- 65 W
- Port 3 output power
- 65 W
- Port 4 output power
- 12 W
- Port 1 output current
- 5 A
- Port 2 output current
- 3.25 A
- Port 3 output current
- 3.25 A
- Port 4 output current
- 2.4 A
Packaging data
- Package width
- 172 mm
- Package depth
- 143 mm
- Package height
- 40 mm
- Package weight
- 435 g
Operational conditions
- Operating temperature (T-T)
- 0 - 25 °C
- Storage temperature (T-T)
- -20 - 80 °C
- Operating relative humidity (H-H)
- 10 - 90%
- Storage relative humidity (H-H)
- 10 - 90%
Packaging content
- Manual
- Yes
- Included power plug types
- AU, EU, NA, UK
Certificates
- Compliance certificates
- UL
Logistics data
- Master (outer) case width
- 384 mm
- Master (outer) case length
- 213 mm
- Master (outer) case height
- 179 mm
- Products per master (outer) case
- 20 pc(s)
