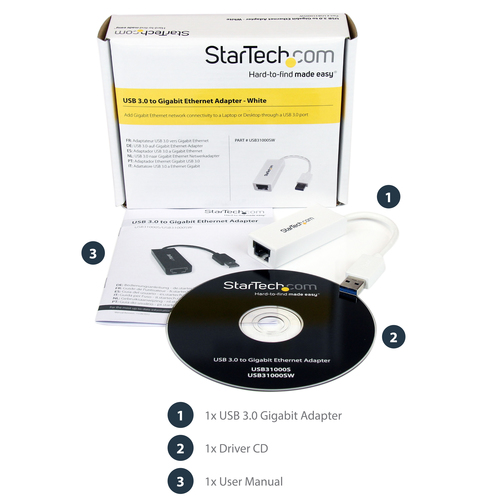

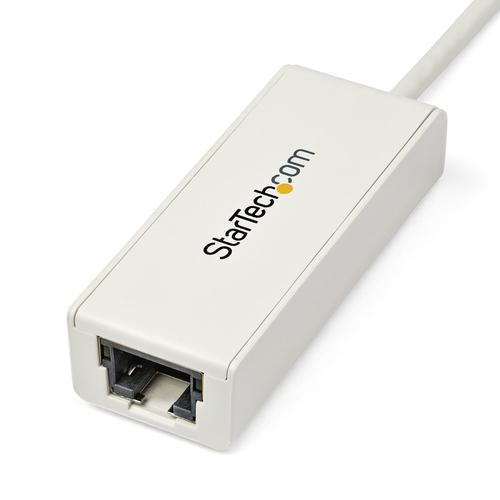

USB 3.0 to Gigabit Ethernet Network Adapter, 10/100/1000 Mbps, USB to RJ45, USB 3.0 to LAN Adapter

Part # USB31000SWUPC 065030849906Warranty: 2 Years0.1 lb

USB 3.0 network adapter adds an Ethernet port to your laptop or desktop computer at Gigabit speeds
USB to RJ45 adapter works with 10/100/1000 Mbps BASE-T networks

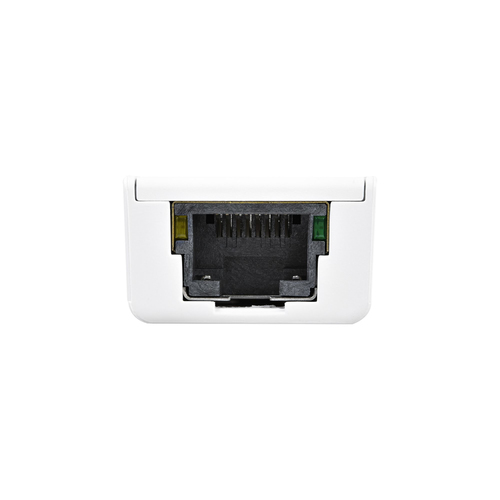

Status & Activity LEDs
4K Jumbo Frames
VLAN Tagging
Wake on LAN

In stockPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

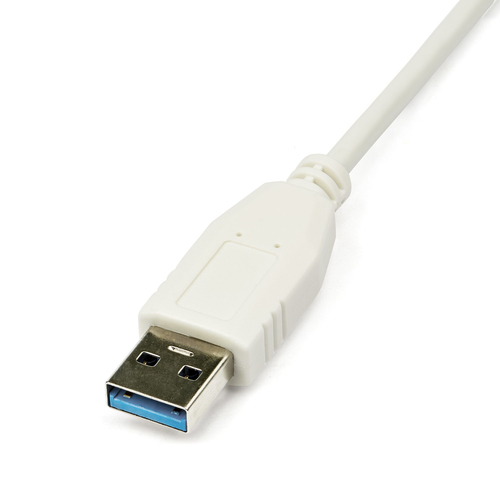

Add Gigabit Ethernet network connectivity to a Laptop or Desktop through a USB 3.0 port

The USB31000SW USB 3.0 to Gigabit Ethernet Adapter adds a single RJ45 Ethernet port to a USB-enabled computer system, with support for Gigabit network connections at full bandwidth when used with a USB 3.0 host connection, unlike USB 2.0 adapters.

This compact USB 3.0 network adapter is backward compatible with older USB 2.0/1.x computer systems (speed limited by USB bus), making it the ideal portable replacement network adapter or laptop accessory. Plus, with support for features such as Jumbo Frames, VLAN tagging and Wake on LAN (WOL), the adapter offers versatile Gigabit network performance for home and business users alike.

Enhance Productivity and Device Management with the StarTech Connectivity Tools Application

Developed to improve performance and security, StarTech Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

• MAC Address Pass-Through Utility : To improve network security.

• Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

Visit www.StarTech.com/Connectivity-Tools for more information and to download the StarTech Connectivity Tools.

Specifications

Ports & interfaces

Connectivity technology: Wired
Host interface: USB
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 1
USB version: 3.2 Gen 1 (3.1 Gen 1)

Network

Maximum data transfer rate: 5000 Mbit/s
Networking standards: IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000BaseT(X)
Full duplex: Yes
Jumbo frames support: Yes
Jumbo frames: 4000
VLAN tagging: Yes
Maximum operating distance: 100 m

Design

Component for: PC/Laptop
Product colour: White
Internal: No
Chipset: ASIX - AX88179
LED indicators: Yes

System requirements

Compatible operating systems: Windows XP(32/64-bit)/ Server 2003(32/64-bit)/ Server 2008 R2/ Vista(32/64-bit)/ 7(32/64-bit)/ 8(32/64-bit) Mac OS 10.6/ 10.7/ 10.8
Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
