StarTech.com U2M2E125 Drag to turn · 10 views
StarTech.comInterface Cards/Adapters

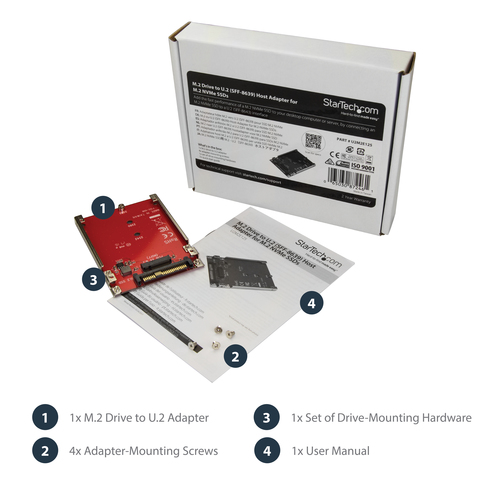

M.2 to U.2 Adapter - For M.2 PCIe NVMe SSDs - PCIe M.2 Drive to 2.5" U.2 (SFF-8639) Host Adapter

Part # U2M2E125UPC 065030872461Warranty: 2 Years0.2 lb

  • Add the fast performance of an M.2 NVMe SSD to your desktop computer or server through a U.2 (SFF-8639)compatible interface on your motherboard and am open 2.5" drive bay
  • The M.2 to U.2 adapter supports one M.2 PCIe NVMe SSD (M-Key)and provides a cost-effective way to add M.2 NVMe performance
  • M.2 Drive to U.2 (SFF-8639)host adapter for M.2 NVMe SSDs
  • Fast and easy setup with native OS support
  • M.2 NVMe SSD adapter
  • U.2 (SFF-8639)host interface
In stockPrice on request
View quote list
  • Reply within 1 business day
  • Volume & business pricing
  • Shipping across Canada & US

Overview

Add the fast performance of an M.2 NVMe SSD to your desktop computer or server by converting the drive through a U.2 (SFF-8639) compatible interface on your motherboard

This PCI Express M.2 to U.2 adapter makes it easy to install an M.2 PCIe NVMe SSD into your desktop PC or server, and connect to the drive through an available U.2 (SFF-8639) compatible interface on your motherboard.

01

Upgrade your system cost-effectively

The M.2 to U.2 adapter is ideal for IT professionals, system integrators and installers, and enthusiasts who are building or upgrading a server or desktop computer. It supports one M.2 PCIe NVMe SSD (M-Key), providing a cost-effective way to add M.2 NVMe performance to your computer or server through an available U.2 (SFF-8639) compatible interface on your motherboard.

02

Easy installation

The M.2 to U.2 adapter works with all desktop PCs and servers that have an available drive bay or a U.2 (SFF-8639) compatible host interface. The adapter card is OS independent, so there are no drivers or software required for installation.

The U2M2E125 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

Ports & interfaces

Host interface
U.2
Output interface
M.2

Design

Internal
Yes
Product colour
Red
Certification
CE, FCC, TAA, REACH

Features

Plug and Play
Yes

Operational conditions

Operating temperature (T-T)
5 - 50 °C
Storage temperature (T-T)
-25 - 70 °C
Operating relative humidity (H-H)
15 - 90%

Technical details

Compliance certificates
RoHS

Weight & dimensions

Width
70 mm
Depth
100 mm
Height
7 mm
Weight
36 g

Packaging data

Screws included
Yes
Quick installation guide
Yes
Package width
143 mm
Package depth
175 mm
Package height
33 mm
Package weight
102 g

Logistics data

Harmonized System (HS) code
84733020
Products per master (outer) case
60 pc(s)
Master (outer) case width
501 mm
Master (outer) case length
385 mm
Master (outer) case height
324 mm
