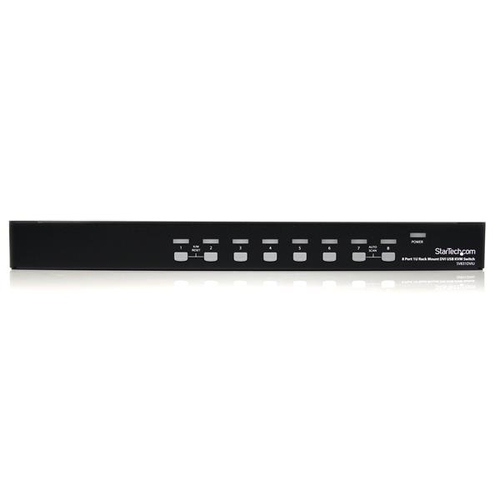

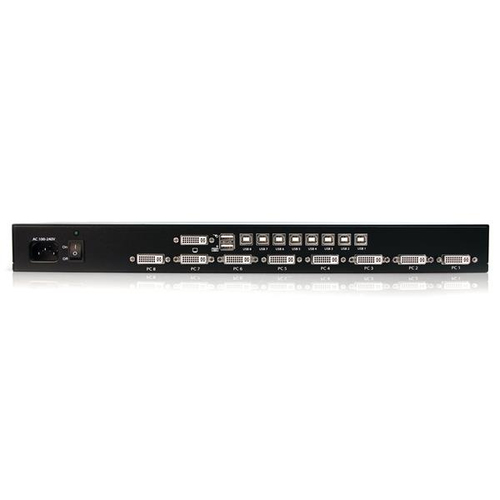

8 Port 1U Rackmount DVI USB KVM Switch - TAA
- Control up to 8 USB computers with DVI or HDMI video, from one keyboard, mouse and monitor
- Compatible with USB and DVI computers such as desktops and servers
- Supports DVI and HDMI resolutions up to 1920x1200
- Supports wireless and combo style mouse and keyboard sets for added flexibility
- Rackmountable
- USB KVM Switch/DVI KVM Switch/
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Control up to 8 USB computers with DVI or HDMI® video, from one keyboard, mouse and monitor
The SV831DVIU 8-Port 1U Rack Mount DVI USB KVM Switch lets you control up to 8 USB-connected computers (each with DVI or HDMI display output) from a single keyboard, mouse and monitor.
The KVM switch offers maximum control, allowing you to switch computers using hot-key commands or front panel push-buttons. Supporting digital resolutions up to 1920x1200 via DVI or HDMI connection (using DVI to HDMI adapter - see accessories), the KVM provides the high resolutions recommended for newer displays, allowing you to take full advantage of your monitor/screen capability.
A perfect addition to any server room or software test lab, this 8-port switch can be rack-mounted into 1U of cabinet space.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
Note: This KVM supports digital signals only, and cannot be used with DVI-to-VGA adapters.
Specifications
Ports & interfaces
- Number of computers controlled
- 8
- Keyboard port type
- USB
- Mouse port type
- USB
- Video port type
- DVI-I
- USB 2.0 ports quantity
- 10
- Audio connections
- No
Network
- Ethernet LAN
- No
Performance
- Maximum resolution
- 1920 x 1200 pixels
- Maximum analog resolution
- 1920 x 1200 pixels
- Daisy chain
- No
Design
- Rack mounting
- Yes
- Rack capacity
- 1U
- Product colour
- Black
- Housing material
- Steel
- LED indicators
- Yes
- Hot keys
- Yes
- Mean time between failures (MTBF)
- 45254 h
- Certification
- CE, FCC
Power
- Input voltage
- 100-240 V
- Input current
- 1.8 A
- Output voltage
- 12 V
- Output current
- 4 A
- External power adapter
- Yes
- Power plug type
- Type M
- Compatible power plug types
- AU, EU, UK, US
Sustainability
- Compliance certificates
- RoHS
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
Weight & dimensions
- Width
- 438 mm
- Depth
- 180 mm
- Height
- 44 mm
- Weight
- 3.5 kg
Packaging data
- Package width
- 595 mm
- Package depth
- 265 mm
- Package height
- 90 mm
- Package weight
- 3.77 kg

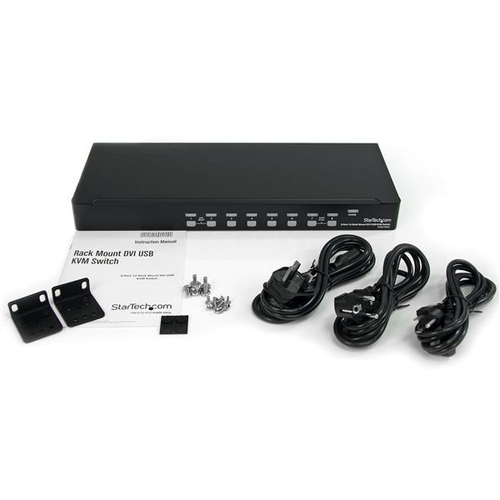

Packaging content
- Manual
- Yes
- Rack mount kit
- Yes
Other features
- IP control
- Yes
Logistics data
- Harmonized System (HS) code
- 85176200
- Master (outer) case width
- 288 mm
- Master (outer) case length
- 610 mm
- Master (outer) case height
- 408 mm
- Products per master (outer) case
- 4 pc(s)
