4 Port USB DisplayPort KVM Switch with Audio - TAA
- Share keyboard mouse and DisplayPort display between four HD multimedia systems
- 4 Port DisplayPort KVM
- DP KVM Switch/4 Port USB DisplayPort KVM Switch with Audio/4Port KVM Switch
- Supports digital DisplayPort 7.1 HD audio or separate 3.5mm analog audio connections
- USB peripheral sharing using the integrated hub eliminates the expense of duplicate devices
- Compatible with Mini DisplayPort adapters for Apple MacBook connectivity
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Share keyboard, mouse, and DisplayPort display between four HD multimedia systems
The SV431DPUA 4 Port USB DisplayPort KVM Switch with Audio combines next generation display standards with seamless KVM control of up to 4 connected PC or Mac computers.
Featuring DisplayPort resolutions of 2560x1600 @60Hz, as well as offering both 7.1 HD digital audio (with supporting displays and sources) and separate 3.5mm stereo audio support. An integrated USB 2.0 hub allows you to share 2 additional peripherals among attached computers as if they were directly connected.
Suitable for high quality static imaging applications such as health care (MRI, X-ray diagnostics, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.
A simple yet comprehensive solution, the 4-port KVM features both front-panel push-button and hotkey switching, and offers a small form factor with rear connection ports, to minimize workspace disruptions.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
Rackmount your KVM switch
If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
Specifications
Ports & interfaces
- Number of computers controlled
- 4
- Keyboard port type
- USB
- Mouse port type
- USB
- Video port type
- DisplayPort
- Console ports
- DisplayPort, 3.5mm headphone, 3.5mm mic, USB A
- Console USB ports quantity
- 4
- USB hub
- Yes
- Audio connections
- Yes
- Headphone outputs
- 5
- Number of microphone inputs
- 5
- DC-in jack
- Yes
Performance
- Maximum resolution
- 3840 x 2400 pixels
- Maximum digital resolution
- 2560 x 1600 pixels
- DDC2B support
- Yes
- Hot-Plug support
- Yes
- Plug and Play
- Yes
- Daisy chain
- No
- Number of users
- 1 user(s)
- Audio channels
- 7.1
Design
- Product colour
- Black
- Housing material
- Steel
- LED indicators
- Yes
- Push button
- Yes
- Hot keys
- Yes
- Mean time between failures (MTBF)
- 136000 h
- Certification
- CE, FCC, UL, TAA, REACH
Display
- Built-in display
- No
- On Screen Display (OSD)
- No
Power
- Input voltage
- 100 - 240 V
- Input current
- 0.8 A
- Output voltage
- 12 V
- Output current
- 1.5 A
- External power adapter
- Yes
- Power plug type
- Type M
- Compatible power plug types
- AU, EU, UK, US
Sustainability
- Compliance certificates
- RoHS
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
Weight & dimensions
- Width
- 221 mm
- Depth
- 130.6 mm
- Height
- 44 mm
- Weight
- 1 kg
Packaging data
- Package width
- 412 mm
- Package depth
- 214 mm
- Package height
- 92 mm
- Package weight
- 1.6 kg

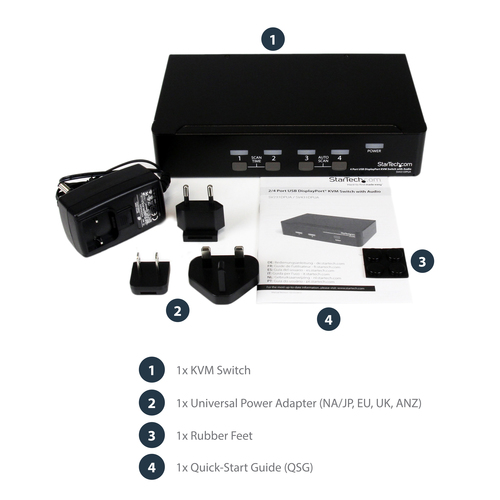

Packaging content
- Manual
- Yes
- AC adapter included
- Yes
- Rubber feet
- Yes
Other features
- Audio support
- Yes
- IP control
- No
Logistics data
- Harmonized System (HS) code
- 85176200
- Master (outer) case width
- 553 mm
- Master (outer) case length
- 438 mm
- Master (outer) case height
- 257 mm
- Products per master (outer) case
- 6 pc(s)
