4 Port HDMI KVMP Switch
- 4-port HDMI USB 2.0 KVMP™ Switch
- One USB console controls four HDMI-interface computers and two additional USB devices
- 2-port USB 2.0 hub built in; fully compliant with the USB 2.0 specification
- Independent switching of KVM, USB peripheral, and audio focus via front panel pushbuttons and hotkeys
- HDMI digital monitor support - fully compliant with HDMI; also HDCP compliant
- Dolby True HD and DTS HD Master Audio support
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
With the unique design and innovative features, the CS1794 USB 2.0 HDMI KVMP™ Switch provides both style and functionality for today's multimedia SOHO environment.
Combining a 4-port switch with a 2-port USB 2.0 hub, the CS1794 provides seamless HDMI signal switching between 4 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from a single console. The CS1794 provides enhanced independent switching via front panel pushbuttons and keyboard hotkeys, and features Video DynaSync™ technology to ensure that HDMI display resolution is always optimized. With integrated digital audio, the CS1794 also allows users to experience high-definition sound, such as Dolby True HD and DTS HD Master Audio.
Ideal for multimedia applications in the office, the CS1794 offers the ultimate in space-saving, streamlined KVM technology for the desktop.
Specifications
Ports & interfaces
- Number of computers controlled
- 4
- Keyboard port type
- USB
- Mouse port type
- USB
- Video port type
- HDMI
- HDMI ports quantity
- 5
- Console ports
- 3.5mm headphone, 3.5mm mic, HDMI, USB A
- Console USB ports quantity
- 2
- USB 2.0 ports quantity
- 4
- USB connector type
- USB Type-A, USB Type-B
- Audio connections
- Yes
- Headphone outputs
- 6
- Number of microphone inputs
- 6
- DC-in jack
- Yes
Performance
- HD type
- WUXGA
- Maximum resolution
- 1920 x 1200 pixels
- Scan interval
- 1,99 s
- HDCP
- Yes
- Power on detection
- Yes
- Firmware upgradeable
- Yes
Design
- Rack mounting
- Yes
- Rack capacity
- 1U
- Product colour
- Black, Stainless steel
- Housing material
- Metal, Plastic
- LED indicators
- Yes
- Push button
- Yes
- Hot keys
- Yes
Display
- Built-in display
- No
- On Screen Display (OSD)
- No
Power
- Power source
- DC
- Input voltage
- 5.3 V
- Power consumption (typical)
- 4.8 W
System requirements
- Windows operating systems supported
- Yes
- Linux operating systems supported
- Yes
- Mac operating systems supported
- Yes
Sustainability
- Compliance certificates
- RoHS
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
Weight & dimensions
- Width
- 262.3 mm
- Depth
- 76.8 mm
- Height
- 44 mm
- Weight
- 530 g
Logistics data
- Harmonized System (HS) code
- 85176200
More in KVM Switch 4 port
ATEN4-Port USB-PS/2 KVMCS84U
StarTech.com"This 4-port USB KVM Switch lets you control multiple USB based computSV431DUSBU
StarTech.com4 Port StarView USB KVM SwitchSV431USB
ATEN18.5 FHD 4Port USB HDMI MultiView Dual Rail LCD KVM SwitchCL3884NW
ATEN4Port DVI QuadinOne KVMP replaces CM1164CM1164A
ATEN4Port HDMI QuadinOne KVMPCM1284
ATEN4Port USB DVI Dual Display PP4.0 Secure KVMCS1144D4

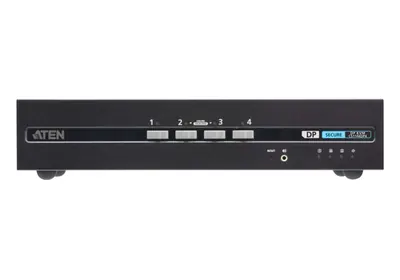

ATEN4Port USB DP Dual Display PP4.0 Secure KVMCS1144DP4
