4-Port Dual DisplayPort KVM Switch - 4K 60Hz - TAA
- This 4 port Dual DP KVM switch combines dual 4K 60Hz displays with KVM switch control of four connected computers
- Maximum productivity with dual-display, multi-computer access
- Multimedia control with separate 3.5mm microphone and speaker support
- Support for 4K 60Hz
- Share USB peripherals with built-in 2-port USB hub
- 4 port KVM/Desktop KVM switch/DisplayPort KVM/DisplayPort KVM switch/DisplayPort switch/Dual monitor KVM/KVM DisplayPort/DisplayPort 1.2 KVM
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

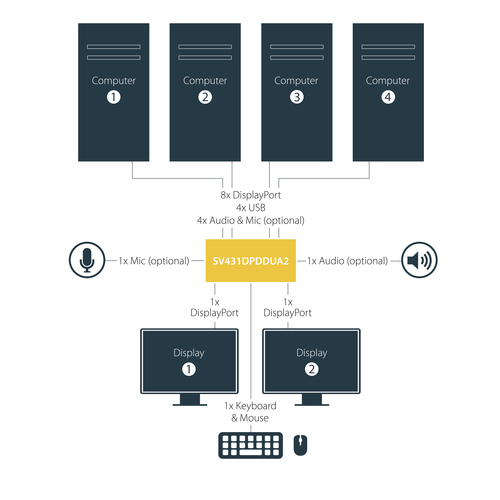

This 4-port Dual DP KVM switch combines dual 4K 60Hz displays with KVM switch control of four connected PC and MAC computers
This 4-port dual DP KVM switch combines dual 4K 60Hz displays with KVM switch control of four connected PC and Mac computers. It features audio and USB peripheral support along with dual-display capability, which makes it easy to create a multimedia workstation that can switch between two dual-head DP systems.
Maximize productivity with dual video
With two DP video inputs and control of four different computers, this Ultra HD KVM switch helps maximize productivity by giving you the freedom to multitask. Each of the DP ports supports resolutions up to 4K 60Hz, for maximum screen viewing space.
Astonishing picture quality
The dual DisplayPort KVM switch supports resolutions up to 4K at 60Hz, and can drive two large DP displays with ease. An ideal solution for creating workstations where high-quality imaging is critical, such as for graphic design.
Convenient multimedia and peripheral sharing
The KVM switch features full multimedia control with separate 3.5 mm microphone and speaker ports and two USB ports separate from the HID keyboard and mouse. The independent audio support lets you share independent analog audio from each of your connected computers, while the 2-port USB hub enables you to share USB peripherals between each connected computer.
The SV431DPDDUA2 is TAA compliant and backed by a 2-year StarTech.com warranty.
Specifications
Ports & interfaces
- Number of computers controlled
- 4
- Keyboard port type
- USB
- Mouse port type
- USB
- Video port type
- DisplayPort
- DisplayPorts quantity
- 10
- Console ports
- 3.5mm headphone, 3.5mm mic, DisplayPort, USB A
- Console USB ports quantity
- 4
- USB hub
- Yes
- USB connector type
- USB Type-A
- Audio connections
- Yes
- DC-in jack
- Yes
Performance
- HD type
- 4K Ultra HD
- Maximum resolution
- 3840 x 2160 pixels
- Data transfer rate (max)
- 0.5 Gbit/s
- Scan interval
- 3,8,15,30 s
- Daisy chain
- No
Design
- Rack mounting
- Yes
- Rack capacity
- 2U
- Product colour
- Black
- Housing material
- Steel
- LED indicators
- Power
- Hot keys
- Yes
- Mean time between failures (MTBF)
- 142000 h
- Certification
- CE, FCC, TAA, REACH
Display
- Built-in display
- No
Power
- Power source
- AC
- Input voltage
- 100 - 240 V
- Input current
- 0.6 A
- Output voltage
- 12 V
- Output current
- 1.5 A
- Power consumption (typical)
- 18 W
- External power adapter
- Yes
- Power plug type
- Type M
- Compatible power plug types
- AU, EU, JP, UK, US
Sustainability
- Compliance certificates
- RoHS
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -10 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
Weight & dimensions
- Width
- 216 mm
- Depth
- 127 mm
- Height
- 63 mm
- Weight
- 1.2 kg
Packaging data
- Package width
- 244 mm
- Package depth
- 296 mm
- Package height
- 86 mm
- Package weight
- 1.8 kg

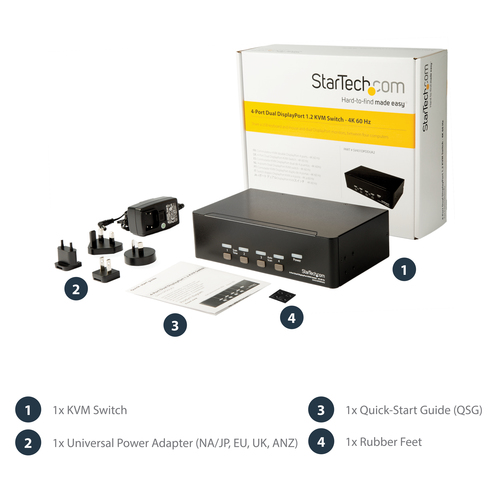

Packaging content
- Quick installation guide
- Yes
- Rubber feet
- Yes
Other features
- Audio support
- Yes
- IP control
- No
Logistics data
- Harmonized System (HS) code
- 85176200
- Master (outer) case width
- 514 mm
- Master (outer) case length
- 321 mm
- Master (outer) case height
- 299 mm
- Products per master (outer) case
- 6 pc(s)
