4 Port HDMI KVM Switch - 4K 30Hz - Dual Display - TAA
- This 4K HDMI KVM with dual monitor support lets you control four HDMI computers with a single mouse, keyboard and dual monitors up to 4K 30Hz
- Support for dual 4K 30Hz displays
- Separate 3.5 mm auxiliary support
- Built-in USB 3.0 port plus independent HID keyboard/mouse ports
- No software or drivers required
- 4 port HDMI KVM switch/4 port KVM switch/4K KVM Switch/dual display KVM/dual monitor KVM switch/Dual screen KVM/KVM switch with HDMI/KVM switch HDMI dual monitor
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
This 4K HDMI KVM with dual monitor support lets you control four HDMI computers with a single mouse, keyboard and dual monitors up to 4K at 30Hz

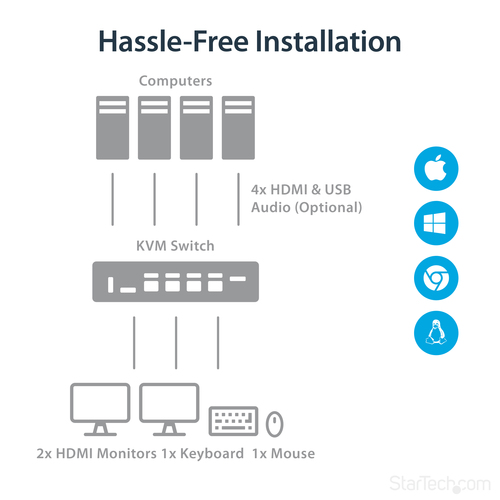

This 4-port HDMI KVM switch lets you control four HDMI computers with a single mouse, keyboard and monitor up to 4K 30Hz. The KVM also features 3.5 mm audio and a built-in 2-port USB 3.0 hub.
4K at 30Hz UHD dual display
With support for ultra-high-definition 4K 30Hz resolutions, this 4-port KVM switch can drive dual HDMI displays with crystal clarity, making it ideal for graphical applications that require UHD capability.
Convenient and cost-effective USB 3.0 peripheral sharing
This 4-port KVM switch offers two USB 3.0 ports, as well as four HID keyboard and mouse ports, so you can share peripheral devices between each computer and avoid the cost of separate equipment. The USB 3.0 hub automatically switches your connected devices to the selected computer, saving you the hassle of disconnecting and reconnecting peripherals.
Complete multimedia capability
Along with dual UHD video capability, this KVM switch features auxiliary 3.5 mm dual-channel bi-directional audio ports. This independent analog audio lets you share your analog audio devices such as speakers or a microphone between each of your connected computers, giving you complete multimedia control of your systems.
The SV431DHD4KU is TAA compliant and backed by a StarTech.com 2-year warranty with free lifetime technical support.
Specifications

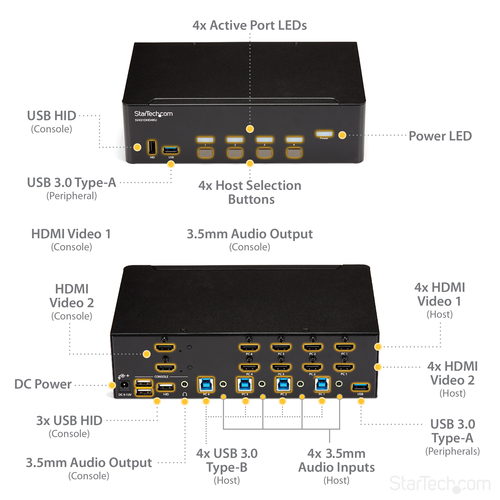

Ports & interfaces
- Number of computers controlled
- 4
- Keyboard port type
- USB
- Mouse port type
- USB
- Video port type
- HDMI
- HDMI ports quantity
- 10
- Console ports
- 3.5mm headphone, HDMI, USB A
- Console USB ports quantity
- 6
- USB connector type
- USB Type-A
- Headphone outputs
- 4
Performance
- HD type
- 4K Ultra HD
- Maximum resolution
- 3840 x 2160 pixels
- Data transfer rate (max)
- 5 Gbit/s
- Scan interval
- 3,8,15,30 s
Design
- Rack mounting
- Yes
- Product colour
- Black
- Housing material
- Steel
- LED indicators
- Power, Status
- Hot keys
- Yes
- Mean time between failures (MTBF)
- 168000 h
- Certification
- CE, FCC, TAA, REACH
Display
- Built-in display
- No
Power
- Power source
- AC
- Input voltage
- 100 - 240 V
- Input current
- 0.6 A
- Output voltage
- 12 V
- Output current
- 1.5 A
- Power consumption (typical)
- 18 W
- External power adapter
- Yes
- Compatible power plug types
- AU, EU, JP, UK, US
Sustainability
- Compliance certificates
- RoHS
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -10 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
Weight & dimensions
- Width
- 130 mm
- Depth
- 220 mm
- Height
- 63 mm
- Weight
- 1.2 kg
Packaging data
- Package width
- 296 mm
- Package depth
- 252 mm
- Package height
- 88 mm
- Package weight
- 1.8 kg

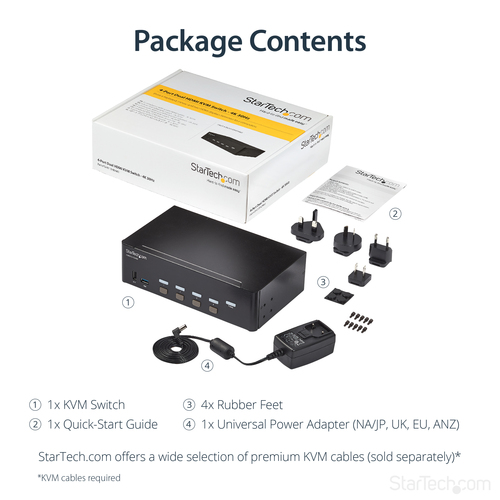

Packaging content
- Quick installation guide
- Yes
- Rubber feet
- Yes
Other features
- IP control
- No
Logistics data
- Harmonized System (HS) code
- 85176200
- Master (outer) case width
- 509 mm
- Master (outer) case length
- 320 mm
- Master (outer) case height
- 298 mm
- Products per master (outer) case
- 6 pc(s)
