7-Port USB 2.0 Hub - Metal Industrial USB-A Hub with ESD Protection & 350W Surge Protection - Din
- Protects your connected devices with 15kV Air and 8kV Contact ESD protection
- Surge protection of 350W on the downstream and upstream USB ports
- Mount industrial USB hub where required with built-in mounting brackets or included DIN rails
- Offers flexible, wide-range power inputs with a 7-24V DC terminal block
- Adds seven USB 2.0 ports from a single USB connection
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Industrial Grade | 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 480 Mbps
This TAA compliant 7-port industrial USB 2.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.
Perfect for Harsh Environments
This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.
Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 55°C) and offers surge and ESD protection to each USB port, which can help prevent damage to your connected devices.
Connect More USB Devices
Designed for a high volume of connections, this robust USB 2.0 hub offers 7 connection ports, for connecting more USB devices and peripherals.
Locate the Hub Where You Need It Most
With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets and included DIN mount rails, you can securely mount the USB 2.0 hub to most surfaces such as a wall, under a desk or rack.
StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.
Works with Older USB Devices
The rugged USB hub supports the full 480 Mbps bandwidth of USB 2.0 and is backward compatible with previous USB devices.
The ST7200USBM is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications

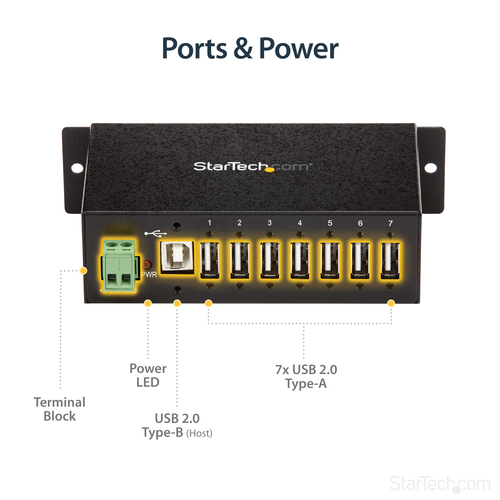

Ports & interfaces
- Host interface
- USB 2.0 Type-B
- Hub interfaces
- USB 2.0
- USB 2.0 ports quantity
- 7
- Ports quantity
- 7
- Card reader integrated
- No
- Terminal block port
- Yes
- DC-in jack
- No
Features
- Data transfer rate
- 480 Mbit/s
- Product colour
- Black
- Housing material
- Steel
- Surge protection
- Yes
- LED indicators
- Yes
- Hot-swap
- Yes
- Plug and Play
- Yes
- Certification
- CE, FCC, RoHS, REACH, TAA
Power
- Input voltage
- 7 - 24 V
Weight & dimensions
- Width
- 61.5 mm
- Depth
- 133 mm
- Height
- 36.3 mm
- Weight
- 283 g
Packaging data
- Package width
- 218 mm
- Package depth
- 151 mm
- Package height
- 54 mm
- Package weight
- 500 g

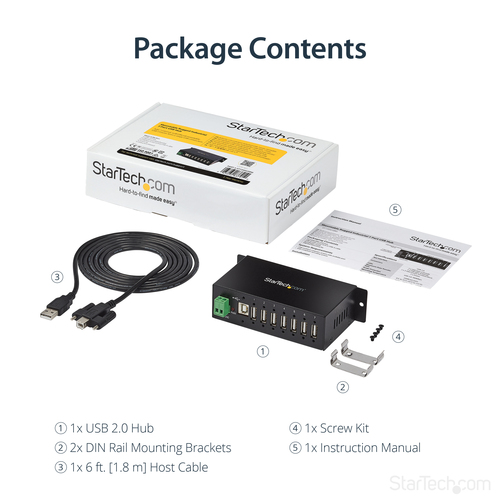

Packaging content
- Cables included
- USB
- Manual
- Yes
- DIN rail kit included
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 55 °C
- Storage temperature (T-T)
- -20 - 85 °C
- Operating relative humidity (H-H)
- 5 - 95%
Performance
- Mean time between failures (MTBF)
- 170227 h
Logistics data
- Master (outer) case width
- 524 mm
- Master (outer) case length
- 434 mm
- Master (outer) case height
- 272 mm
- Products per master (outer) case
- 25 pc(s)
- Harmonized System (HS) code
- 84719000
Other features
- Chipset
- Terminus - FE2.1
