HDMI over IP Extender Kit with Video Wall Support - 1080p - TAA

Part # ST12MHDLAN2KUPC 065030878456Warranty: 2 Years4.95 lb

HDMI over IP extender kit extends your HDMI signal and RS232 control to one or multiple displays

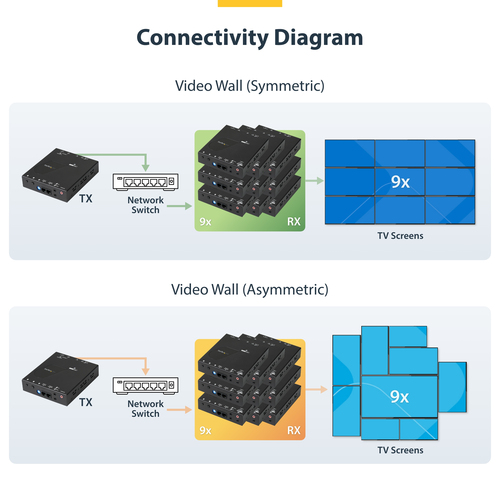

HDMI over Cat5e/Cat6 extender lets you design video walls using single or multiple video sources with multiple receivers
HDMI over Ethernet extender comes with a mobile app that lets you manage and control digital signage

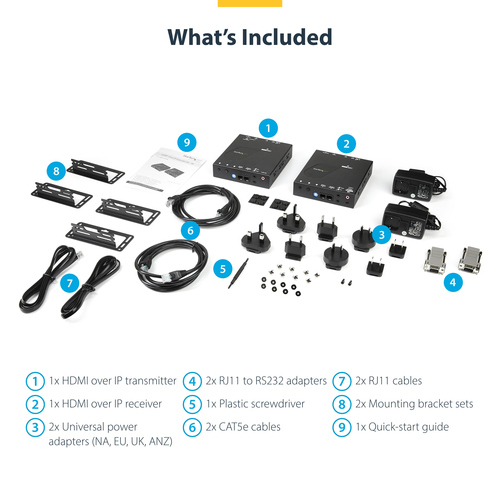

HDMI transmitter and receiver kit includes shelf-mounting hardware
Supports video resolutions up to 1080p
Point-to-Point/Point-to-Multipoint/Multipoint-to

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

HDMI® Video over Cat5e or Cat6 |Multiple Sources to Multiple Displays | Mobile Control App

This HDMI over IP extender kit distributes video to a remote location, over your local area network (LAN) and Cat5e or Cat6 Ethernet cabling. By combining this kit with additional receivers (sold separately) and an Ethernet switch (sold separately) you can distribute an HDMI source to multiple locations and create video walls using several remote displays and receivers in the same location.

You can also use multiple transmitters on the same network to distribute different video sources or connect the transmitter directly to a receiver at up to 330 ft. (100 m), in a point-to-point setup. Remote control of serial devices is supported through RS-232 extension.

Resolutions up to 1080p, with Audio

With support for video resolutions up to 1080p (1920 x 1080 at 60Hz), the transmitter also supports digital and analog audio to the receiver and analog audio from the receiver to the transmitter.

Mobile Control Through a Free App

The kit includes an easy-to-use online app to manage your IP video distribution.

The app is available on iOS for an iPhone or iPad, and Android for a smartphone or tablet.

Download the StarTech.com Video Control software to manage your IP video distribution.

NOTE: Your router must support IGMP snooping. Please refer to your network switch or router documentation to ensure IGMP snooping is supported and enabled.

Hassle-Free Installations

The HDMI transmitter/receiver kit includes optional shelf-mounting hardware. It uses Cat5e or Cat6 cables and works with existing network infrastructures, eliminating the expense of running proprietary cables.

ST12MHDLAN2K is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

Features

Type: AV transmitter & receiver
Maximum resolution: 1920 x 1080 pixels
Cable types supported: Cat5e, Cat6
Maximum transfer distance: 100 m
Maximum refresh rate: 60 Hz
Audio output channels: 7.1 channels
LED indicators: Link, Network, Power, Status
Supported video modes: 720p, 1080p
Supported graphics resolutions: 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800, 1360 x 768 (WXGA), 1440 x 900, 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Rack mounting: Yes
Daisy chain: Yes
Rubber feet: Yes
Product colour: Black
