VGA Video Extender over Cat 5 with Audio - TAA
- Extend and distribute a VGA signal and the accompanying audio to a remote display over Cat5 cable
- 1440x900 @ 150ft/50m
- 1280x1024 @ 300ft/100m
- 1024x768 @ 500ft/150m
- VGA Extender
- VGA over Cat5
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Extend and distribute a VGA signal and the accompanying audio to a remote display over Cat5 cable
The ST122UTPA VGA Video Extender over Cat 5 with Audio allows up to 4 (2 local and 2 remote) monitors to be connected to a single PC. The video signal and corresponding audio are sent to the remote unit over standard 4 pair Category 5 or better (Cat 5e recommended) UTP cable, supporting extended video distances of up to 150m / 500ft. The VGA video and audio extender includes a local transmitter and a remote receiver, providing an out-of-the box solution that's perfect for point to point digital signage applications that require audio. To simplify installation, this kit also includes a mounting bracket for the ST122UTPA receiver to install onto walls, desks or cabinets for a tidy setup. This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
Specifications
Features
- Type
- AV transmitter & receiver
- Cable types supported
- Cat5e, Cat6
- Maximum transfer distance
- 150 m
- Supported graphics resolutions
- 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900
- Material
- Aluminium
- Daisy chain
- No
- Product colour
- Black
- Certification
- CE, FCC
Ports & interfaces
- RJ-45 input ports
- 1
- RJ-45 output ports
- 1
- VGA (D-Sub) input ports
- 2
- VGA (D-Sub) output ports
- 2
- Audio input
- 2 x 3.5 mm
- Audio output
- 2 x 3.5 mm
- DC-in jack
- Yes
Power
- Operating voltage
- 12 V
- Output current
- 0.5 A
- Power consumption (typical)
- 6 W
- External power adapter
- Yes
Weight & dimensions
- Receiver dimensions (WxDxH)
- 83 x 60 x 20 mm
- Receiver weight
- 181 g
- Transmitter dimensions (WxDxH)
- 83 x 60 x 20 mm
- Transmitter weight
- 181 g
Packaging data
- Package dimensions (WxDxH)
- 92 x 242 x 188 mm
- Package width
- 186 mm
- Package depth
- 242 mm
- Package height
- 92 mm
- Package weight
- 1.2 kg

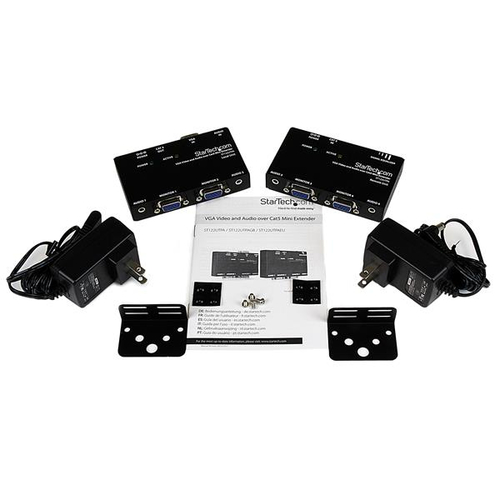

Packaging content
- AC adapter included
- Yes
- Manual
- Yes
- Mounting brackets included
- Yes
Technical details
- Audio support
- Yes
- Compliance certificates
- RoHS
Logistics data
- Master (outer) case width
- 410 mm
- Master (outer) case length
- 508 mm
- Master (outer) case height
- 322 mm
- Products per master (outer) case
- 12 pc(s)
