1-Port Gigabit PCIe Network Adapter Card, 10/100/1000Mbps PCI Express LAN Card, NIC, Realtek

Part # ST1000SPEX2TUPC 065030911023Warranty: 2 Years0.22 lb

TAA-Compliant Gigabit Network Card with Realtek RTL8111H chip adds a 1Gbps ethernet interface to a desktop/server
Features link speed/activity LED indicators
10/100/1000Mbps Network Adapter Card supports 9K jumbo frames/Wake-on-LAN (WoL)/VLANs for efficient network management
PCI Express NIC features pre-installed full-profile bracket with low-profile bracket included
Works with Windows/Windows Server/Linux and Intel/AMD hardware platforms that have a PCIe x1/x4/x8/x16 slot

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Add a 10/100/1000Mbps Ethernet port to any PC through a PCI Express slot

This TAA-compliant Gigabit Ethernet card adds a gigabit Ethernet interface to a desktop or server.

Plug And Play Compatible

This 1-port network interface card is plug-and-play compatible, with drivers that auto-install on major operating systems such as Windows, Windows Server, and Linux. It is compatible with Intel and AMD hardware platforms equipped with PCI Express x1, x2, x4, x8, or x16 slots.

Performance and Management

This network card features link speed and activity LED indicators for visual network speed verification and issue diagnosis.

This PCIe network adapter supports 9K jumbo frames to minimize packet overhead, Wake-on-LAN (WoL) for remote system booting, auto-negotiation between 10/100/1000Mbps, and VLANs for streamlined network management.

Universal Fit

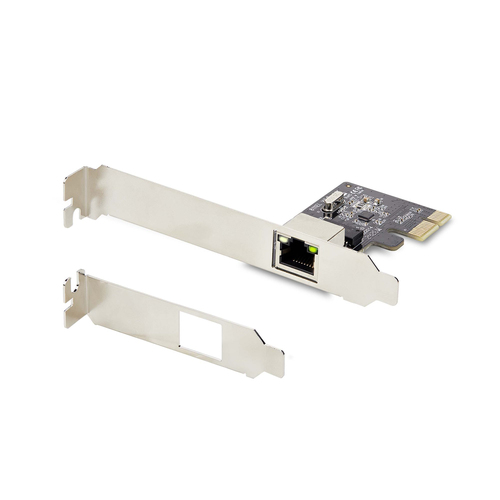

The PCI Express NIC includes a pre-installed standard-profile bracket for full-sized desktops and servers, as well as a low-profile bracket for compatibility with small form-factor computers.

Specifications

Ports & interfaces

Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 1
PCI Card form factor: Full-height (low-profile)

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Wake-on-LAN ready: Yes
Jumbo frames support: Yes
Auto-negotiation: Yes
Jumbo frames: 9000
VLAN support: Yes

Design

Component for: PC/Server
Product colour: Black
Internal: Yes
Chipset: Realtek RTL8111H
LED indicators: Activity, Link

System requirements

Windows operating systems supported: Windows 11 Enterprise x64, Windows 8.1 Pro, Windows 10, Windows 11 Home, Windows 8.1 Pro x64, Windows 10 Education, Windows 11 Pro, Windows 8.1 x64, Windows 10 Education x64, Windows 11 x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 8, Windows 10 Home x64, Windows 8 Enterprise, Windows 10 IOT Core, Windows 8 Enterprise x64, Windows 10 IoT Enterprise, Windows 8 Pro, Windows 10 Pro, Windows 8 Pro x64, Windows 10 Pro x64, Windows 8 x64, Windows 10 x64, Windows 8.1, Windows 11, Windows 8.1 Enterprise, Windows 11 Enterprise, Windows 8.1 Enterprise x64
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2016, Windows Server 2019, Windows Server 2022
