Ethernet to Parallel Network Print Server, 10/100Mbps LAN, WebUI Enabled, Centronics Ethernet

Part # PM1115P3UPC 065030897716Warranty: 2 Years0.55 lb

Ethernet to parallel server converts a parallel printer into a network printer
Enable remote LAN printing/printer sharing across 10/100Mbps networks
Windows/macOS/Linux
Centralized control via Windows software
WebUI interface for any OS support
Ideal for SoHO/office/government and educational institutions

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Add and share a parallel printer to an existing Ethernet network

The Ethernet to Parallel Network Print Server converts a standard parallel printer into a network printer over a 10/100Mbps compatible network. Take advantage of remote printing or printer sharing while extending the life of legacy hardware by integrating it into modern network environments.

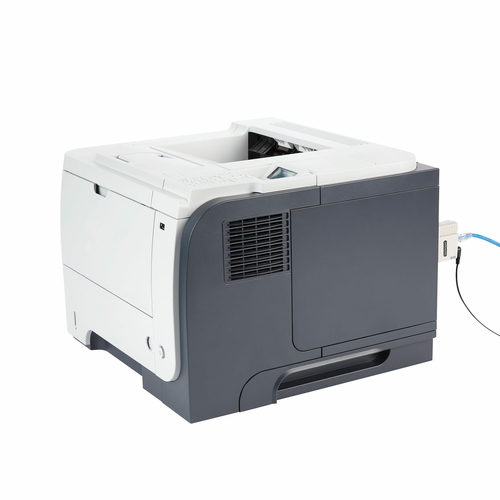

Network Printer

Enable printing support among multiple network-connected computers, maximizing the functionality of existing printers. The print server adapter supports 10 and 100Mbps Ethernet speeds with auto-negotiation.

Place the printer at any convenient shared location allowing multiple users to access printing services without delays.

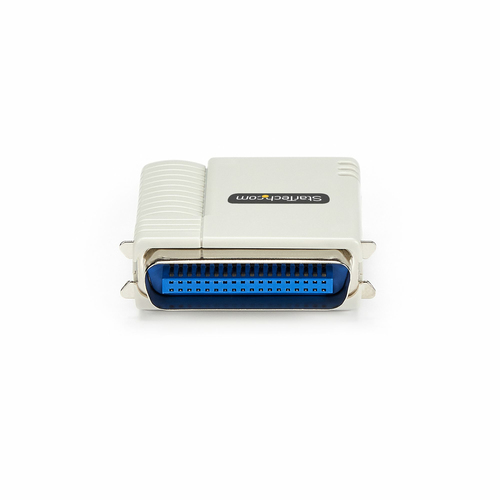

Connect a Parallel Printer

This compact Ethernet print server connects directly to the printer's Centronics port for a secure and discreet network solution. To configure and add the printer to the network, use the web interface from any operating system or the Windows®-based installation wizard. The print server also supports IPX, TCP/IP (LPR, IPP, RAW 9100), NetBEUI, AppleTalk, SNMP v1 and 2, SMB.

Specifications

Features

Internal: No
Product colour: White
LED indicators: LAN, Status

Network

Network connection type: Ethernet LAN
Networking standards: IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates: 10,100 Mbit/s

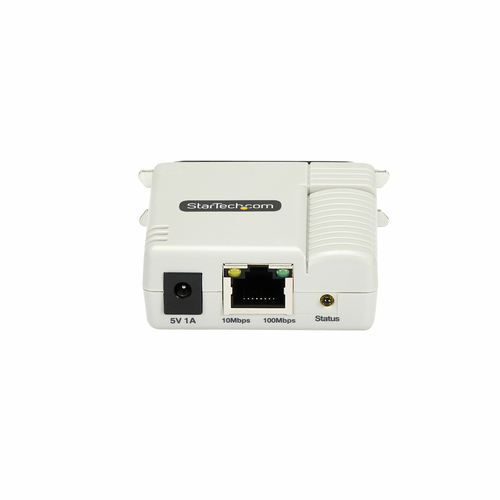

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Parallel ports quantity: 1
DC-in jack: Yes

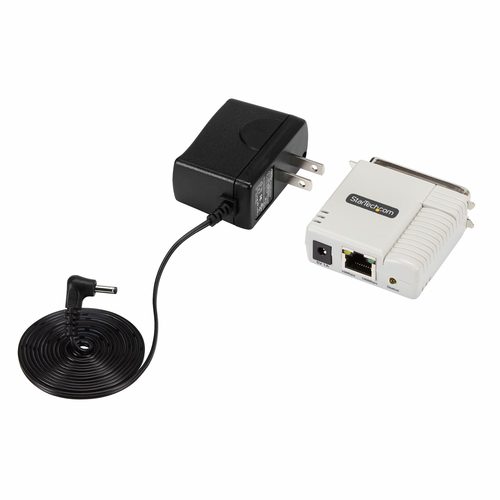

Power

AC input voltage: 100 - 240 V
Input current: 0.3 A
AC adapter output voltage: 5 V
AC adapter output current: 1 A

Software

Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported: Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2016, Windows Server 2019
