Mini PCI Express Gigabit Ethernet Network Adapter NIC Card - TAA

Part # ST1000SMPEXUPC 065030846554Warranty: 2 Years0.3 lb

Add a Gigabit RJ45 port through a Mini PCI Express slot
Mini PCIe Gigabit Network Adapter Card
mini pci express gigabit
mini pcie gigabit
mini pci express nic
gigabit ethernet adapter

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

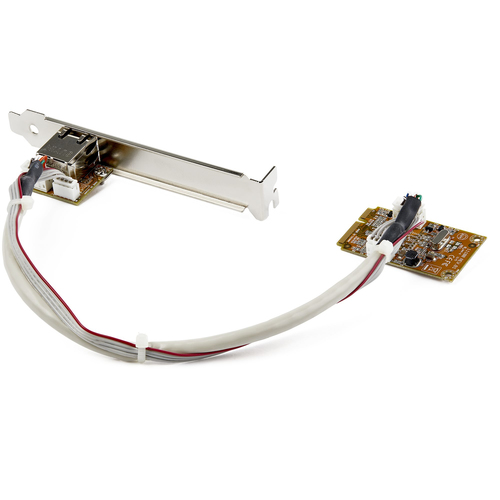

Add a Gigabit RJ45 port through a Mini PCI Express slot

The ST1000SMPEX Mini PCI Express Gigabit Network Adapter Card adds 1000Mbps network connectivity to a Mini PCI Express (PCI Express Mini Card, Mini PCIe) enabled computer system, such as Mini-ITX motherboards.

Supporting features such as NDIS5 checksum and large send offload for lower CPU utilization, Wake-on-LAN (WOL) and Remote Wake-up power management, jumbo frames and VLAN tagging, this Mini PCI Express Gigabit Adapter is ready to handle a wide variety of scenarios.

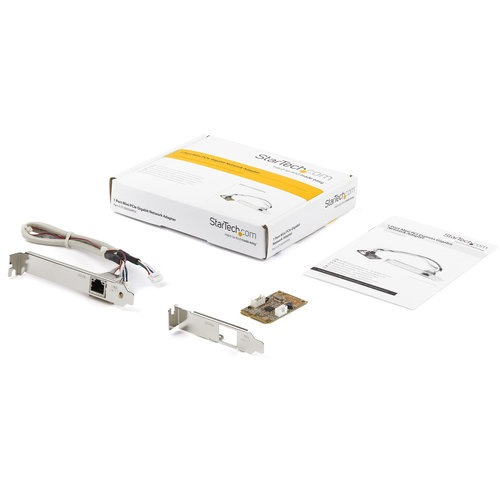

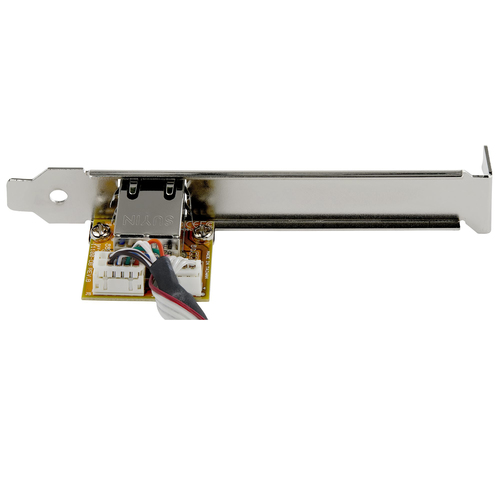

Perfect for small form factor or embedded systems that originally lack Gigabit networking capability, or for adding a network connection without taking up a full-sized PCI Express slots, this high quality Mini PCIe Network Adapter includes a low profile/half-height bracket for additional installation options.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

Ports & interfaces

Connectivity technology: Wired
Host interface: Mini PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 1

Network

Maximum data transfer rate: 1000 Mbit/s
Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Ethernet LAN: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Wake-on-LAN ready: Yes
Auto MDIX IEEE: Yes
Full duplex: Yes
Jumbo frames support: Yes
Jumbo frames: 9000
VLAN tagging: Yes

Design

Internal: Yes

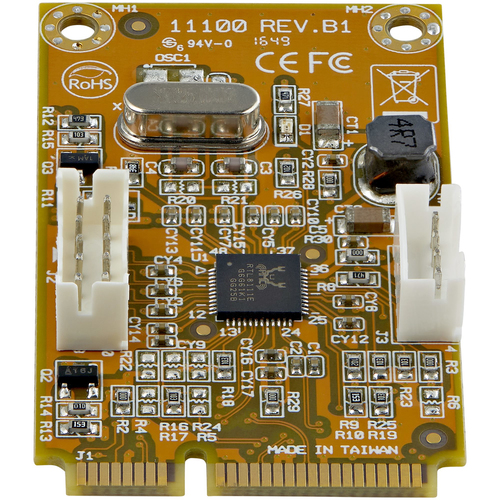

Chipset: Realtek - RTL8111E
LED indicators: Activity, Link
Mean time between failures (MTBF): 482765 h
Certification: CE, FCC

System requirements

Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported: Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
