StarTech.com SMFIBSCSC2
StarTech.comInfiniBand & Fibre Optic Cables

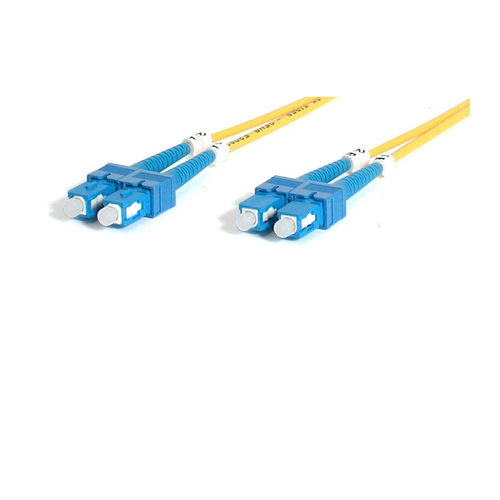

Fiber Optic Cable - Single-Mode Duplex 9/125 - LSZH - SC/SC - 2 m

Part # SMFIBSCSC2UPC 065030788281Warranty: Lifetime0.1 lb

  • Connect fiber network devices for high-speed transfers with LSZH rated cable
  • 2m SC Fiber Optic Cable/2 m SC to SC Fiber Patch Cable/2 meter SC Fiber Cable/Single-Mode Patch Cable/2m Single-Mode 9/125 Duplex Fiber Optic Cable SC to SC
  • OS1 (9/125)
  • LSZH (Low-Smoke, Zero-Halogen) cable jacket
  • Attenuation loss meets or exceeds industry standards
  • Ideal solution for data applications requiring high speed data transmission
Special orderPrice on request
View quote list
  • Reply within 1 business day
  • Volume & business pricing
  • Shipping across Canada & US

Overview

Connect fiber network devices for high-speed transfers with LSZH rated cable

The SMFIBSCSC2 2m SC to SC Single-Mode Duplex Fiber Cable features 9/125 micron fiber for high-speed, high bandwidth data transmissions over Gigabit Ethernet and Fiber Channel networks, with support for duplex single-mode applications.

This SC-SC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire - an ideal solution for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.

Each Duplex 9/125 (OS1) Single-Mode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability, and is backed by our lifetime warranty.

Specifications

Features

Cable length
2 m
Fibre optic type
OS1
Connector 1
SC
Connector 2
SC
Connector 1 gender
Male
Connector 2 gender
Male
Product colour
Yellow
Full duplex
Yes
Core diameter
9 µm
Cladding diameter
125 µm
Fiber mode structure
Single-mode
Data transfer rate
100 Gbit/s
Jacket material
Low smoke zero halogen (LSZH)

Certificates

Compliance certificates
CE, RoHS

Operational conditions

Operating temperature (T-T)
-20 - 60 °C
Storage temperature (T-T)
-20 - 60 °C

Packaging data

Package width
198 mm
Package depth
153 mm
Package height
28 mm
Package weight
50 g

Logistics data

Master (outer) case width
350 mm
Harmonized System (HS) code
85447000
Master (outer) case length
245 mm
Master (outer) case height
170 mm
Products per master (outer) case
240 pc(s)
