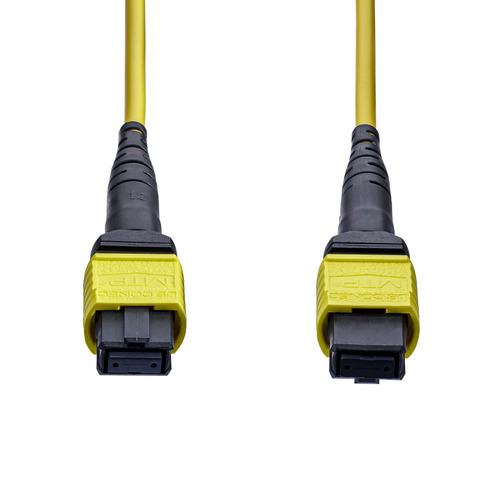

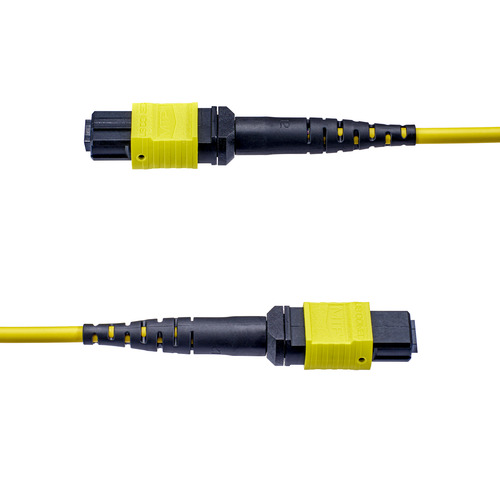

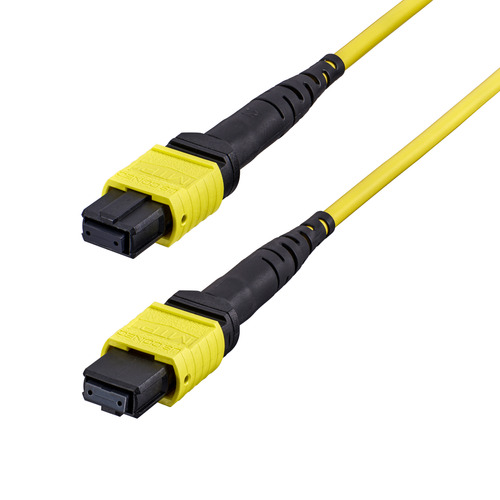

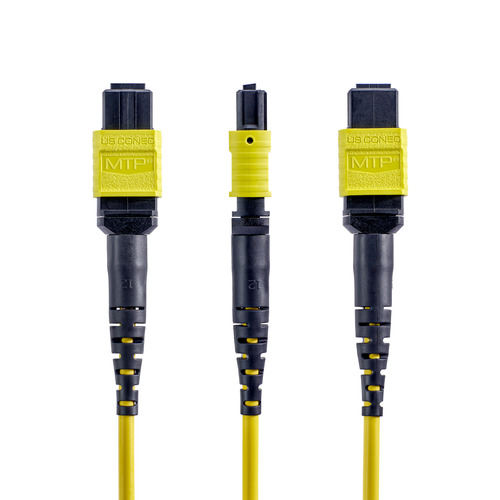

2m (6ft) MTP®/MPO Fiber Optic Cable, 12F Type-A, OS2 Single Mode MTP/APC Female Fiber Patch Cable

Part # OS2MTP12AOFNP2MUPC 065030930338Warranty: Lifetime0.02 lb

MTP®/APC Female Plenum-Rated OS2 Single Mode fiber cable supports 100Gbps full-duplex connections
Cable individually tested for signal integrity
Ideal for high-density network applications such as data centers/SANs and QSFP+ connections
12-Fiber MTP® Elite Type-A Straight Pinout
1310nm or 1550nm
Ensure compliant cable runs with an OFNP Plenum-rated jacket

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Safely route high-density MTP/MPO fiber cabling in plenum spaces

This OS2 MTP®/MPO single mode fiber cable supports high-density 40G and 100G connections between switches and servers, helping reduce cable bulk and simplify routing across data hall racks. The 12-fiber design supports high-speed MTP®/MPO connectivity for multi-fiber network applications.

Engineered for Reliable Single Mode Performance

Constructed with OS2 9/125µm laser-optimized Corning glass, this cable delivers consistent high-bandwidth transmission for long-distance data center and backbone links. Type-A polarity MTP® Elite connector maintains straight-through fiber mapping for multi-fiber connections, allowing transmit/receive alignment to be managed through cassettes or patching methods. Each cable is individually tested for signal integrity.

Plenum-Rated for In-Building Installation

The OFNP plenum-rated jacket meets strict fire and low-smoke requirements, making it suitable for routing through air-handling spaces in commercial and enterprise environments, including data center and in-wall pathways.

Deploy in Scalable Fiber Networks

Designed for use with structured MTP®/MPO systems, including multi-fiber trunks, cassettes, and patching setups, this cable supports scalability for growing fiber networks and straightforward migration between 10G, 40G, and 100G infrastructure. The 12-fiber format enables high-density connectivity while reducing overall cable count for cleaner, more efficient installations.
